ABB 1SCA120566R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA120566R1001
Quick Summary
Switch-Disconnectors from ABB provide reliable isolation for three-pole mains in industrial control panels. Users wrestle with complex wiring, limited accessibility, and costly downtime; this base-mounted, side-operated design streamlines installation and reduces service time. With IEC 60947-3 compliance, CE Declaration of Conformity, and RoHS and TSCA compliance, plus a DNV GL certificate, it supports safe, traceable deployment across demanding environments. The compact footprint, lug terminals, and controlled power losses enable efficient panel layouts, while robust ratings—200 A Ith, 12 kV Uimp, and 1000 V Ui—offer long-term protection for motor drives and automation gear. In practice, it accelerates commissioning, minimizes maintenance costs, and integrates smoothly with ABB EcoSolutions and OT160-250 family to boost uptime and efficiency.
Product Information
Extended Description

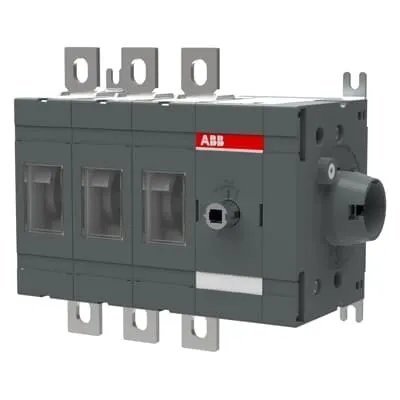

1SCA120566R1001 ABB: 3-pole, side operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
1SCC301068M0204
Mechanical Drawings
OT200-250ES30, dwg-file | OT200-250ES30, dxf-file | OT200ES30.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
181.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82 mm
Product Net Weight
1.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
250 mm | 9.8 in
Package Level 1 Height
155 mm | 6.1 in
Package Level 1 Gross Weight
1.7 kg | 3.7 lb
Package Level 1 EAN
6417019520353
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 30 (Right Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Three-pole, side-operated design for simple, fast disconnection. Benefit: Reduces switchgear downtime and simplifies operator access during maintenance. Application: Control panels and machine automation where rapid isolation is critical. Feature: Base mounting with lug terminals. Benefit: Streamlines wiring, supports compact layouts, and minimizes panel depth while ensuring a secure, vibration-resistant connection. Application: Panel builds with tight spatial constraints and frequent rework. Feature: Electrical ratings—Ith 200 A, Ui 1000 V, Uimp 12 kV, Icm 30 kA, Icw 8 kA. Benefit: Higher protection margin for motors and drives, supporting safe operation across voltages up to 690 V. Application: Heavy-duty automation lines and distribution sections. Feature: Mechanical durability rated at 20,000 cycles. Benefit: Lower maintenance intervals and reduced lifecycle cost in high-switching environments. Application: Conveyor systems, presses, and automated tooling. Feature: Compliance bundle—IEC 60947-3, CE Declaration, RoHS, CMRT, TSCA, EPD, DNV GL certificates. Benefit: Regulatory assurance and sustainable sourcing for regulated markets. Application: Global deployments in manufacturing, food & beverage, and energy sectors.
Get a Quick Quote for a ABB 1SCA120566R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA120566R1001?
Enquire Now
FAQs
Install the device in a base-mount configuration with lug-terminal connections. Ensure orientation follows Top In - Bottom Out or Bottom In - Top Out, and tighten terminals to 15–22 N·m. The handle and shaft are not included, but a terminal bolt kit is provided to simplify wiring and commissioning.
It is a 3P device rated for Ith 200 A, Ui 1000 V, Uimp 12 kV, Icm 30 kA, and Icw 8 kA (1 s). Rated operational voltage is 1000 V, with front protection of IP00. The unit supports 380–415 V, 500 V, and 690 V classes, suitable for industrial distribution and machine automation.
Yes. It carries CE Declaration of Conformity and RoHS compliance per EU directives, along with CMRT, TSCA declarations, EPD, A2L certification, and DNV GL certification, ensuring regulatory alignment and sustainable material sourcing for global deployments.
Absolutely. The 3P, side-operated design with base mounting and lug terminals is optimized for compact control panels and automation gear. With a 200 A rating, 12 kV impulse withstand, and robust mechanical durability, it supports frequent disconnection cycles in conveyors, presses, and automation lines while maintaining safe isolation.
With a mechanical durability rating of 20,000 cycles, the switch-disconnector offers long service life and reduced maintenance costs. The base-mount design and lug terminals simplify field service, and the unit ships with a terminal bolt kit to facilitate reliable, repeatable maintenance checks.
