ABB 1SCA120568R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA120568R1001
Quick Summary
ABB 1SCA120568R1001 switch-disconnectors enable safe main-circuit isolation in industrial controls. Engineers and maintenance teams often battle devices that are slow to install, bulky, or non-compliant with local standards. This family aligns with IEC 60947-3 and includes CE declarations, RoHS and REACH compliance, plus IP00 protection for indoor panel environments. With 4P side-operated operation on a base-mounted envelope, it delivers reliable isolation while simplifying wiring, diagnostics, and field retrofit. The combination of robust electrical performance, clear documentation, and ABB EcoSolutions support helps OEMs reduce commissioning time, minimize downtime, and lower total cost of ownership across panel builds and machine integrations.
Product Information
Extended Description

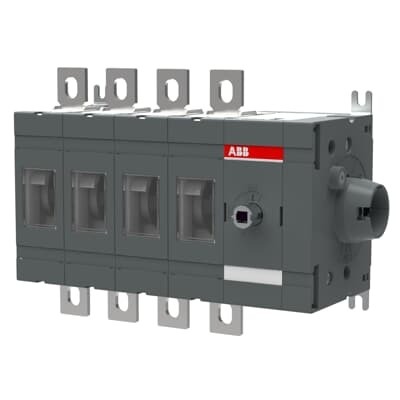

1SCA120568R1001 ABB: 4-pole, side operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
1SCC301068M0204
Mechanical Drawings
OT200-250ES40, dwg-file | OT200-250ES40, dxf-file | OT200ES40.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
216.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82 mm
Product Net Weight
2.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
250 mm | 9.8 in
Package Level 1 Height
155 mm | 6.1 in
Package Level 1 Gross Weight
2.2 kg | 4.9 lb
Package Level 1 EAN
6417019520377
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 40 (Right Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: The 4P switch-disconnector with side-operated action and base mounting reduces footprint, speeds assembly, and improves on-site safety by making status visually clear and wiring straightforward in compact control panels used in packaging, material handling, and process lines. Feature → Business Impact → Application: A 200 A Ie rating across typical industrial voltages enables handling heavy mains loads without compromising safe isolation, supporting conveyors, presses, and pumps while maintaining reliability during peak operation. Feature → Business Impact → Application: High short-circuit capability (I_cm up to 30 kA at 690 V and I_cw 8 kA for 1 s) delivers robust protection for machine tools and line equipment, reducing the risk of collateral damage from faults. Feature → Business Impact → Application: Lug terminals with a defined tightening torque (15–22 N·m) and a included terminal bolt kit minimize wiring errors and installation time, supporting faster commissioning and reduced technician rework on new builds. Feature → Business Impact → Application: Environmental and compliance declarations (RoHS, REACH, CMRT) plus CE and IEC 60947-3 standards simplify procurement, auditing, and regulatory reporting for OEMs and maintenance contracts, ensuring sustainability and traceability across supply chains.
Get a Quick Quote for a ABB 1SCA120568R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA120568R1001?
Enquire Now
FAQs
Installation starts with confirming a base-mount mounting configuration and 4P arrangement. Use lug terminals and tighten to 15–22 N·m per IEC 60947-1/3. Include the terminal bolt kit, verify right-side fourth pole position, and ensure the handle/shaft is not installed if required. Follow the mechanical drawings OT200-250ES40 for exact fitment to minimize misalignment and downtime.
The device is rated for Ie up to 200 A across 380–415 V, 500 V, and 690 V. It features a short-circuit making capacity I_cm of 30 kA (690 V) and a short-time withstand current I_cw of 8 kA for 1 second. It also provides a rated impulse withstand voltage of 12 kV and Ui of 1000 V, aligning with IEC 60947-3.
Yes. The Rated Operational Voltage is 1000 V for the main circuit, and the unit supports up to 690 V in high-current configurations with 200 A Ie. It is designed for indoor control panels with Front IP00 protection, making it suitable for industrial machine protection and panel isolation in environments that meet IEC 60947-3.
The product ships with CE Declaration of Conformity and RoHS/REACH declarations. It also references CMRT (Conflict Minerals Reporting Template) and TSCA, plus EPD documentation via ABB EcoSolutions. An A2L IEC certificate is available for refrigerant-related compliance, and DNV GL certification is noted for specific OT configurations, supporting regulatory and sustainability requirements.
Maintenance benefits include documented disassembly instructions and mechanical drawings (OT8GB catalogue references) to streamline service work. The 20000 mechanical durability cycles support long service life, reducing replacement costs. Availability of data sheets and manuals helps technicians perform timely inspections, while the robust ratings minimize downtime during fault events, contributing to lower total cost of ownership.
