ABB 1SCA120570R1001 Switch - IEC 60947-3
Part Number: 1SCA120570R1001
Quick Summary
ABB 1SCA120570R1001 Switch is a three-pole, base-mounted switch designed for reliable isolation in switchgear and control panels. Engineers often face downtime and safety gaps during servicing, which this device mitigates through a robust, lockable design and straightforward mounting. Key certifications include IEC 60947-3 compliance, CE Declaration of Conformity, and RoHS alignment, with environmental data such as PEI OT160-250 and EPD. The combination of base mounting, side-operated action, and lug terminals supports safer maintenance, faster installations, and traceable compliance. In addition to core protection functionality, it complements standard panel-building workflows and procurement strategies by delivering predictable performance and lifecycle benefits.
Product Information
Extended Description

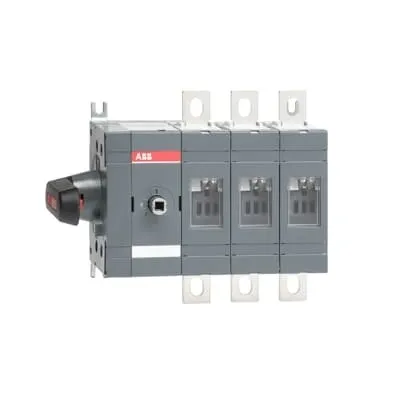

1SCA120570R1001 ABB: 3-pole, side operated, base mounted switch-diconnector with black direct mount handle, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
1SCC301068M0204
Mechanical Drawings
OT200-250ES03K, dwg-file | OT200-250ES03K, dxf-file | OT200ES03K.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
198.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82 mm
Product Net Weight
1.6 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
250 mm | 9.8 in
Package Level 1 Height
155 mm | 6.1 in
Package Level 1 Gross Weight
1.8 kg | 3.9 lb
Package Level 1 EAN
6417019520391
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Direct mounted pistol type handle
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Conditional Short-Circuit Current (Inc)
(315 A fuse, 500 V) 100 kA | (355 A fuse, 690 V) 80 kA | (250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
No certification needed
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3601474
Feature: Three-pole, side-operated design provides complete isolation and easy access for servicing. Business Impact: Minimizes misoperation risk and reduces maintenance time, improving plant safety and uptime. Application: Ideal for internal switchgear menus and control panels where quick actuation is required. Feature: Base mounting with a direct-mounted pistol-type handle supports compact, vibration-resistant installation. Business Impact: Simplifies OEM assembly and field retrofits while improving operator ergonomics. Application: Panel builders seeking reliable, space-efficient isolation solutions. Feature: 200 A conventional free-air thermal current ( Ith ) and 200 A rated operational current ( Ie ) enable consistent performance across common industrial loads. Business Impact: Ensures margin for motor loads and feeders, reducing the need for oversizing. Application: Medium-voltage feeders and control circuits in manufacturing lines. Feature: Rated insulation voltage of 1000 V and impulse withstand of 12 kV provide strong protection margins. Business Impact: Meets stringent safety standards and supports multi-voltage configurations. Application: Critical isolation in mixed- voltage switchgear. Feature: Lockable mechanism and accessible handle color (Black) support safe lockout/tagout procedures. Business Impact: Enhances compliance with safety programs and reduces accidental energizing. Application: Maintenance work and commissioning activities. Feature: Terminal lug connections with tightening torque 15–22 N·m offer secure, repeatable terminations. Business Impact: Improves electrical reliability and reduces connection failures. Application: Field and factory wiring of 3P switch-disconnectors. Feature: 3P configuration with top-in, bottom-out terminal arrangement facilitates flexible wiring layouts. Business Impact: Enables adaptable panel routing and easier fault diagnostics. Application: OEMs designing modular switchgear and spare parts inventories. Feature: Environmental and compliance documentation (CMRT, RoHS, EPD, CE DoC). Business Impact: Streamlines supplier approvals, procurement, and sustainability reporting. Application: Corporate compliance programs and product lifecycle management.
Get a Quick Quote for a ABB 1SCA120570R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA120570R1001?
Enquire Now
FAQs
Install as a 3P, base-mounted device with lug terminals. Torque connections to 15–22 N·m and secure the pistol-type handle in the side-operated position. Use LOTO procedures for safe locking and ensure top-in, bottom-out terminal routing as applicable to your panel layout.
It provides 200 A conventional and operational current across 380–415 V, 500 V, and 690 V classes, with 1000 V rated insulation voltage and 12 kV rated impulse withstand. It supports a 30 kA short-circuit making capacity at 690 V and a 3P configuration for reliable isolation.
Yes. It carries a CE Declaration of Conformity and RoHS information, along with CMRT and EPD documentation for environmental and regulatory compliance, aligning with common industry procurement requirements.
The front protection rating is IP00 with Pollution Degree 3, indicating suitability for indoor or well-protected enclosures rather than exposed outdoor usage. For outdoor applications, mount within a properly rated enclosure and consider additional protection as needed.
With up to 20,000 mechanical operating cycles and a robust base-mount design, it offers predictable lifecycle performance, lower replacement frequency, and reduced maintenance downtime, contributing to lower total cost of ownership in industrial environments.
