ABB 1SCA120606R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA120606R1001
Quick Summary
ABB 1SCA120606R1001 switch-disconnector isolates three-phase circuits safely in industrial control panels. This 3-pole, front-operated device is designed for base mounting with a robust black IP65 handle and shaft, enabling quick operation in demanding environments. Operators often struggle with unreliable isolation during maintenance or in dusty facilities; this model emphasizes safe locking, clear handling, and mechanical durability to reduce downtime. It carries critical certifications and declarations, including IEC 60947-3 compliance, a CE Declaration of Conformity, and RoHS/REACH disclosures, along with DNV GL certification and SCIP data. By combining reliable performance with straightforward wiring and installation, it delivers consistent safety, easier serviceability, and lower lifecycle costs for motor control and power distribution setups.
Product Information
Extended Description

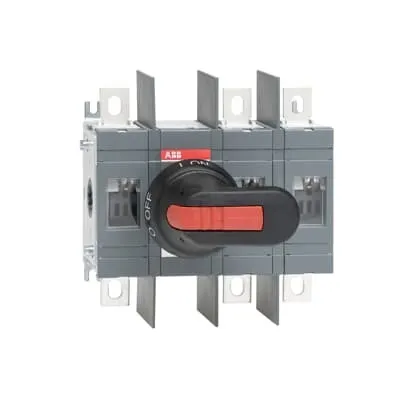

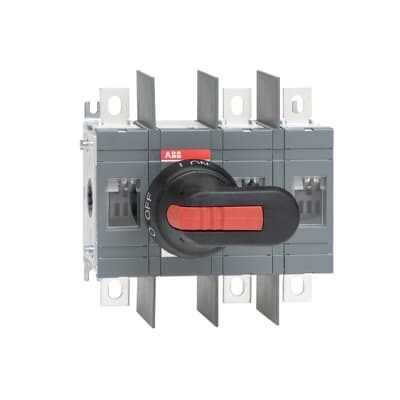

1SCA120606R1001 ABB: 3-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, wide phase distance, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
ccc12ef2-c94a-4e7c-b4ad-aba52af6fa8d Finland (FI)
Simplified SCIP
09cd6325-4d12-43e0-bef5-bb2730095dda Germany (DE) | 9a56a25f-0b0b-4bf6-865f-de1785731562 Belgium (BE) | 09e6f58d-e007-472a-8810-a5cab78f8a50 Poland (PL) | 4260967a-ed6a-4a5b-9fb3-54259f408cf4 Spain (ES) | 5586711d-da7f-4cfe-8f7c-0178266b1759 Poland (PL) | 7928ccec-1154-421e-929d-edd7834cbf9b Czech Republic (CZ) | 6110fd11-ad04-4fd0-92e4-06ee3e1acf8a Poland (PL) | d7860ab8-dc47-4496-a9cf-4f44f8731f8f Bulgaria (BG) | 4645df35-4c26-443b-8d56-ddd0dd2d826d Sweden (SE) | 26c2ac68-2344-4bec-a280-ab7a59784d35 Belgium (BE) | 5ded55ae-e1de-4c71-9e33-2e3af5308476 Germany (DE) | a2b45d5a-ba23-45d0-b043-2182c0764e5f France (FR) | 43743098-c69b-464c-9eba-30166bd16b6b Hungary (HU) | f697cc0e-30f8-4f6c-b8ad-0b3eb515096f Germany (DE) | 4f919ede-b93b-444c-8027-bfec8c4af94d Denmark (DK) | a59471da-674f-42eb-bbaa-5530197aa583 France (FR) | 1dec3030-9270-406e-821d-71801d81c6dd Italy (IT) | b1f2a50a-813b-4338-b9c0-c4a1e937f3d6 Hungary (HU) | a404a15e-6051-4253-adbe-53892209b120 Netherlands (NL) | 5c276920-3c4a-4898-897f-8e0ab2cbfdab Estonia (EE) | 3b396331-9010-448c-8cf2-3e04bf905cc5 Norway (NO) | 17a09e27-a456-44be-b828-9503137e21c4 Sweden (SE) | e7f8283d-c7e0-493e-a3b5-41e7dda0e5c8 Germany (DE) | 07c14fc0-dbf4-42fe-b51a-ba01ff888c6c Croatia (HR) | 60319bb7-9a22-4d14-9f00-03ae8cd2772c Greece (GR) | 908e5f28-6e86-49cf-a1dd-373d6ba9bf46 Portugal (PT) | bcff1913-2b82-4353-a3e1-07f06627ad89 Germany (DE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200-250E12W, dwg-file | OT200-250E12W, dxf-file
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
174.5 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.4 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm | 7.5 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
110 mm | 4.3 in
Package Level 1 Gross Weight
1.6 kg | 3.5 lb
Package Level 1 EAN
6417019519913
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Distance Between Phases
Wide phase distance
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Conditional Short-Circuit Current (Inc)
(315 A fuse, 500 V) 100 kA | (355 A fuse, 690 V) 80 kA | (250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
Wide phase distance
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism Between the Poles | 12 (Between the Poles)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
No certification needed
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3601370
Feature: 3P front-operated design with base mounting. Business Impact: simplifies field wiring and panel installation, enabling rapid commissioning and safer lever operation. Application: ideal for motor control centers and control panels in manufacturing lines. Feature: 200 A Ie, Ui up to 1000 V, and Icm up to 30 kA at 690 V. Business Impact: supports safe isolation of medium to high power equipment with strong fault withstand, reducing time to restore service. Application: control and protection for conveyors, pumps, and presses in automation lines. Feature: Lug terminals with terminal bolt kit and tightening torque 15–22 N·m. Business Impact: ensures secure, code-compliant terminations and repeatable assembly; lowers wiring errors. Application: field wiring in compact spaces with strict torque requirements. Feature: Lockable mechanism and mechanical durability of 20000 cycles; wide phase distance. Business Impact: enhances operator safety and minimizes maintenance cycles; improves lifecycle cost. Application: frequent operation scenarios in automated lines with high cycle counts. Feature: Environmental and compliance data including RoHS/REACH, SCIP, EPD, and CE declarations. Business Impact: supports regulatory compliance, sustainability reporting, and supplier risk management. Application: product selection for ISO 14001-aligned facilities and supply-chain due diligence.
