ABB 1SCA121570R1001 Terminal Shroud - RoHS Status
Part Number: 1SCA121570R1001
Quick Summary
ABB 1SCA121570R1001 Terminal Shroud protects OSS160GG3LS switchgear assemblies in control panels. It helps tame wiring clutter and improve insulation integrity in tight panel spaces. This part carries RoHS compliance, REACH declarations, and CMRT documentation for global procurement. Snap-on mounting and LS functionality enable fast installation, reduce field wiring errors, and simplify spare-parts compatibility across critical automation applications. Originating from Finland, its precise dimensions—122 mm wide, 99 mm high, and 99.9 mm deep—support predictable enclosure layouts. At 0.12 kg, it suits scalable, cost-conscious panel designs without compromising mechanical robustness.
Product Information
Extended Description

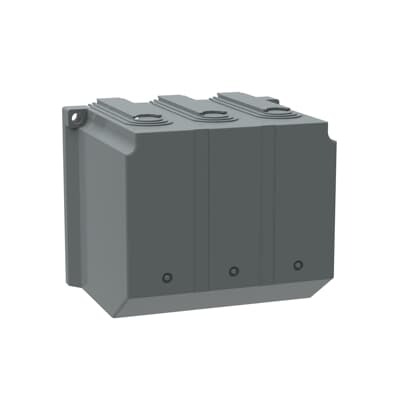

1SCA121570R1001 ABB: OSS160GG3LS TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS100G-160G
Mechanical Drawings
OSS160GG3LS.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
122 mm
Product Net Height
99 mm
Product Net Depth / Length
99.9 mm
Product Net Weight
0.12 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
120 mm
Package Level 1 Depth / Length
150 mm
Package Level 1 Height
120 mm
Package Level 1 Gross Weight
0.128 kg
Package Level 1 EAN
6417019526836
Mounting Type
Snap-on mounting
Special Functions
LS
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Snap-on mounting delivers rapid field installation with exact alignment, reducing labour time and miswiring risk. This terminal shroud integrates seamlessly with OSS160GG3LS assemblies, preserving enclosure integrity while allowing consistent spacing in dense control panels. In practice, engineers gain repeatable mounting tolerances and straightforward component replacement during maintenance in process industries. Material compliance features play a critical governance role. RoHS status, REACH declaration, and CMRT documentation simplify supplier qualification and regulatory filings, supporting global procurement programs and customer audits. The module's Finnish origin and packaging data also help traceability for serialized assets. Dimensions and weight influence enclosure layout and cabinet density. With a net width of 122 mm, height 99 mm, and depth 99.9 mm, at 0.12 kg, the shroud fits compact panels without adding excessive mass. The 1-piece minimum order and compact packaging (box 1 piece, 120 x 150 x 120 mm) streamline warehousing and shipping. Reliability is enhanced by dedicated LS functionality, designed for safety-critical control and easier spares provisioning. The snap-on design minimizes installation errors and allows quick upgrades in field-replaceable assemblies. Compliance, easy logistics, and robust mechanical compatibility translate into measurable ROI through reduced downtime and faster changeouts in electrical protection and circuit-control applications. Overall, this ABB solution supports industrial automation environments requiring precise panel protection, traceable compliance, and efficient maintenance workflows.
