ABB 1SCA122710R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA122710R1001
Quick Summary
ABB 1SCA122710R1001 Switch-Disconnectors provide reliable front-operated isolation for 2-pole power circuits in industrial control panels. This design minimizes downtime and safety risks during maintenance by enabling quick, lockable isolation and clear, positive disengagement. Key certifications and standards include IEC 60947-3, CE Declaration of Conformity, and RoHS compliance, reflecting compliance across global markets. The base-mounted construction, robust mechanical interlock, and a compact footprint deliver consistent performance in space-constrained cabinets, while the 2P configuration supports scalable motor and feeder isolation. For engineers and procurement teams, this device blends rugged reliability with compliance-driven design to reduce lifecycle costs and improve system uptime.
Product Information
Extended Description

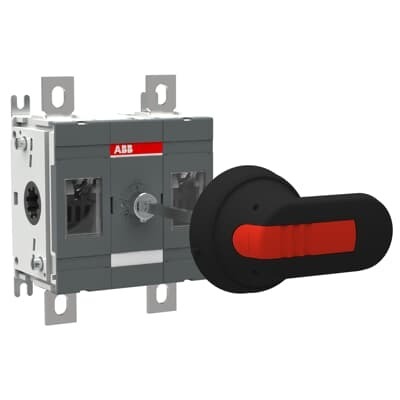

1SCA122710R1001 ABB: 2-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
bbd824a8-a2fb-41bc-be0e-24ec9b8d8b77 Finland (FI)
Simplified SCIP
02c16799-366e-45ed-9499-6c29654a8644 Germany (DE) | c99c4056-2105-4291-8567-d441be66da3d Czech Republic (CZ) | 4ee9e857-349c-40b5-9d1f-690b92ba45a9 Poland (PL) | 1a162868-cf43-4dae-8e16-7ecbc992bae5 Portugal (PT) | 1eb1350a-b5c0-4631-a6e2-bdaa294b9668 Sweden (SE) | 8931126f-feb4-4b3c-8dd8-b46d1c8166d7 Germany (DE) | c16bc02d-dbaf-4de3-abb7-17dc50a7c065 Germany (DE) | 3c0ad1bc-90d8-43da-af65-a8c9207e71c5 Estonia (EE) | 2c8356ec-66ec-46ee-9b2d-41f55b0bb22e Denmark (DK) | 468245e9-7a6c-4d9f-b299-2f4380e77d46 France (FR) | f1868352-db26-4b17-ba85-c5427b968994 Poland (PL) | 068222c6-213c-44c8-9354-1ce200d051f3 Hungary (HU) | be0823a5-3abf-483c-bdb9-612397ae852d France (FR) | 8cdc13fc-b0c3-4678-9380-5b6ee5ffb021 Belgium (BE) | 3767b2c4-ad89-4d86-b916-5ed96f0aa5d3 Italy (IT) | 982e232e-dcb0-4bbd-8ec6-136538168a45 Germany (DE) | bc5c5b1f-f157-4f2a-bf4d-4c1e025b75ab Netherlands (NL) | dba828c2-8c3d-4572-a06a-1aa48f51c76b Hungary (HU) | 2da4a7a9-1952-4e14-bf42-5b611d921099 Belgium (BE) | 42e20952-2bb6-4f17-8a8b-21d349a67c01 Sweden (SE) | 6530bb9a-8992-4e8f-88b5-aae0a0b19eac Norway (NO) | 09ee4d44-0f8c-4157-97df-8481a6fdcbbc Croatia (HR) | 3e8b59fa-b6ba-4fad-a8cb-ad0ddca4ca11 Germany (DE) | c78b03d4-a3fd-4f01-ae48-62f0a1dc78d2 Spain (ES) | cabfb976-a39e-4be2-bbda-147910cbb93d Poland (PL) | 426c17a5-c750-4926-95be-6e8c88a0bf48 Greece (GR) | b000e0da-5529-47fa-8fa2-af7ff0d2c833 Bulgaria (BG)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200...OT250E11, dwg-file | OT200...OT250E11, dxf-file | OT200-250E11.stp | OT200-250E11.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
115.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.12 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm
Package Level 1 Depth / Length
145 mm
Package Level 1 Height
190 mm
Package Level 1 Gross Weight
1.334 kg
Package Level 1 EAN
6417019536323
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
2P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A | (1000 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism Between the Poles | 11 (Between the Poles)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: 2-pole, front-operated, base-mounted switch-disconnector enables fast, controlled isolation with a clearly accessible handle, reducing maintenance time and boosting operator safety in machine control panels. Application: panel installations where quick isolation is essential for service Windows and safety protocols. Feature → Business Impact → Application: Lockable mechanism provides compelling Lockout/Tagout (LOTO) compliance, minimizing accidental re-energization during maintenance and supporting site safety programs. Application: critical equipment servicing in manufacturing lines and packaging systems. Feature → Business Impact → Application: 200 A Ie rated operational current across multiple voltages (380–415 V, 500 V, 690 V, 1000 V) delivers a versatile solution for medium- to high-power loads without oversizing hardware. Application: motor drives, conveyors, and robotic cells. Feature → Business Impact → Application: 12 kV impulse withstand and 1000 V insulation enable reliable protection in demanding electrical networks, reducing insulation failures and extending service life. Application: power distribution in control rooms and switchboards. Feature → Business Impact → Application: high short-circuit and short-time withstand ratings (Icm 30 kA, Icw 8 kA for 1 s) improve system resilience, enabling safer, faster isolation during fault events. Application: critical line isolation in heavy industry. Feature → Business Impact → Application: compact dimensions (115.5 mm W x 150 mm H x 82.5 mm D) and base-mount design simplify retrofits and new builds, freeing space for cables and terminations. Application: OEM assemblies and retrofit projects. Feature → Business Impact → Application: robust Lug terminals and 15–22 N·m tightening torque ensure reliable, vibration-tolerant connections, decreasing contact resistance and maintenance needs. Application: high-vibration environments like packaging and material handling. This product line also aligns with ETIM, RoHS, and SCIP compliance to support procurement workflows and sustainability reporting, while the 2P front-operated mechanism improves operability in narrow panels and reduces ergonomic strain for operators.
