ABB 1SCA123551R1001 By-Pass Switch - IP20 Front
Part Number: 1SCA123551R1001
Quick Summary
ABB 1SCA123551R1001 By-Pass Switch enables fast, reliable bypass operation in industrial switchgear applications. Engineers often struggle with safe manual operation and padlockable control that prevents accidental energization during maintenance. This device carries a CE Declaration of Conformity, RoHS and Reach declarations, and a robust Front IP20 protection rating to support safe installation in EU and international environments. With 3P configuration and base mounting, it integrates with standard electrical protection and circuit control systems, delivering scalable protection and streamlined maintenance. Its compact footprint and documented torque, terminal types, and operating modes help you reduce installation time and total cost of ownership.
Product Information
Extended Description

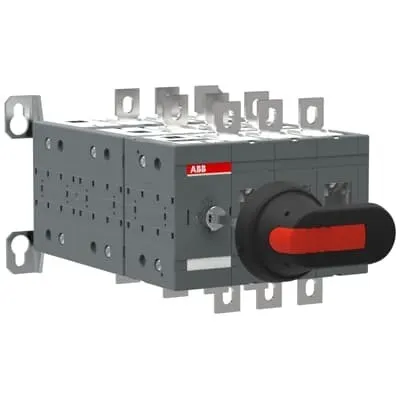

1SCA123551R1001 ABB: Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
By-pass and transfer switches OT_Y
Degree of Protection
Front IP20
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
194 mm | 7.64 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
236 mm | 9.29 in
Product Net Weight
5.09 kg | 11.22 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
175 mm | 6.89 in
Package Level 1 Depth / Length
360 mm | 14.17 in
Package Level 1 Height
350 mm | 13.78 in
Package Level 1 Gross Weight
5.6 kg | 12.35 lb
Package Level 1 EAN
6417019543352
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 90 kW | (500 V) 110 kW | (690 V) 160 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160-250_Y
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
3P configuration with 160 A rated current and 1000 V insulation supports heavy-duty power distribution in industrial switchgear. This combination minimizes the number of devices required in multi-pole assemblies, reducing panel footprint and wiring complexity while maintaining safe switching performance. The padlockable 0-position feature and door interlock in I and II positions protect personnel during maintenance, enabling compliant lockout/tagout practices and reducing the risk of accidental energization. The included black IP65 pistol-type handle with a shaft extension provides smooth manual operation, while the snap-on design allows quick removal for padlocking at the designated position, improving maintenance efficiency and uptime. Base mounting and screw-terminal connectivity simplify installation and future servicing, with a clear path for inspections and fault tracing. The device’s RoHS/Reach/CMRT material declarations support regulatory compliance and sustainability programs, while the IP20 front protection rating keeps the control interface protected in typical cabinet environments. Designed for compatibility with standard switchgear architectures, it reduces engineering time for 3P bypass and transfer configurations and supports scalable deployment in motor control centers and distribution panels. Power loss is limited to 2.4 W per pole under rated conditions, helping to minimize cooling requirements and energy use in dense panels. The device also features a standard top-in, bottom-out (or bottom-in, top-out) line-terminal arrangement, aiding straightforward wiring and inspection during commissioning. The combination of 3P operation, 1000 V rated insulation, and robust mechanical interlock provides a reliable solution for preventive maintenance, downtime reduction, and long-term total cost of ownership improvements.
Get a Quick Quote for a ABB 1SCA123551R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA123551R1001?
Enquire Now
FAQs
Install the unit using base mounting with proper alignment for Top In – Bottom Out or Bottom In – Top Out configurations. Connect via screw terminals and tighten to 15–22 N·m per IEC 60947-1. Use the included shaft and handle extension for smooth operation, and remove the extension when you padlock the base handle to ensure a secure lockout.
The switch supports 160 A operating current across 380–415 V, 500 V, and 690 V categories, with a rated insulation voltage of 1000 V and a rated impulse withstand voltage of 12 kV. It delivers 2.4 W per pole in loss at rated conditions, enabling predictable thermal performance and compact cooling requirements in dense switchgear assemblies.
Yes. The product carries a CE Declaration of Conformity and RoHS/Reach declarations for AC switches and fusegear, along with CMRT documentation. These certifications support regulatory compliance in EU and global markets and help simplify supplier qualification and risk management for regulated deployments.
Yes. The 0-position padlockable feature is specifically designed for lockout/tagout applications, and the door interlock engages in I and II positions as well as when padlocked. This enables secure maintenance procedures, reduces the risk of inadvertent energization, and aligns with standard LOTO practices in industrial environments.
The device provides a durable 3P bypass solution with clearly defined torque specs, screw-terminal connections, and a robust handle system suitable for frequent operation. Its padlockable 0-position feature supports safe maintenance windows, while the compact footprint and base mounting simplify upgrades and retrofits. Overall, this can shorten maintenance cycles, improve uptime, and lower total cost of ownership in motor control centers and distribution panels.
