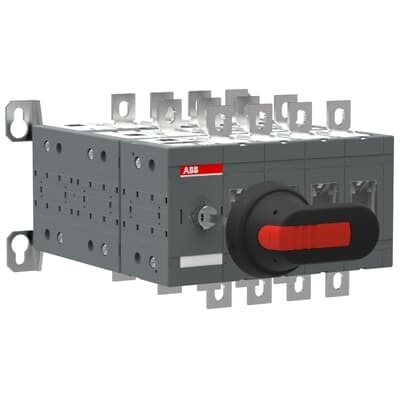

ABB 1SCA123556R1001 By-pass Switch - 4P 160A
Part Number: 1SCA123556R1001
Quick Summary
ABB 1SCA123556R1001 By-pass Switch is designed for safe manual bypass in four-pole switchgear applications. This compact solution supports reliable maintenance workflows by allowing controlled transfer without energizing the circuit. It carries CE conformity with RoHS and REACH declarations, including a Declaration of Conformity, and features Front IP20 protection for demanding environments. The device also offers a 160 A conventional current rating, base mounting, and screw-terminals, aligning with ABB control schemes and standard electrical drawings. For engineers and procurement teams, the switch delivers predictable performance, regulatory compliance, and a straightforward installation path that reduces downtime and improves safety in panel assemblies.
Product Information
Extended Description
1SCA123556R1001 ABB: Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
By-pass and transfer switches OT_Y
Degree of Protection
Front IP20
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
229 mm | 9.02 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
236 mm | 9.29 in
Product Net Weight
7.5 kg | 16.53 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
175 mm
Package Level 1 Depth / Length
360 mm
Package Level 1 Height
350 mm
Package Level 1 Gross Weight
7.5 kg
Package Level 1 EAN
6417019543406
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 90 kW | (500 V) 110 kW | (690 V) 160 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160-250_Y
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
