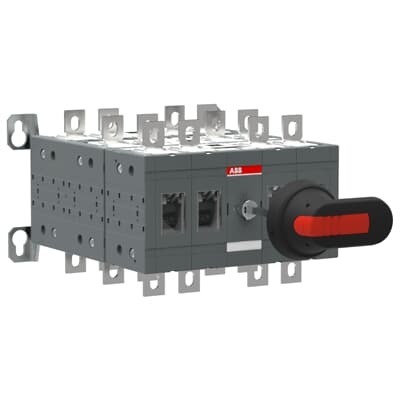

ABB 1SCA123575R1001 By-pass Switch - CE Declaration

Feature → Business Impact → Application: 1) 4P design with 160 A per pole delivers high-current handling for multi-pole applications, reducing the number of components and simplifying wiring, which translates to lower installation time and cost in switchgear assemblies. This enables reliable isolation in distribution boards and motor control centers. 2) Open-transition transition type minimizes arcing during transfer, improving safety and reducing wear on contacts, which contributes to longer service life and lower maintenance costs in process automation. 3) Front IP20 protection and Pollution Degree 3 suitability provide dependable operation in commercial and industrial environments, supporting compliance with enclosure standards while enabling easier retrofit in existing panels. 4) Screw terminals and Base mounting offer straightforward field wiring and stable mechanical mounting, reducing removal/reinstallation risk during panel maintenance. 5) Rated insulation voltage of 1000 V and 12 kV impulse withstand provide a resilient safety margin for diverse low- and medium-voltage installations, increasing design flexibility and asset reliability. 6) RoHS and Reach declarations, along with CMRT, simplify supplier certifications and regulatory reporting for enterprise procurement and compliance teams, supporting auditing and traceability in global supply chains. 7) 2.4 W power loss per pole under rated conditions supports energy-conscious operation and thermal management within compact enclosures, improving overall system efficiency. 8) Handling and shaft included, with defined terminal positions (Top In - Bottom Out or Bottom In - Top Out) and torque range (15–22 N·m) streamline assembly, commissioning, and service work for field technicians and OEMs. 9) 1000 V rated Main Circuit insulation complements safe operation for high-voltage switching applications, enabling broader applicability across industrial automation environments.
