ABB 1SCA126073R1001 Switch-Disconnectors - UL 508
Part Number: 1SCA126073R1001
Quick Summary
ABB 1SCA126073R1001 Switch-Disconnectors provide safe main circuit isolation for industrial control panels. Engineers often confront cramped layouts and varying supply conditions that demand reliable, compact isolation solutions. This family complies with IEC 60947-3, UL 508, and CSA C22.2 No. 14, while Front IP20 protection keeps panels safe in dense cabinet environments. The design supports straightforward field installation and scalable integration in 3P control gear, reducing wiring complexity and downtime. With robust mechanical durability and clear manufacturer guidance, it enables predictable maintenance cycles and lower lifecycle costs for automation projects. Its screw-terminal connection and 0.8 N·m tightening torque streamline setup. Ideal for panel builders, machine builders, and facility integrators.
Product Information
Extended Description

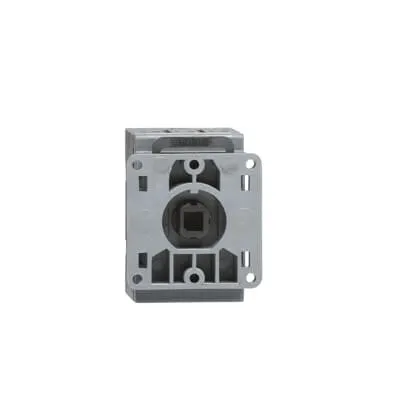

1SCA126073R1001 ABB: OT16FT3/B50 SWITCH-DISCONNECTOR
Environmental Information
PEI OT16-40
Environmental Product Declaration - EPD
PEP, EPD, OT16-40
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Switch Disconnectors OT16-40FT3-4
Mechanical Drawings
OT16-40FT3, dwg-file | OT16-40FT3, dxf-file | OT16-40FT3.igs
Environmental Product Declaration - EPD
PEP, EPD, OT16-40
Degree of Protection
Front IP20
Environmental Information
PEI OT16-40
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
43 mm
Product Net Height
54 mm
Product Net Depth / Length
52 mm
Product Net Weight
5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
230 mm
Package Level 1 Depth / Length
305 mm
Package Level 1 Height
120 mm
Package Level 1 Gross Weight
5.3 kg
Package Level 1 EAN
6417019560724
Cable Cross-Section
Cu 0.75 ... 10 mm²
Conventional Thermal Current (Ithe)
Fully Enclosed 25 A
Degree of Protection
Front IP20
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Number of Poles
3P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 0.3 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 16 A | (500 V) 16 A | (690 V) 16 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 16 A | (500 V) 16 A | (690 V) 10 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 3 kW | (400 ... 415 V) 7.5 kW | (500 V) 7.5 kW | (690 V) 7.5 kW
Rated Operational Voltage
Main Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 0.71 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 0.5 kA
Standards
IEC 60947-3 / UL 508 / CSA C22.2 No. 14
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 0.8 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
20 A
Horsepower Rating UL/CSA
(110 ... 120 V AC) Single Phase 1 Hp | (240 V AC) Single Phase 2 Hp | (440 ... 480 V AC) Single Phase 5 Hp | (550 ... 600 V AC) Single Phase 7.5 Hp | (220 ... 240 V AC) Three Phase 5 Hp | (440 ... 480 V AC) Three Phase 10 Hp | (550 ... 600 V AC) Three Phase 10 Hp
Tightening Torque
acc. IEC 60947-1 0.8 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT16-125
Declaration of Conformity - CE
Declaration of Conformity / OT16F...OT40F, OT16M...OT40M
UL Certificate
cULus certificate OT16-80
Object Classification Code
Q
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
