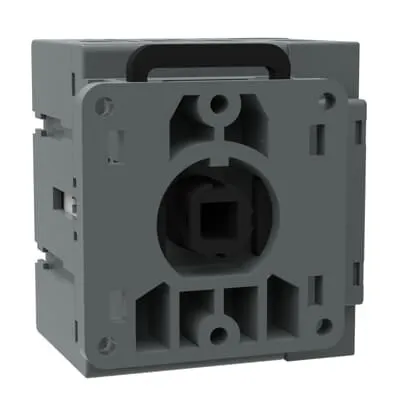

ABB 1SCA127509R1001 Switch-Disconnectors OT16-40 - IEC 60947-3 & UL 508
Part Number: 1SCA127509R1001
Quick Summary
ABB 1SCA127509R1001 is a switch-disconnector designed for safe isolation in electrical distribution panels. Engineers often confront downtime and uncertainty during maintenance, which this device helps minimize with robust mechanical durability and clear operation feedback. Certified to IEC 60947-3 standards with UL 508 compliance and CSA recognition, it also features front IP20 protection for indoor panel installations. By aligning with RoHS, CMRT, and environmental declarations, this solution supports compliant, long-term panel design while delivering predictable performance and reduced lifecycle costs.
Product Information
Extended Description
1SCA127509R1001 ABB: OT16FT4N1/B50 SWITCH-DISCONNECTOR
Environmental Information
PEI OT16-40
Environmental Product Declaration - EPD
PEP, EPD, OT16-40
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Switch Disconnectors OT16-40FT3-4
Mechanical Drawings
OT16-40FT4N1.igs
Environmental Product Declaration - EPD
PEP, EPD, OT16-40
Degree of Protection
Front IP20
Environmental Information
PEI OT16-40
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
48.5 mm
Product Net Height
54 mm
Product Net Depth / Length
52 mm
Product Net Weight
6.3 kg
Package Level 1 Units
box 50 piece
Package Level 1 Width
230 mm
Package Level 1 Depth / Length
305 mm
Package Level 1 Height
120 mm
Package Level 1 Gross Weight
6.5 kg
Package Level 1 EAN
6417019574165
Cable Cross-Section
Cu 0.75 ... 10 mm²
Conventional Thermal Current (Ithe)
Fully Enclosed 25 A
Degree of Protection
Front IP20
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Number of Poles
4P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 0.3 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 16 A | (500 V) 16 A | (690 V) 16 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 16 A | (500 V) 16 A | (690 V) 10 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 3 kW | (400 ... 415 V) 7.5 kW | (500 V) 7.5 kW | (690 V) 7.5 kW
Rated Operational Voltage
Main Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 0.71 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 0.5 kA
Standards
IEC 60947-3 / UL 508 / CSA C22.2 No. 14
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 0.8 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
20 A
Horsepower Rating UL/CSA
(110 ... 120 V AC) Single Phase 1 Hp | (240 V AC) Single Phase 2 Hp | (440 ... 480 V AC) Single Phase 5 Hp | (550 ... 600 V AC) Single Phase 7.5 Hp | (220 ... 240 V AC) Three Phase 5 Hp | (440 ... 480 V AC) Three Phase 10 Hp | (550 ... 600 V AC) Three Phase 10 Hp
Tightening Torque
acc. IEC 60947-1 0.8 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT16-125
Declaration of Conformity - CE
Declaration of Conformity / OT16F...OT40F, OT16M...OT40M
UL Certificate
cULus certificate OT16-80
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Four-pole construction and 750 V main circuit rating → Business Impact: Enables reliable isolation for multi-pole circuits in demanding industrial networks, reducing fault propagation and improving safety. Application: Suitable for distribution boards and motor control centers operating at up to 690 V. Feature: 16 A rated current (AC-22A) with 0.8 N·m tightening torque for screw terminals → Business Impact: Quick, secure wiring with proven electrical performance and minimized torque loss over time. Application: Ideal for control panels with compact wiring layouts and frequent switching. Feature: Mechanical durability rated at 20000 cycles → Business Impact: Longer service life lowers maintenance intervals and total cost of ownership. Application: Heavy-use equipment and automated lines where shutoff cycles are routine. Feature: Front IP20 protection and no handle/shaft included → Business Impact: Safe front-access operation in indoor cabinets while allowing flexible integration with existing handles. Application: OEMs designing compact panel enclosures. Feature: Certifications and declarations (IEC 60947-3, UL 508, CSA) and RoHS/CMRT compliance → Business Impact: Streamlines approval processes and ensures regulatory alignment, speeding time-to-market. Application: Machine builders targeting global markets with strict compliance needs.
Get a Quick Quote for a ABB 1SCA127509R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA127509R1001?
Enquire Now
FAQs
Install as a four-pole device with screw terminals requiring 0.8 N·m tightening torque. Ensure front IP20 protection is maintained and note that the handle and shaft are not included, so plan for compatible mounting hardware or accessories. Mechanical drawings OT16-40FT4N1.igs are available for reference.
Rated main circuit voltage is up to 750 V with a rated operational current of 16 A (AC-22A). It supports voltages from 380–415 V and up to 690 V in AC-22A configurations, with compatible AC-23A ratings at lower currents. It achieves 0.3 W power loss per pole under rated conditions.
It complies with IEC 60947-3, UL 508, and CSA C22.2 No. 14. A CE Declaration of Conformity is available for compliance, and RoHS/CMRT declarations are provided to support material and environmental compliance.
Ideal for distribution panels, motor control centers, and machine feeders where reliable isolation and safe maintenance are required. Its four-pole configuration, IP20 protection, and 16 A current rating align with common industrial control and protection schemes in 380–690 V systems.
It offers up to 20000 mechanical cycles, enabling longer intervals between replacements in high-switching environments. Wiring remains secure due to screw terminals, and standard maintenance practices should verify torque and insulation integrity. RoHS/CMRT and environmental declarations support ongoing compliance during lifecycle management.
