ABB 1SCA129218R1001 Motorized Switch - IEC 60947-3
Part Number: 1SCA129218R1001
Quick Summary
ABB 1SCA129218R1001 Motorized Switch is a motor-operated switch-disconnector for base-mounted control in industrial power distribution. Installing large disconnects can be time-consuming and risky, so this unit integrates a direct-mounted handle and a spare fuse storage clip to streamline maintenance and emergencies. It aligns with IEC 60947-3 and CE declarations, while offering Front IP00 protection for controlled indoor environments. With a 3P design and motor operating voltage of 220–240 V AC, it supports high-current applications and straightforward panel integration. This combination delivers safer commissioning, reduced downtime, and scalable reliability for automation projects in manufacturing, process industries, and energy systems.
Product Information
Extended Description

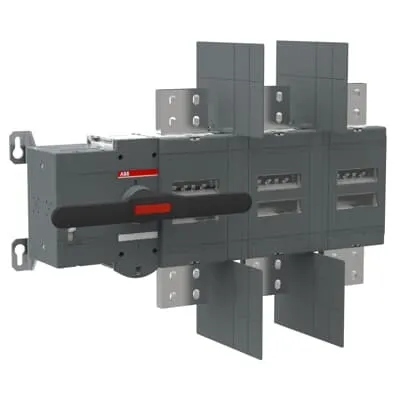

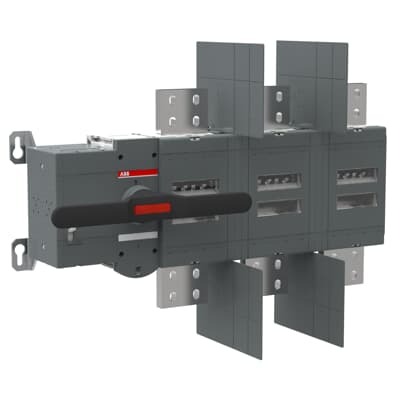

1SCA129218R1001 ABB: 3-pole, motor operated, base mounted switch-diconnector with handle for manual operation, terminal bolt kit, handle and spare fuse storage clip and male connector for control circuit
End Of Life Disassembling Instructions
OTM3200-4000 Disassembly Instructions
Environmental Product Declaration - EPD
PEP, EPD, OTM3200-4000_M_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Motorized switch-disconnectors OTM_
Environmental Product Declaration - EPD
PEP, EPD, OTM3200-4000_M_
Degree of Protection
Front IP00
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
776.5 mm
Product Net Height
410 mm
Product Net Depth / Length
165.5 mm
Product Net Weight
45.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
590 mm
Package Level 1 Depth / Length
210 mm
Package Level 1 Height
790 mm
Package Level 1 Gross Weight
61.5 kg
Package Level 1 EAN
6417019589022
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 4000 A
Degree of Protection
Front IP00
Distance Between Phases
Phase distance 185 mm
Handle Color
Black
Handle Type
Direct mounted handle
Lock Type
Yes
Mechanical Durability
5000
Motor Operational Voltage
220 ... 240 V AC
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out
Power Loss
at Rated Operating Conditions per Pole 120 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 4000 A
Rated Operational Current AC-22B (Ie)
(380 ... 415 V) 4000 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 176 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 80 kA
Special Functions
Wide phase distance 185
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OTM3200-4000_M230C
UL Certificate
No certification needed
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Three-pole motor-operated switch-disconnector provides complete phase isolation in a single unit, enabling coordinated control of large motors. This reduces manual intervention and enhances safety in panel wiring, while improving startup reliability for motors and drives in manufacturing lines. Integrated manual handle and fuse-storage clip support safer, faster maintenance; technicians can operate and service without removing accessories, minimizing downtime during field service. Motor operational voltage of 220–240 V AC with 4000 A rated current and 12 kV impulse withstand ensures dependable performance in demanding environments, reducing unplanned outages and protecting downstream equipment. Base mounting with top-in, bottom-out terminals and lug terminals simplifies installation, improves cable routing, and shortens commissioning time in control panels. Front protection IP00 and a 185 mm phase distance support safe, compliant layouts in indoor environments, while lockable mechanisms and a 5000-cycle mechanical durability profile provide long-term reliability and security in industrial automation projects.
Get a Quick Quote for a ABB 1SCA129218R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA129218R1001?
Enquire Now
FAQs
Install using the base mounting configuration with lug terminals and top-in, bottom-out wiring. Tighten terminations to 50–75 N·m as specified, ensure the manual handle is accessible, and verify phase spacing of 185 mm. Ensure a safe isolation condition before operation and follow IEC 60947-3 guidelines for proper mechanical and electrical clearance.
Key specs include three-pole configuration (3P), motor operating voltage of 220–240 V AC, main circuit insulation up to 1000 V, and a rated impulse withstand voltage of 12 kV. It supports rated currents up to 4000 A and a short-time withstand current of 80 kA for 1 s, making it suitable for high-power panel applications.
Yes, the device carries a CE declaration of conformity and conforms to IEC 60947-3 for switch-disconnectors. It also adheres to related safety and performance standards used in industrial low-voltage applications, ensuring compliance for control panels and motor-distribution systems.
It features Front IP00 protection suitable for controlled indoor environments with Pollution Degree 3. For harsher environments, additional enclosure protection or conformal coatings may be required, but the unit’s robust mechanical durability (around 5000 cycles) supports reliable operation within its rated application scope.
The integrated manual handle and fuse-storage clip streamline maintenance, while motor operation reduces manual switching effort and improves safety. Its 3P design, lockable mechanism, and high short-circuit and impulse withstand ratings help minimize downtime, extend service intervals, and lower total cost of ownership in automated production lines.
