ABB 1SCA134274R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA134274R1001
Quick Summary
ABB 1SCA134274R1001 switch-disconnector is designed for safe main-circuit isolation in industrial control panels. Engineers often face downtime and documentation gaps during maintenance and lot traceability. This solution aligns with IEC 60947-3 and CE declarations while offering Front IP00 protection, RoHS, CMRT, and TSCA conformity to simplify supplier qualification and international sourcing. The combination of a 3P 160A rating, 1000 V insulation capability, and clearly defined tightening torque supports repeatable installations in production lines, while environmental data and eco-solutions references help procurement meet sustainability targets and improve overall lifecycle costs.
Product Information
Extended Description

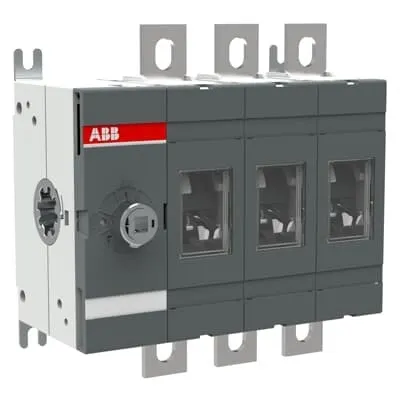

1SCA134274R1001 ABB: OT160EV03/B12 SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200...OT250E03, dwg-file | OT200...OT250E03, dxf-file | OT200-250E03.stp | OT200-250E03.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
145.5 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
13 kg
Package Level 1 Units
box 12 piece
Package Level 1 Width
400 mm
Package Level 1 Depth / Length
435 mm
Package Level 1 Height
170 mm
Package Level 1 Gross Weight
15 kg
Package Level 1 EAN
6417019630922
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Number of Poles
3P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Standards
IEC 60947-3
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
