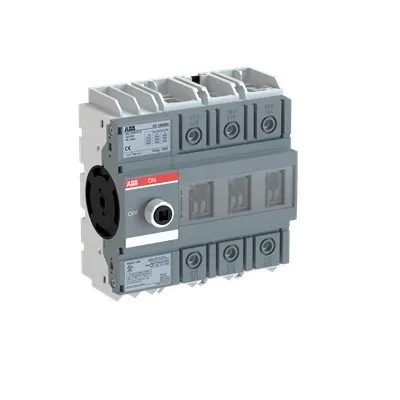

ABB 1SCA135134R1001 Switch-Disconnectors - 3P Front Operated IP20
Part Number: 1SCA135134R1001
Quick Summary
The ABB 1SCA135134R1001 switch-disconnector isolates circuits safely in panel-mounted motor control applications, delivering predictable performance in challenging factory environments. In tight spaces with dense wiring, engineers often struggle with reliable front-access isolation and straightforward maintenance access. It conforms to IEC 60947-3, UL 98, and CSA C22.2 NO.4, and carries CE declarations, supporting global compliance. With base mounting, 3 poles, and front IP20 protection, installation is straightforward and service intervals are easier to manage. Coupled with ABB EcoSolutions data and environmental declarations, it also supports sustainable procurement and traceability in industrial projects.
Product Information
Extended Description
1SCA135134R1001 ABB: 3-pole, front operated, base mounted switch-diconnector with protected clamp terminals, handle and shaft are not included
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G3_model.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
123 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
0.8 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
0.9 kg | 1.9 lb
Package Level 1 EAN
6417019638355
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5293 >> Switch disconnector
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Norway)
4372120
Feature: 3P front-operated design with base mounting → Business Impact: Enables compact, safe isolation in panel assemblies, reducing installation time and improving maintenance access → Application: Motor control panels and switchgear where space is at a premium. Feature: Protected clamp terminals and screw terminal compatibility → Business Impact: Improves wiring reliability and reduces loosening risk under vibration, lowering field failures → Application: Heavy-duty industrial control panels with frequent switching. Feature: IP20 front protection and operating mode Front and side operated → Business Impact: Enhances operator safety and flexibility during commissioning and maintenance → Application: Indoor electrical protection in manufacturing lines. Feature: Mechanical durability rated at 20,000 cycles → Business Impact: Extends service life and lowers total cost of ownership through fewer replacements → Application: Frequent switching duties in automated lines. Feature: Cable cross-section Cu 10–70 mm² and 160 A rated current → Business Impact: Supports versatile wiring options and consistent performance across voltage levels → Application: Power distribution to motors and drives. Feature: Compliance with IEC 60947-3 / UL 98 / CSA C22.2 NO.4 and environmental data → Business Impact: Reduces regulatory risk and supports green procurement with CMRT and EPD data → Application: Global deployment in multinational plants.
Get a Quick Quote for a ABB 1SCA135134R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA135134R1001?
Enquire Now
FAQs
Installation begins with selecting base mounting and ensuring the cabinet supports 3P switching. Use screw terminals for Cu conductors within the 10–70 mm² range, tighten to 6 N·m as per IEC 60947-1, and verify Front IP20 protection once mounted. Remember that the handle and shaft are not included, so plan for a compatible actuation accessory. Confirm line and load orientation as per the 3P configuration and ensure terminals remain protected from moisture and dust during assembly.
Key ratings include 160 A rated operational current (Ie) across voltages up to 1000 V insulation (Ui), 12 kV rated impulse withstand (Uimp), and 12 kA short-circuit making capacity (Icm) at 690 V, with a short-time withstand current (Icw) of 4 kA for 1 s. The device uses screw terminals and supports Cu cables from 10 to 70 mm², suitable for motor control and distribution tasks in panel assemblies.
Yes, it is designed for safe motor control isolation in panels. It conforms to IEC 60947-3, UL 98, and CSA C22.2 NO.4, and carries CE declarations. The product also supports front and side operation with 3 poles and IP20 protection, making it a compliant choice for industrial automation environments that require robust isolation and regulatory alignment.
Ensure proper base mounting and verify the cable cross-section (Cu 10–70 mm²) is securely terminated with 6 N·m torque. Use compatible front-access actuators since the handle/shaft are not included, and ensure environmental conditions align with IP20 protection and Pollution Degree 3. Consider referencing ABB EcoSolutions documentation for disassembly and environmental data to support lifecycle management and CMRT/EPD-based procurement.
The 3P front-operated design reduces installation time and wiring complexity, while the 160 A rating supports high-demand drives with reliable isolation. Mechanical durability of 20,000 cycles lowers replacement frequency, translating to reduced maintenance costs. Combined with CE/UL/CSA compliance and available EPD/CMRT data, the solution supports compliant procurement and predictable uptime in motor control applications.
