ABB 1SCA135136R1001 Switch-Disconnectors OT160G - IEC 60947-3
Part Number: 1SCA135136R1001
Quick Summary
ABB 1SCA135136R1001 Switch-Disconnectors OT160G provide reliable isolation for three-phase power distribution in control panels. Panel builders struggle with front-access reliability and safe shutdown during maintenance, leading to downtime and risk. This device is engineered to IEC 60947-3, UL 98 and CSA C22.2 NO.4 standards, with IP20 protection for front access. Its 3P configuration, 160 A rating and 1000 V insulation support robust isolation in motor feeders and distribution panels, while ABB EcoSolutions enhances lifecycle performance. Combined with compact dimensions and door mounting compatibility, it reduces panel footprint and procurement complexity while delivering dependable electrical protection.
Product Information
Extended Description

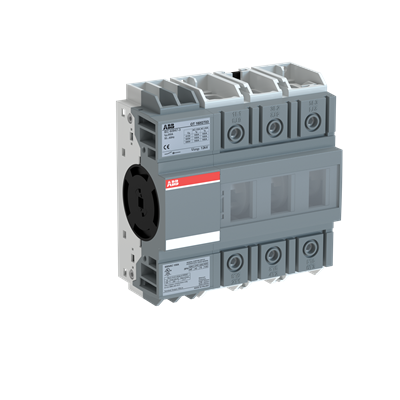

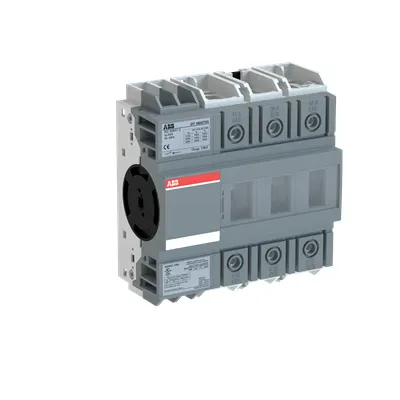

1SCA135136R1001 ABB: 3-pole, front operated, door mounted switch-diconnector with protected clamp terminals, handle and shaft are not included
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160GT3_model.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
123 mm
Product Net Height
130 mm
Product Net Depth / Length
75 mm
Product Net Weight
0.8 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
0.9 kg | 1.9 lb
Package Level 1 EAN
6417019638379
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Door mounting
Number of Poles
3P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5293 >> Switch disconnector
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Norway)
4372126
Feature: The ABB 1SCA135136R1001 OT160G is a 3-pole, front-operated switch-disconnector with door-mount design and protected clamp terminals. Business Impact: This arrangement enables quick, safe isolation during maintenance, reducing risk of accidental energization and improving operator safety. Application: Suitable for control panels and machine enclosures in packaging, textile, and material-handling lines where reliable isolation is critical. Feature: High electrical ratings include 160 A rated current, rated insulation voltage of 1000 V, 12 kV impulse withstand and top-of-line IP20 protection for front access in busy plant environments. Business Impact: Provides robust protection for demanding mains and motor circuits, enabling longer equipment life and fewer fault-induced outages. Application: Motor feeders and distribution panels in manufacturing environments where high reliability is essential. Feature: Compliance and protection features include IP20 front, IEC 60947-3 / UL 98 / CSA C22.2 NO.4 conformity, and screw terminals with 6 N·m torque. Business Impact: Streamlines certification processes and ensures consistent electrical connections, reducing rework and inspection time. Application: Suitable for global installations across North America and Europe with standard connectors and wiring practices. Feature: Mechanical durability rated at 20,000 switching cycles, with door mounting and mechanism available on the end of the switch. Business Impact: Extends service life in high-cycle applications, lowering maintenance costs and spare-part consumption. Application: Automated production lines, packaging machinery, and process equipment requiring frequent operation. Feature: Comprehensive environmental and compliance data are available—EPD, CMRT, RoHS, and DoC—with country of origin listed as Finland. Business Impact: Supports sustainability reporting, supplier qualification, and regulatory diligence across global supply chains. Application: Procurement and compliance teams performing lifecycle analysis and logistics planning.
