ABB 1SCA150185R1001 Switch-Disconnectors - IEC 60947-3 UL 98 Certified
Part Number: 1SCA135138R1001
Quick Summary
ABB 1SCA150185R1001 switch-disconnector is a robust three-pole isolation device designed for industrial control panels and motor circuits. It helps prevent accidental energization during maintenance, reducing risk and downtime. Key certifications such as IEC 60947-3, UL 98/CSA, and CE declarations underpin its global deployability and safety assurance. With IP20 front protection and base mounting for straightforward installation, it integrates cleanly into compact switchgear. The device supports screw termination and a reliable 160 A rating, delivering predictable lifecycle costs for panel builders and end users alike.
Product Information
Extended Description

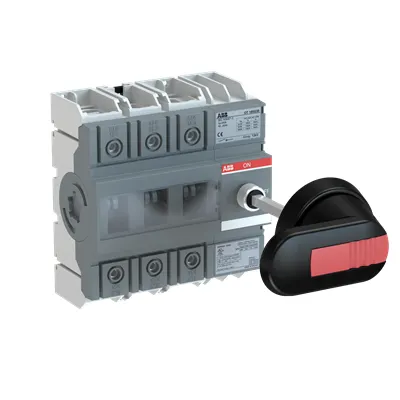

1SCA135138R1001 ABB: 3-pole, front operated, base mounted switch-diconnector with protected clamp terminals and with black IP65 handle and shaft
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
ebec7e97-845d-441b-9250-e6728e5015c8 Finland (FI)
Simplified SCIP
c7431e4c-1ce3-4a41-bfc8-42c8cb0c2c4f Germany (DE) | 5d9f01e1-4af0-40a5-b92c-d652265cbca9 Denmark (DK) | 29e8cfeb-a245-4bb4-bd66-8f7e0e144f43 Belgium (BE) | 90b678b8-d028-4a44-a6b3-15dd93f66ebc France (FR) | 13f12df1-c8ff-45f4-a4fc-649c41f50e76 Hungary (HU) | 91186333-212d-416b-8249-ad759634aa15 Spain (ES) | b80f39b3-40af-43c1-bd5c-bff44e3ec7fb Belgium (BE) | 4450dfb2-610e-4d29-82b6-9ed7dd66e48d Sweden (SE) | 124d3b3a-1747-4235-be89-e05db4385a15 Greece (GR) | 06a2d126-9500-472a-b1fc-cf34202708a8 Bulgaria (BG) | 0a3b9bd9-9f56-4de9-af92-ace336c57172 Portugal (PT) | 12139333-3514-41aa-850a-4c180364eea0 Estonia (EE) | 32361d35-80af-423f-8a55-93c17697886f Hungary (HU) | abe8a96a-b964-401f-b1bc-d8a61607dffc Poland (PL) | 3bb46c68-d6e1-481e-8aed-220890547f9e France (FR) | 6b73b9cf-9e0f-41f8-9080-f1f06030b2d3 Czech Republic (CZ) | cafb220c-b693-41f1-a809-cfb812fda2bd Sweden (SE) | 7a910659-8dcb-4c7a-8913-3a04563fb07c Poland (PL) | 1948f409-e22d-463a-bb13-1069d1743509 Croatia (HR) | d4d56217-35a2-450c-9e60-7068abc0bf5f Germany (DE) | aa1c552b-2e31-4cce-9bda-dd1208ea855e Germany (DE) | 0e29ae93-9f5c-464d-bd4e-92a80a819a8d Netherlands (NL) | 21714790-5371-4b80-9ea6-e4b710d34cfd Italy (IT) | 38917de6-7b28-44e8-b825-6c019487274c Germany (DE) | 4a239961-c965-4d84-9864-0f936849e412 Poland (PL) | 404be6f8-d24a-4713-96e4-f0304b931de4 Norway (NO) | 6c09e0a3-1f98-44cb-b9d1-c7c1e0848d9e Germany (DE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G3_model.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
123 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
0.9 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
1 kg | 2.3 lb
Package Level 1 EAN
6417019638393
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 30 (Right Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: 3P 160 A rating enables safe main-circuit isolation for demanding loads, reducing arc flash potential and enabling compliant maintenance in heavy-industry panels; ideal for machine builders and process automation where reliability matters. Feature → IP20 front protection minimizes dust ingress in indoor control cabinets, increasing service intervals and reducing unplanned downtime; beneficial for food processing lines and packaging equipment. Feature → Screw terminals and base mounting simplify field wiring and retrofit projects, shortening installation times and improving wiring quality in retrofit controls. Feature → Rated insulation voltage up to 1000 V and I cm of 12 kA provide a robust interruption capability for diversified DC/AC feeds; suitable for motor starters and power distribution in industrial plants. Feature → Mechanical durability of 20000 cycles ensures long service life under frequent operation, lowering maintenance costs and extending panel uptime. Feature → Compliance with IEC 60947-3, UL 98, CSA and RoHS/CMRT ensures regulatory alignment and sustainable sourcing, supporting global product rollouts and supplier audits.
