ABB 1SCA135139R1001 Switch-Disconnectors - IP65
Part Number: 1SCA135139R1001
Quick Summary
ABB 1SCA135139R1001 switch-disconnectors provide safe isolation for three-phase power in industrial control panels. This solution addresses the common challenge of delivering reliable isolation under demanding service conditions without compromising equipment availability. It is designed around IEC 60947-3 and UL/CSA listings, with a robust front IP20 protection and an IP65-rated handle that enhances operator safety. The device also carries CE conformity and DNV GL certification in its class, with environmental declarations supporting sustainable procurement. For engineers and procurement teams, this combination translates into easier compliance, reduced risk, and smoother maintenance cycles in high-utilization environments.
Product Information
Extended Description

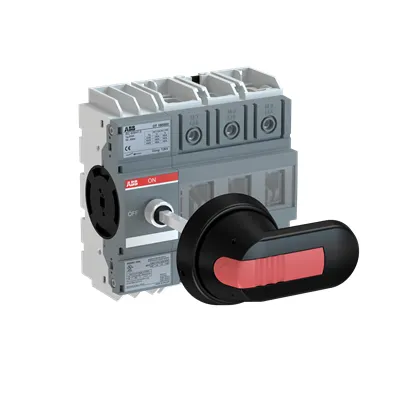

1SCA135139R1001 ABB: 3-pole, front operated, base mounted switch-diconnector with protected clamp terminals and with black IP65 handle and shaft
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
6f064110-8ade-4356-9916-63b327acc3b7 Finland (FI)
Simplified SCIP
9695ceac-9a5e-47a3-9d10-913be99f61f2 Germany (DE) | 8765d64a-1254-4740-b28b-ffd01ce6515e Sweden (SE) | 3681be30-0ecc-4559-922c-3b97a79d0da4 Poland (PL) | b55c5251-02d9-435f-90e2-96ddfb56b519 Poland (PL) | 092dd1c4-c806-46a2-bd5d-4041c5776f1e France (FR) | e4ad0e9c-310a-4370-b58a-e9061e6a7bc7 Estonia (EE) | 12544bfd-5174-4e17-a112-be5ff151b3e8 Bulgaria (BG) | b2d74db4-ac58-4226-97f5-54e578e3be08 Greece (GR) | d6258643-2026-405c-a2d4-f58707d1ac46 Croatia (HR) | f6ed35dc-cfbc-4783-a265-c5cf8d8cd88b Portugal (PT) | 0d3525da-aa66-47e6-9cd9-cc463adeb861 Sweden (SE) | 32dc2de6-cd6e-400c-88f3-7907ffe5f316 Hungary (HU) | 00a80986-0c31-4117-879b-c97b5019ae7b Czech Republic (CZ) | 5ba42181-654d-465d-ad59-eef68bc47e09 Netherlands (NL) | 1bde6823-5682-419b-a3ff-cd201dea689d Germany (DE) | 798c0614-8d5c-4122-82af-01d963ea7f64 Germany (DE) | ce70bfa1-b9e0-4ae5-9535-37b4eaf61b49 Belgium (BE) | 825bde5b-85ec-4c5d-8cf5-5abe0b98f0fa Norway (NO) | 7d786ffd-c696-4ea2-9940-de8c6b33c784 Germany (DE) | df72ae17-3e35-4c10-8169-240c0fae359d Poland (PL) | e6f961a8-7c4e-4a38-91d9-7da31e97aeab Denmark (DK) | 17fa4b90-0c59-4330-8af1-2fecb845eab4 Germany (DE) | ad47b5c2-dead-418f-97d2-d1004114861f Italy (IT) | 7a3eb990-9440-4f07-a1ff-711db106a55c Spain (ES) | b8605eb2-93cc-4a46-8a90-f39401d925eb Belgium (BE) | 6be34c1d-5dd5-49ea-8e37-e833145c84af France (FR) | e328478e-18e3-4cda-b415-18eaef621254 Hungary (HU)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G3_model.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
123 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
0.9 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
1 kg | 2.3 lb
Package Level 1 EAN
6417019638706
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3638769
E-Number (Norway)
4372122
E-Number (Sweden)
3171058
Feature: Three-pole, front-operated, base-mounted design → Business Impact: Simplifies panel wiring and reduces footprint, enabling faster installation and easier service in compact control cabinets → Application: Machine control panels requiring reliable isolation with minimal installation space. Feature: Protected clamp terminals and screw terminals → Business Impact: Improves connection security and reduces the risk of loose wirings during operation, lowering maintenance costs → Application: Industrial switchgear installations with demanding vibration and thermal cycles. Feature: IP65 handle with black shaft → Business Impact: Enhances operator safety and longevity in dusty or damp environments, reducing downtime due to grip or handle degradation → Application: Harsh factory floors and packaging lines needing rugged manual operation. Feature: Cu 10 … 70 mm² cable cross-section → Business Impact: Supports a wide wiring range, decreasing the need for multiple part numbers and simplifying stocking → Application: Power distribution and motor control centers using standardized 70 mm² harnesses. Feature: 3P, 160 A rated current and 1000 V insulation → Business Impact: Enables high-current switching with solid insulation margins, improving fault tolerance and system reliability → Application: Medium-to-high voltage distribution schemes and motor drives. Feature: Compliance with IEC 60947-3 / UL 98 / CSA C22.2 NO.4 and CE → Business Impact: Ensures proven interoperability and regulatory assurance across international projects, reducing qualification time → Application: Global panel manufacturers and integrators targeting multi-region deployments. Feature: Base mounting with mechanical durability of 20000 cycles → Business Impact: Delivers predictable lifecycle performance and lower replacement frequency → Application: Continuous process lines and heavy-use SKUs. Feature: Lockable handle and 3P operation → Business Impact: Enables safe lockout-tagout procedures and repeatable isolation sequences for maintenance → Application: Safety-critical equipment in packaging, plastics, and metals processing. Feature: Environmental and safety documentation (CMRT, RoHS, SCIP) → Business Impact: Supports sustainability reporting and compliance audits, lowering procurement risk → Application: ESG-focused projects and regulated supplier programs.
