ABB 1SCA135140R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA135140R1001
Quick Summary
ABB 1SCA135140R1001 Switch-Disconnectors provide safe, front-operated isolation for 4-pole motor and feeder circuits in industrial control panels. Engineers often face space constraints and downtime when upgrading legacy disconnectors in compact automation environments. The unit carries CE and UL/CSA certifications and ships with an IP20 front protection, with an IP65 handle option for harsher installations. With base mounting, 160 A ratings, and 1000 V insulation, it delivers reliable protection and long-term cost savings for panel builders.
Product Information
Extended Description

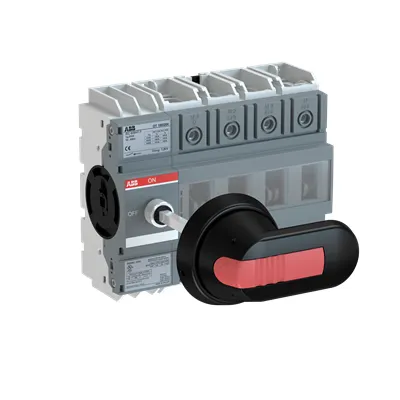

1SCA135140R1001 ABB: 4-pole, front operated, base mounted switch-diconnector with protected clamp terminals and with black IP65 handle and shaft
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
0f3f7427-49c7-4e78-bb73-a737862f1a86 Finland (FI)
Simplified SCIP
8cfe2808-3813-47ee-9599-ad61a92a7550 Germany (DE) | 4f8185e0-8761-43ac-8ccc-84b38a1d3eda Germany (DE) | 592c285a-97df-4fdb-8c52-24551695f425 Sweden (SE) | 048e0e3a-0597-43c8-bab4-a73ba1fe67cc France (FR) | 63b3f780-5dca-431b-84a1-1d63a9a537f2 Poland (PL) | 043838fc-1484-4534-983b-25e1ab3f8936 Czech Republic (CZ) | 5e232ec1-e4b2-43c4-860a-a5c5158da80d Poland (PL) | f5401db0-3789-4b8e-a9b0-05fbdd50d59a Netherlands (NL) | f319acc9-99bd-431e-a92a-fa770fe3ff0b Sweden (SE) | 60b7513f-cb39-4575-a721-df650ff983d1 Bulgaria (BG) | 6b437b08-9ef2-4b76-aeef-21732d5b995c Greece (GR) | f0046096-4968-4bed-b78a-174de38aabe5 Croatia (HR) | dfae7374-f73c-4764-ab36-63b144cc9e33 Portugal (PT) | e64c79d4-e1a4-4506-95dd-2a1e7a0813c3 Estonia (EE) | 88a1b7e0-0a83-4696-8a2a-eac899d341bb Hungary (HU) | f7dfdce6-faca-495d-9969-256f4ef0fd67 Germany (DE) | bad1792b-0f12-40b1-8d58-6eb849a5dbe3 Germany (DE) | f976b8e5-30cf-47db-a890-2d4768259a26 France (FR) | d28d95c6-8215-4a74-8e0f-4223e91c046b Poland (PL) | f02cf994-264f-41c9-8548-f881fbc78872 Italy (IT) | 0f70f750-7dd6-43e8-a755-b22664d29d85 Germany (DE) | 422732c1-3b5e-4341-814d-723fc58bf1a7 Denmark (DK) | f0b9c38b-1996-4345-b7f9-995c5fbab166 Norway (NO) | 61d8de7f-f593-4f75-b1b7-e38d1279c7dc Belgium (BE) | 618592db-06c9-4248-b219-98433bdfc52b Hungary (HU) | 053e969a-98d4-4ef7-abff-948e70911e1e Spain (ES) | f27a448f-f059-492b-8222-9a4df698a392 Belgium (BE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G4_model.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
1.2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
1.3 kg | 2.8 lb
Package Level 1 EAN
6417019638713
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3638770
E-Number (Norway)
4372125
E-Number (Sweden)
3171061
Feature 4-pole, front-operated design enables quick, safe disconnection of all lines in one action, reducing downtime and improving maintenance efficiency in control panels. Benefit Secure clamp terminals and screw terminals provide robust wiring up to 70 mm2 copper, lowering the risk of loose connections and arc faults in demanding environments. Application Ideal for machine control panels and feeder circuits where space is at a premium and reliability is essential. Feature Lockable handle with shaft included and a mechanical durability of 20000 cycles enhances operator safety and extends service intervals. Benefit Base mounting and compact footprint with four poles support straightforward installation in panel enclosures. Application Suitable for 380-415 V and 690 V systems with 1000 V rated insulation, 6 N·m tightening torque, and IEC 60947-3 / UL 98 / CSA C22.2 NO.4 compliant construction. Benefit Comprehensive certifications and EPD/CMRT availability simplify compliance for global deployments. Additional notes describe how 4P geometry supports evenly shared current, aiding reliability in complex load profiles. Installation ease is reinforced by standard base mounting, screw terminaling, and compatibility with Cu 10–70 mm2 cables. The OT160G family provides End Of Life and environmental documentation to support sustainability reporting. Moreover, ABB EcoSolutions resources outline maintenance, disassembly, and RoHS/CMRT declarations for improved asset management. The combination of current capability, mechanical durability, and serviceability shortens commissioning and lowers lifecycle costs. Finally, data sheets and manuals for OT160G enable planning, spare parts identification, and risk assessment aligned with project timelines.
Get a Quick Quote for a ABB 1SCA135140R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA135140R1001?
Enquire Now
FAQs
This 4P switch-disconnector uses base mounting with screw terminals and a 150 mm width footprint, designed for plug-and-play integration into standard control cabinets. It supports Cu conductors from 10 to 70 mm2 and conforms to common panel mounting practices, accelerating installation without additional adaptors.
Key ratings include Ith 160 A, Ie 160 A across 380–415 V, 500 V, and 690 V, Ui 1000 V, Uimp 12 kV, Icm 12 kA. Tightening torque is 6 N·m, and the device supports a 4P configuration with a 4P pole count. It is built to IEC 60947-3 standards and UL/CSA certifications.
Yes. It is rated for 380–415 V and 690 V operation, with Ie values of 160 A and a main circuit insulation of 1000 V. The design supports safe switching in industrial power distribution and machine control applications at these voltages.
The unit carries CE declarations and UL/CSA certifications, plus DNV GL documentation for OT160G configurations in some markets. Certifications ensure compliance across EU and North American markets, while RoHS and SCIP data support environmental and material-restriction requirements for global deployments.
With 20000 mechanical cycles, lockable handle, and secure screw terminals, maintenance downtime is minimized and wiring reliability is improved. The 4P design reduces panel footprint and simplifies servicing, delivering lower lifecycle costs and faster returns on automation investments.
