ABB 1SCA135142R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA135142R1001
Quick Summary
ABB 1SCA135142R1001 is a 4-pole switch-disconnector designed for front-mounted control in industrial switchgear. It addresses maintenance challenges by providing safe, quick isolation to minimize downtime and risk during servicing. This device adheres to IEC 60947-3 standards and UL 98/CSA C22.2 NO.4, with CE declarations and an IP20 front protection rating for reliable panel integration. For OEMs and panel builders, the product combines robust operability with compatible mounting and wiring, delivering predictable performance and reduced lifecycle costs in high-demand environments.
Product Information
Extended Description

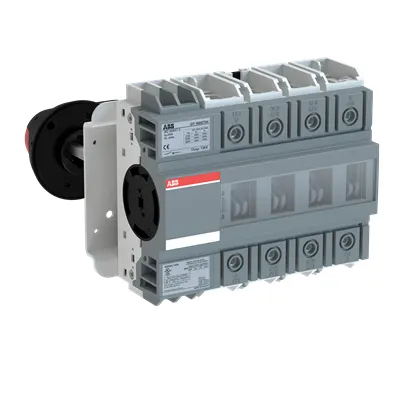

1SCA135142R1001 ABB: 4-pole, front operated, door mounted switch-diconnector with protected clamp terminals and with black IP65 handle and shaft
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160GT4_model.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
130 mm
Product Net Depth / Length
75 mm
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm
Package Level 1 Depth / Length
244 mm
Package Level 1 Height
96 mm
Package Level 1 Gross Weight
1.1 kg
Package Level 1 EAN
6417019638737
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Door mounting
Number of Poles
4P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden)
3171063
Feature: 4P front-operated switch-disconnector with door mounting and protected clamp terminals. Benefit: Safe, accessible isolation with straightforward maintenance access, reducing misoperation and downtime in control panels. Application: Ideal for door-mounted distributions and serviceable switchgear in manufacturing lines. Feature: Screw terminals compatible with Cu 10 ... 70 mm² cables and a 6 N·m tightening torque. Benefit: Reliable, low-torque connections that resist vibration and loosening, improving long-term electrical integrity. Application: Suitable for compact power distribution nodes and machine-internal cabling. Feature: Mechanical durability rated at 20000 operations. Benefit: Lower replacement and maintenance costs due to extended lifecycle in high-use environments. Application: Frequent on/off control in automated lines and packaging equipment. Feature: Rated operational current Ie 160 A, rated insulation voltage 1000 V, and short-circuit capacity up to 100 kA (Icn) at 690 V. Benefit: Handles demanding load profiles with robust fault clearing while maintaining safety margins. Application: Motor control centers and high-current distribution panels. Feature: Standards and compliance package including IEC 60947-3, UL 98, CSA C22.2 NO.4, and CE declarations. Benefit: Simplified procurement with regulatory confidence and streamlined audit readiness. Application: Suitable for multi-region projects requiring cross-certification. Feature: Physical and environmental specs including 4P configuration, front IP20 protection, and door-mounting compatibility. Benefit: Clear installation guidelines reduce field programming errors and support quick commissioning. Application: OEM gear housings, switch panels, and control enclosures in industrial settings.
Get a Quick Quote for a ABB 1SCA135142R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA135142R1001?
Enquire Now
FAQs
The unit is door-mounted with front-operated actuation and uses screw terminals, compatible with Cu conductors in the 10 to 70 mm² range. This configuration supports safe wiring in compact panel layouts and simplifies on-site maintenance.
It delivers a rated operational current Ie of 160 A, rated insulation voltage Ui of 1000 V, and a rated short-circuit making capacity Icm up to 12 kA at 690 V. It also supports a 12 kV rated impulse withstand voltage, suitable for robust fault handling.
Yes. It complies with IEC 60947-3 and UL 98 / CSA C22.2 NO.4, and includes CE declarations. These certifications support regulatory compliance across many regions and simplify multi-site deployment.
Designed for front operation in control panels and distribution boards, it is ideal for motor control, high-current power distribution, and equipment isolations in manufacturing and process industries, where reliable isolation and quick maintenance are critical.
With 20000 mechanical cycles, IP20 protection, and door-mounting capability, the device offers long service life, easier commissioning, and lower maintenance costs in environments with frequent switch operations and regular access needs.
