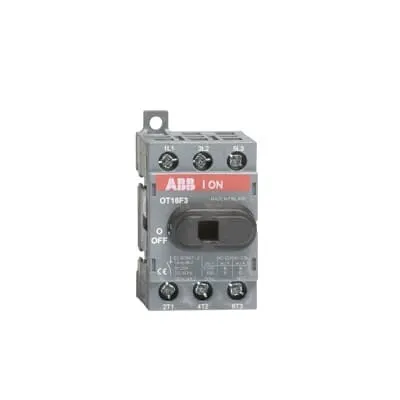

ABB 1SCA135423R1001 OT16F3/BSP50 Switch-Disconnectors - CE Declaration
Part Number: 1SCA135423R1001
Quick Summary
ABB 1SCA135423R1001 OT16F3/BSP50 Switch-Disconnectors are designed for safe, reliable isolation in control panels and automation gear. This compact 3P device helps engineers overcome panel integration challenges by delivering clear electrical ratings and straightforward installation documentation. The product aligns with critical certifications and standards, including CE Declaration of Conformity, RoHS compliance, and IP20 protection for front-facing protection in typical industrial environments. By combining robust electrical performance with accessible installation data and environmental declarations, the solution supports faster commissioning, easier maintenance, and measurable reductions in downtime. In practice, this translates to improved panel reliability, simplified compliance workflows, and lower lifecycle costs for automation projects.
Product Information
Extended Description
1SCA135423R1001 ABB: OT16F3/BSP50 SWITCH-DISCONNECTOR
Environmental Information
PEI OT16-40
Environmental Product Declaration - EPD
PEP, EPD, OT16-40
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Switch Disconnectors OT16-40F3-4, OT16-40F3U, OT16-40F3-TX
Mechanical Drawings
OT16...OT40F3, dwg-file | OT16...OT40F3, dxf-file | OT16-40F3.stp | OT16-40F3.igs
Environmental Product Declaration - EPD
PEP, EPD, OT16-40
Degree of Protection
Front IP20
Environmental Information
PEI OT16-40
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
35 mm
Product Net Height
68 mm
Product Net Depth / Length
56 mm
Product Net Weight
6 kg
Package Level 1 Units
box 50 piece
Package Level 1 Width
260 mm
Package Level 1 Depth / Length
285 mm
Package Level 1 Height
127 mm
Package Level 1 Gross Weight
6.5 kg
Package Level 1 EAN
6417019640419
Cable Cross-Section
Cu 0.75 ... 10 mm²
Conventional Thermal Current (Ithe)
Fully Enclosed 25 A
Degree of Protection
Front IP20
Handle Type
Knob | Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Number of Poles
3P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 0.3 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 16 A | (500 V) 16 A | (690 V) 16 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 16 A | (500 V) 16 A | (690 V) 10 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 3 kW | (400 ... 415 V) 7.5 kW | (500 V) 7.5 kW | (690 V) 7.5 kW
Rated Operational Voltage
Main Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 0.71 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 0.5 kA
Standards
IEC 60947-3 / UL 508 / CSA C22.2 No. 14
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 0.8 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
20 A
Horsepower Rating UL/CSA
(110 ... 120 V AC) Single Phase 1 Hp | (240 V AC) Single Phase 2 Hp | (440 ... 480 V AC) Single Phase 5 Hp | (550 ... 600 V AC) Single Phase 7.5 Hp | (220 ... 240 V AC) Three Phase 5 Hp | (440 ... 480 V AC) Three Phase 10 Hp | (550 ... 600 V AC) Three Phase 10 Hp
Tightening Torque
acc. IEC 60947-1 0.8 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT16-125
Declaration of Conformity - CE
Declaration of Conformity / OT16F...OT40F, OT16M...OT40M
UL Certificate
cULus certificate OT16-80
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
