ABB 1SCA138207R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA138207R1001
Quick Summary

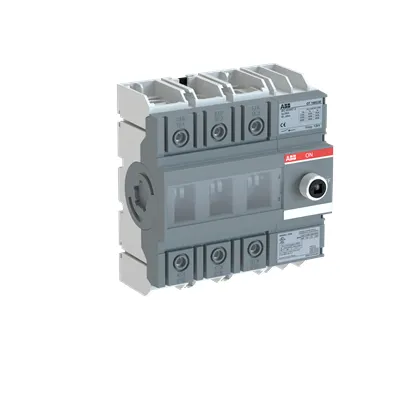

ABB 1SCA138207R1001 is a front-operated 3-pole switch-disconnector for safe isolation in electrical distribution panels. Engineers often face space constraints, wiring complexity, and the need for fast, compliant installations in control rooms. This device aligns with IEC 60947-3, UL 98 and CSA C22.2 NO.4, providing 1000 V insulation and Front IP20 protection for reliable performance in demanding environments. With base mounting and a compact footprint, it enables efficient panel layouts, reduces installation time, and supports robust protection across mixed-voltage applications, while using standard copper conductors (10–70 mm²) for versatile wiring.
Product Information
Extended Description
1SCA138207R1001 ABB: 3-pole, front operated, base mounted switch-diconnector with protected clamp terminals, handle and shaft are not included
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G3_model.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
123 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
0.8 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
0.9 kg | 1.9 lb
Package Level 1 EAN
6417019666174
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 30 (Right Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: 3-pole, front-operated switch-disconnector with base mounting. Benefit: simplifies installation and isolation in compact panels, reducing installation steps and improving safety during commissioning. Application: suitable for electrical distribution boards and machine cabinets where quick access and reliable isolation are needed. Feature: Copper screw terminals supporting Cu 10 … 70 mm² cables. Benefit: enables flexible, high-quality wiring with secure connections, reducing contact resistance and maintenance. Application: feeder and motor-contactor circuits up to 160 A. Feature: IP20 protection on the front and a rated insulation voltage of 1000 V. Benefit: enhances safety in industrial environments and supports compliance across standard voltage ranges, lowering risk of arcing and dielectric failure. Application: control panels subject to dust and incidental contact. Feature: High rated current and fault withstands—Ith 160 A, Icn up to 100 kA (690 V), Uimp 12 kV. Benefit: ensures robust short-circuit handling and reliable sectionalization, reducing downtime and fuse wear. Application: medium to high-load feeders and distribution arms. Feature: Mechanical durability rated at 20000 cycles and a tightening torque of 6 N·m. Benefit: long service life with predictable maintenance intervals and consistent terminal integrity. Application: frequent switching in manufacturing environments. Feature: CE, UL/CSA certifications and IEC 60947-3 compliance. Benefit: simplifies procurement, accelerates audits, and supports regulatory acceptance across global supply chains. Application: panel builders aligned with international standards.
Get a Quick Quote for a ABB 1SCA138207R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA138207R1001?
Enquire Now
FAQs
This unit uses base mounting with screw terminals designed for Cu cables from 10 to 70 mm². Tighten each terminal to 6 N·m as per IEC 60947-1 guidelines, and ensure the handle/shaft is installed per the mechanical diagrams. The product supports Top In - Bottom Out or Bottom In - Top Out configurations for flexible panel wiring.
The switch-disconnector supports 3P operation with a rated current of 160 A across 380–415 V, 500 V and 690 V variants, a rated insulation voltage of 1000 V, and a short-time withstand current (Icw) of 4 kA for 1 s. It provides a rated short-circuit current (Icm) up to 12 kA at 690 V and an impulse withstand of 12 kV.
It complies with IEC 60947-3, UL 98, and CSA C22.2 NO.4, and carries a CE declaration of conformity. The product also has a UL/CSA certification presence and is suitable for compliant integration into global control panels and safety systems.
Yes. With Front IP20 protection and a robust 160 A rating, it provides reliable isolation in typical industrial environments. Its 12 kV impulse withstand and 1000 V insulation support safe operation in fault-prone areas, while the documented mechanical durability helps reduce maintenance interruptions.
Consider the 3P configuration with base mounting, 123 mm width, 130 mm height, and 73 mm depth. Terminal type is screw terminals, with a tightening torque of 6 N·m, and the device accommodates Cu cables 10–70 mm². Ensure the line terminal arrangement follows the Top In - Bottom Out or Bottom In - Top Out pattern for your panel layout.
