ABB 1SCA138209R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA138209R1001
Quick Summary
ABB 1SCA138209R1001 Switch-Disconnectors provide safe, front-operated isolation for 3-pole industrial switchgear. Engineers rely on reliable disconnection to clear faults and enable safe maintenance in tight panel environments. This model addresses common pain points such as difficult wiring access, insufficient clamp protection, and cumbersome operation in confined spaces. It complies with IEC 60947-3 and UL/CSA certifications, completed with CE declarations for global use, and features IP20 protection for front-facing panels. Its base mounting and black direct-mounted handle streamline installation, while the 160 A rating and 12 kV impulse withstand support demanding automation projects. Designed for predictable performance, it helps reduce downtime, improves safety, and supports scalable control panel designs.
Product Information
Extended Description

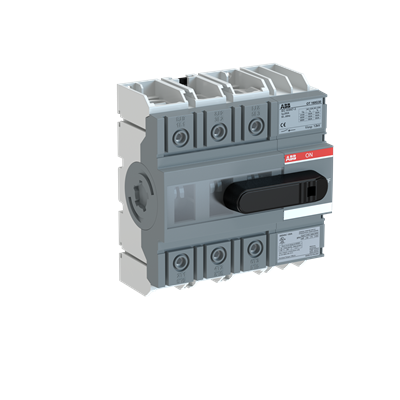

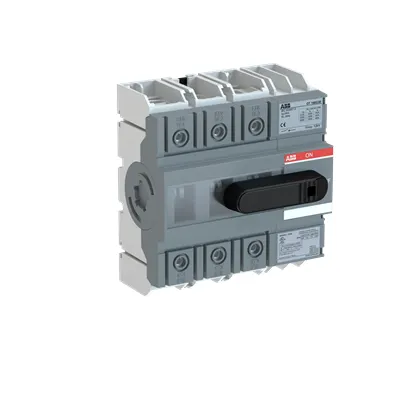

1SCA138209R1001 ABB: 3-pole, front operated, base mounted switch-diconnector with protected clamp terminals and with black direct mount handle
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G30K, dwg-file | OT160G30K, dxf-file | OT160G30K.stp | OT160G30K.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
123 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
0.8 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
0.9 kg | 2 lb
Package Level 1 EAN
6417019666198
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Direct mounted pistol type handle
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 30 (Right Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature:3P front-operated switch-disconnector with base mounting → Business Impact:provides fast, safe isolation in compact panels, reducing maintenance time and exposure to live circuits → Application:control cabinets in packaging, material handling, and process automation. Feature:Protected clamp terminals with screw terminals → Business Impact:safer wiring, reduced risk of loose contacts, and straightforward field servicing → Application:panel wiring in high-density control enclosures. Feature:Direct mounted pistol-style handle with lock → Business Impact:space-efficient operation and tamper-resistant shutdown for hazardous areas → Application:machine safety circuits and emergency-stop assemblies. Feature:Mechanical durability of 20000 cycles → Business Impact:lowers refurbishment costs and extends service intervals in continuous-run installations → Application: OEM lines and manufacturing test benches. Feature:160 A rated operational current and 12 kV impulse withstand → Business Impact:supports motor control and high-energy protection with long-term reliability → Application:industrial drives and 690 V to 415 V distribution networks. Feature:Front IP20 protection and RoHS/REACH/CMRT aligned → Business Impact:ensures safe access and regulatory compliance across global sites → Application: European and North American panel builds with multinational sourcing.
Get a Quick Quote for a ABB 1SCA138209R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA138209R1001?
Enquire Now
FAQs
The device uses base mounting with 3P screw terminals and a 123 mm by 130 mm footprint, compatible with standard DIN-rail and panel layouts. Its 160 A rating and 10 to 70 mm² Cu conductor range support common control-panel wiring, while the front IP20 protection helps prevent incidental contact during maintenance.
Key ratings include 160 A rated current across 380–415 V, 500 V, and 690 V categories, Ui of 1000 V, Uimp of 12 kV, and Ie/Catalog ratings for AC-21A, AC-22A, and AC-23A. It aligns with IEC 60947-3, UL 98, CSA C22.2 NO.4, and carries CE declarations for global compliance.
Yes. The 3P configuration, 160 A rating, and voltage tolerance up to 1000 V make it suitable for motor control centers and branch circuits in industrial automation. With a 12 kV impulse withstand and 4 kA short-time withstand capability, it supports fault tolerance in demanding environments.
It features a lockable handle for lockout-tagout applications, protected clamp terminals, and IP20 front protection. Compliance is ensured through IEC 60947-3, UL/CSA certifications, and CE declarations, along with RoHS, REACH, and CMRT documentation for responsible material and supply-chain management.
Install with base mounting and screw terminals; tighten to 6 N·m per IEC 60947-1. Plan for a 20000-cycle mechanical life, allowing for substantial service intervals. Use Cu conductors 10 to 70 mm², and ensure proper enclosure ingress protection during maintenance to preserve IP20 integrity.
