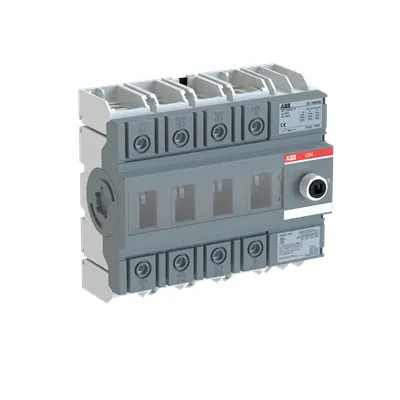

ABB 1SCA138213R1001 Switch-Disconnect - Front IP20
Part Number: 1SCA138213R1001
Quick Summary
ABB 1SCA138213R1001 is a four-pole switch-disconnector designed for safe isolation in electrical panels and motor control applications. Installing this device helps prevent accidental energization during maintenance and simplifies wiring in complex control cabinets. It carries CE conformity and UL/CSA listings with a front IP20 protection rating, assuring compliance in global markets. For engineers and procurement teams, the 4P base-mount design and screw terminals offer robust installation, reliable performance, and a clear path to lifecycle cost reductions in high-demand environments.
Product Information
Extended Description
1SCA138213R1001 ABB: 4-pole, front operated, base mounted switch-diconnector with protected clamp terminals, handle and shaft are not included
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G4_model.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm
Package Level 1 Depth / Length
244 mm
Package Level 1 Height
96 mm
Package Level 1 Gross Weight
1.1 kg
Package Level 1 EAN
6417019666235
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 40 (Right Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature 1: Four poles with front operation and base mounting. Benefit: Enables compact, secure isolation in multi-circuit panels, reducing footprint and simplifying wiring. Application: Motor control centers and distribution boards seeking reliable 4P switch-disconnect functionality. Feature 2: Protected clamp terminals and copper cable compatibility (Cu 10 … 70 mm²). Benefit: Improves wire integrity, reduces risk of loose connections, and supports quick field terminations. Application: Harsh industrial environments requiring durable terminations. Feature 3: Electrical ratings and withstands: 160 A rated current, 1000 V rated insulation, 12 kV impulse withstand. Benefit: Enables safe operation across diverse voltages with high surge protection. Application: IEC 60947-3 compliant control circuits. Feature 4: IP20 front protection and mechanical durability of 20000 cycles. Benefit: Long service life in typical factory environments with minimal maintenance. Application: Routine switching tasks in production lines. Feature 5: Certifications and standards (IEC 60947-3, UL/CSA, CE declarations, DNV GL). Benefit: Smooth cross-border procurement and confident compliance. Application: Global projects needing regulatory alignment and supplier reliability. Feature 6: Additional compatibility and installation advantages (base mounting, screw terminals, 4P configuration, 6 N·m tightening torque). Benefit: Predictable installation costs and reproducible performance across assemblies. Application: Panel builders aiming for repeatable assembly processes across multiple projects.
