ABB 1SCA138214R1001 Switch-Disconnectors - 4P IP20 CE UL/CSA
Part Number: 1SCA138214R1001
Quick Summary
1SCA138214R1001 Switch-Disconnectors deliver reliable isolation for 4-pole control circuits in industrial cabinets and switchgear. In practice, engineers often struggle with cramped panels and slow wiring during installation. This device complies with IEC 60947-3, UL 98, and CSA C22.2 NO.4, while delivering CE declarations and front IP20 protection for global deployments. With 160 A rated current, 1000 V insulation, and copper screw terminals, it blends safety with performance, reducing downtime and simplifying panel design. A robust, base-mounted solution that fits seamlessly into existing control architectures and supports efficient maintenance workflows.
Product Information
Extended Description

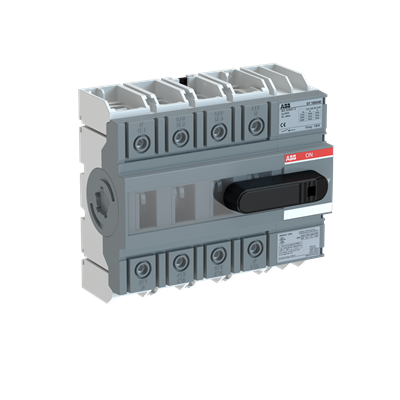

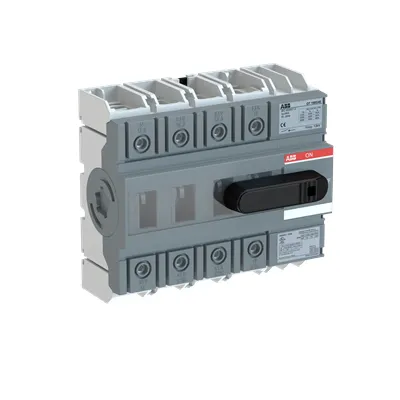

1SCA138214R1001 ABB: 4-pole, front operated, base mounted switch-diconnector with protected clamp terminals and with black direct mount handle
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G40K, dwg-file | OT160G40K, dxf-file | OT160G40K.stp | OT160G40K.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm
Package Level 1 Depth / Length
244 mm
Package Level 1 Height
96 mm
Package Level 1 Gross Weight
1.1 kg
Package Level 1 EAN
6417019666242
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Direct mounted pistol type handle
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 40 (Right Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: The 4-pole, front-operated design enables quick isolation from the front of the panel, reducing maintenance time and improving operator safety in production lines. This translates to measurable productivity gains in high-availability systems such as conveyors and packaging machines, where fast disconnection is critical. Application: Control cabinets and process panels in food & beverage, automotive, and material handling sectors benefit from rapid front access and reliable isolation, even in tight spaces. Feature → Business Impact → Application: Protected clamp terminals and screw terminal connections provide robust, vibration-resistant wiring, lowering contact resistance risks and unscheduled outages. Application: New installations and retrofits in harsh environments gain improved reliability with durable connections and straightforward torque requirements (6 N·m). Feature → Business Impact → Application: 4P configuration with right-side fourth pole ensures consistent switching behavior across phases and simplifies wiring diagrams, cutting commissioning time in motor control centers.
Get a Quick Quote for a ABB 1SCA138214R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA138214R1001?
Enquire Now
FAQs
This 4P switch-disconnector uses screw terminals and supports Cu cables from 10 to 70 mm². It is base-mounted with a front-operated actuation, facilitating easy replacement in standard control cabinets and motor control centers while maintaining a compact footprint for tight panels.
The unit provides 160 A rated operational current with a 1000 V insulation rating. It offers a short-circuit making capacity of 12 kA at 690 V and a short-time withstand current (Icw) of 4 kA for 1 s, supporting reliable isolation in high-demand applications.
Ideal for motor control panels, safety circuits, and process isolation in automation environments. The 4P arrangement, IP20 protection, and front-side operation make it well-suited for compact control cabinets and equipment that require fast, safe disconnection without panel-wide rework.
The device complies with IEC 60947-3, UL 98, and CSA C22.2 NO.4, with a CE declaration. Certifications ensure global acceptance in industrial environments and support regulatory compliance for panel builders and integrators.
Mechanical durability is rated at 20,000 cycles, with protected terminals and straightforward torque (6 N·m). This reduces replacement frequency and maintenance labor, improving total cost of ownership in high-throughput facilities.
