ABB 1SCA138215R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA138215R1001
Quick Summary

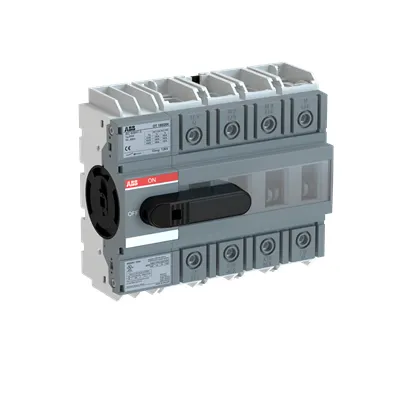

ABB 1SCA138215R1001 is a front-operated 4-pole switch-disconnector for safe isolation in electrical panels. Engineers often contend with space constraints and wiring complexity when adding reliable isolation. This device meets CE conformity, UL/CSA approvals, and IP20 protection, aligned with IEC 60947-3 safety standards. Base mounting and a robust pistol-style handle streamline installation, reducing commissioning time and risk. The 4P design supports simultaneous switching and consistent phase isolation for motors and feeders. With a front-and-side operating mechanism and screw terminals rated for Cu 10–70 mm² conductors, it accommodates common panel wiring layouts. The device delivers documented durability with up to 20,000 mechanical cycles and a 6 N·m tightening torque, delivering reliable performance in challenging environments. In regulated environments, adherence to IEC 60947-3, UL 98, and CSA C22.2 NO.4 simplifies procurement and reduces redesign costs.
Product Information
Extended Description
1SCA138215R1001 ABB: 4-pole, front operated, base mounted switch-diconnector with protected clamp terminals and with black direct mount handle
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G04K.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
1.1 kg | 2.4 lb
Package Level 1 EAN
6417019666259
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Direct mounted pistol type handle
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Norway)
4372124
E-Number (Sweden)
3171059
Feature 1: Four-pole, front-operated switch-disconnector design → Enables complete circuit isolation with a single device, reducing panel footprint and wiring complexity. Business impact: faster installation, easier troubleshooting, and improved panel safety. Application: motor control centers and distribution boards where reliable, visible isolation is critical. Feature 2: Base mounting with screw terminals for Cu 10–70 mm² conductors → Ensures robust, vibration-tolerant terminations and straightforward field wiring. Business impact: lower maintenance costs and fewer field terminations failures. Application: retrofit and new panel builds with diverse conductor sizes. Feature 3: Front IP20 protection and Pollution Degree 3 → Provides safe operation in typical indoor industrial environments. Business impact: enhanced operator safety and reduced risk of contamination-related faults. Application: assembly lines, control panels, and switchgear enclosures. Feature 4: High electrical ratings (Ith 160 A, Ui 1000 V, Uimp 12 kV, Icm 12 kA at 690 V) → Supports demanding applications with strong fault-handling capacities. Business impact: extended service life, fewer interruptions, and improved system resilience. Application: large-control circuits, feeders, and motor loads. Feature 5: Fourth pole position right side and Switched - Simultaneous Function → Simplifies integration in 3-phase-plus-neutral schemes. Business impact: reduces wiring errors and enables synchronized disconnection. Application: multi-pole safety interlocks in complex switchgear. Feature 6: Mechanical durability and torque specification (20,000 cycles; 6 N·m) → Delivers longevity under frequent operation with predictable maintenance. Business impact: lower replacement costs and consistent performance metrics. Application: high-cycle environments and critical control panels. Feature 7: Compliance framework (IEC 60947-3, UL 98, CSA C22.2 NO.4) → Streamlines procurement and regulatory audits. Business impact: faster approvals, reduced design risk, and smoother supplier qualification. Application: regulated industrial installations requiring certified protection and control components.
Get a Quick Quote for a ABB 1SCA138215R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA138215R1001?
Enquire Now
FAQs
ABB 1SCA138215R1001 is designed for direct replacement in IEC 60947-3 compliant switchgear and typical distribution panels. It uses base mounting with a front and side operating mechanism and screw terminals rated for Cu 10–70 mm², tightened to 6 N·m. This ensures straightforward retrofit, minimal rewiring, and consistent electrical clearance in new or legacy installations.
Key ratings include Ith 160 A, Ui 1000 V, Uimp 12 kV, Icm 12 kA at 690 V, Ie 160 A across 380–415 V and 500–690 V ranges, plus a 4P configuration and 6 N·m tightening torque. These specifications support reliable isolation, fault handling, and safe motor control in MCCs and similar switchgear assemblies.
Yes. It features Front IP20 protection and Pollution Degree 3, designed for normal indoor industrial environments. Combined with mechanical durability up to 20,000 cycles and robust handle design, it delivers reliable performance in demanding production lines, packaging, and process control applications while maintaining safety and performance standards.
The device carries CE conformity, UL/CSA recognition, and supports IEC 60947-3 / UL 98 / CSA C22.2 NO.4 standards. It also aligns with related declarations and certificates (such as DNV GL where applicable) and IP20 protection, simplifying regulatory audits and supplier qualification.
With up to 20,000 mechanical cycles and a standardized 6 N·m torque, maintenance intervals are predictable and downtime is minimized. Field wiring is simplified by Cu 10–70 mm² screw terminals, reducing labor costs during upgrades. Overall, the unit improves system reliability, supports quick fault isolation, and lowers lifecycle costs in industrial control environments.
