ABB 1SCA138216R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA138216R1001
Quick Summary
ABB 1SCA138216R1001 Switch-Disconnectors are four-pole front-operated isolation devices designed for safe, reliable disconnection in control panels and motor control centers. They address the common challenge of maintaining quick access and secure isolation during maintenance while keeping wiring straightforward in compact panel spaces. This product aligns with key certifications and standards, including IEC 60947-3 and UL 98, and features CE declarations with IP20 front protection for global applicability. In addition to core safety, the unit supports business value through predictable performance, ease of installation, and compatibility with standard copper cabling and base-mount configurations—ideal for machine builders and panel shops seeking robust, compliant isolation solutions.
Product Information
Extended Description

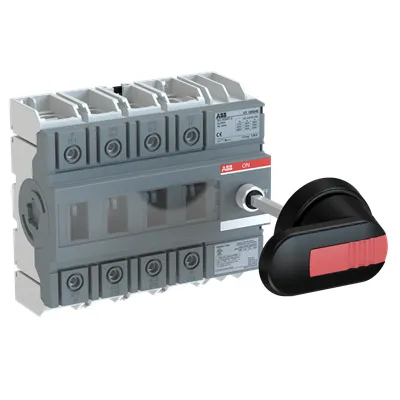

1SCA138216R1001 ABB: 4-pole, front operated, base mounted switch-diconnector with protected clamp terminals and with black IP65 handle and shaft
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
c890c227-81b2-40ec-80d2-362218f43732 Finland (FI)
Simplified SCIP
fac4d358-5529-426f-859c-6c08984b3f3d Germany (DE) | 7682f2a0-92fc-40ed-8ca6-bbfa4d8f7d9f Belgium (BE) | 916ab46f-d52a-4808-95ed-fcf59f04c982 Denmark (DK) | 46c6cbcb-0a2c-4ce4-ac98-e9f672910a54 Germany (DE) | 6d5332ce-f572-4888-b1c8-d36e864ac927 Norway (NO) | 6b2fe77b-ef6e-44c4-a0b5-88c8bee28e41 Hungary (HU) | c8d86131-9494-4d55-a6a6-d8940132bcca Spain (ES) | 7fe25e41-d115-43b7-a6f5-e35283fc65cc Belgium (BE) | 93bb7635-f77f-4741-97da-a11e8a2a683d Italy (IT) | 6b7b1827-bde9-4ac4-9507-a9c2cfc450d4 Poland (PL) | 8bfb29aa-665b-431a-af9f-17a136aca14d Germany (DE) | c263be22-e22a-45f8-b2b0-f6ee33819e6f Sweden (SE) | 57fcec66-75c6-4204-83bc-8c7ac206f0df France (FR) | d0ef0e52-119d-4bfc-b01e-40265366d810 Poland (PL) | f788227d-1931-4d6a-b2aa-93eac26de669 Greece (GR) | 3b1ee79e-79a4-4e77-be20-a1f68e57060d Sweden (SE) | a9bae258-34c0-49c3-85b2-62feddd04512 Bulgaria (BG) | 80a3795e-11f8-49b5-b448-93a032935838 Estonia (EE) | 9e0ddcab-4649-43df-bb84-0be14ce7f346 Hungary (HU) | afeda17e-5da0-4cb8-abe7-fc2936a2746c Netherlands (NL) | 11463468-e977-433f-9fcf-4ad467948ce3 Portugal (PT) | d65ef1d1-8dbb-4a22-b39d-3b44ad835246 Czech Republic (CZ) | e9b1d7ad-e632-42a0-8a4c-52d50bde12ce Croatia (HR) | 9041e03c-6fdd-41fb-a9e5-18eccc2af76d Poland (PL) | 6a3cf3fe-7a62-4938-9a21-2ebe6a04deee Germany (DE) | 77d3663c-d138-4897-8d2f-e393af7e9eb8 Germany (DE) | 9ba4ed4e-e139-4973-a732-d7574836d2b8 France (FR)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G4_model.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
1.2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm
Package Level 1 Depth / Length
244 mm
Package Level 1 Height
96 mm
Package Level 1 Gross Weight
1.3 kg
Package Level 1 EAN
6417019666266
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 40 (Right Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Four-pole front-operated switch-disconnector with base mounting. Business Impact: Delivers reliable isolation with quick operator access, reducing downtime during maintenance and fault clearance. Application: Ideal for control panels and motor control centers where fast, safe disconnection is required. Long-tail keywords: switch-disconnector 4P, front-operated isolation device. Feature: Screw terminals for Cu 10 ... 70 mm² cables. Business Impact: Secure, vibration-resistant wiring that simplifies field terminations and reduces rework. Application: Suitable for machine wiring in harsh environments and panel builds. Long-tail keywords: screw terminals, Cu cable cross-section. Feature: Mechanical durability rated at 20000 cycles. Business Impact: Lower lifecycle maintenance costs and longer service intervals. Application: Frequent switching applications in conveyors and presses. Long-tail keywords: mechanical durability, lifecycle cost reduction. Feature: 160 A rated operational current at multiple voltages up to 1000 V. Business Impact: Supports large motor loads and high-powered control circuits with margins for peak demand. Application: Motor drives, compressors, and power distribution. Long-tail keywords: 160 A rating, high-power control. Feature: 12 kV rated impulse withstand voltage and 1000 V rated insulation voltage. Business Impact: Enhanced electrical safety and reliability against surges and transients. Application: Panel isolation in diverse voltage environments. Long-tail keywords: impulse withstand voltage, insulation voltage. Feature: Base mounting with 4P configuration and lockable handle. Business Impact: Simplifies installation, panel geometry planning, and safe operation with lock protection. Application: Machine builders and panel manufacturers. Long-tail keywords: base mounting, handle lock, 4P configuration. Feature: Compliance with IEC 60947-3 / UL 98 / CSA C22.2 NO.4 plus RoHS and SCIP information. Business Impact: Streamlines procurement and regulatory approvals across regions. Application: Global deployments in industrial automation. Long-tail keywords: IEC 60947-3 compliance, UL 98 certified, RoHS compliance.
Get a Quick Quote for a ABB 1SCA138216R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA138216R1001?
Enquire Now
FAQs
Install as a base-mounted, four-pole unit with screw terminals for Cu cables (10–70 mm²). Use a tightening torque of 6 N·m on terminals and ensure correct polarity and clearances per IEC 60947-3 guidelines. The device is designed for straightforward wiring, enabling faster panel commissioning and safer isolation during maintenance.
The 1SCA138216R1001 provides a rated operational current of 160 A across 380–415 V, 500 V, and 690 V categories, with a rated impulse withstand of 12 kV and Icm up to 12 kA at 690 V. It uses screw terminals and supports a main circuit voltage up to 1000 V, making it suitable for robust motor control and power distribution tasks.
Yes. Its four-pole configuration, base mounting, and front operation are tailored for motor control centers and machine builders. With 4P isolation, 160 A capacity, and compatible mechanical durability, the device provides reliable fault isolation and maintenance access in demanding panel environments.
This model complies with IEC 60947-3, UL 98, and CSA C22.2 NO.4, with CE Declaration of Conformity. It also adheres to RoHS requirements and SCIP listings, supporting global regulatory compliance and sustainable product stewardship for panel assemblies.
With a mechanical durability rating of 20000 cycles and robust base mounting, the device offers long service life and predictable maintenance intervals. Regularly verify terminal tightness (6 N·m), inspect the handle locking function, and confirm wiring integrity to minimize downtime and extend panel reliability.
