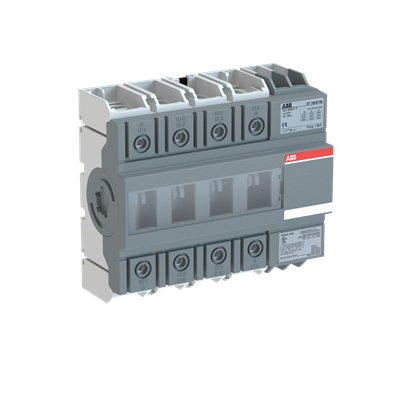

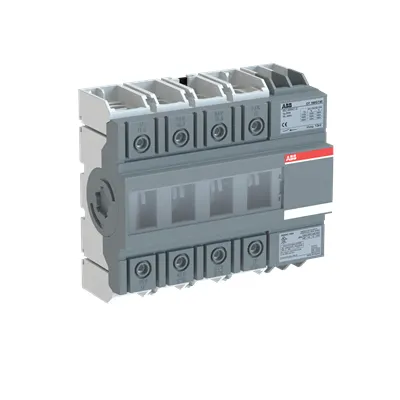

ABB 1SCA138221R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA138221R1001
Quick Summary
ABB 1SCA138221R1001 Switch-Disconnectors deliver safe isolation for four-pole main circuits in control panels and switchgear. Engineers often wrestle with front-operated, door-mounted devices that must fit tight enclosure depths while still providing quick maintenance access. This product meets IEC 60947-3 and UL 98, with CE declarations and IP20 protection to support indoor installations across regions. By combining a robust electrical rating with a compact form, it simplifies panel integration, reduces installation time, and supports compliant, reliable shutdowns in demanding environments.
Product Information
Extended Description
1SCA138221R1001 ABB: 4-pole, front operated, door mounted switch-diconnector with protected clamp terminals, handle and shaft are not included
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160GT4_model.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
130 mm
Product Net Depth / Length
75 mm
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
1.1 kg | 2.4 lb
Package Level 1 EAN
6417019666297
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Door mounting
Number of Poles
4P
Operating Mode
Front and side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 40 (Right Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
53 in·lb
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Front-operated, four-pole design with door mounting enables rapid Actuation and safe isolation directly at the panel face, reducing maintenance time and exposure during disconnection. This design increases worker safety while speeding routine testing and lockout procedures in service panels. The unit is rated for 160 A across 380–415 V, 500 V and 690 V, with a rated impulse withstand of 12 kV and a short-circuit withstand up to 12 kA, delivering reliable performance in distribution boards and machine controls. Screw terminals support Cu 10–70 mm² cables, with a tightening torque of 6 N·m, ensuring secure connections that resist vibration in industrial environments. Front IP20 protection, RoHS compliance, and environmental declarations (CMRT/EPD) provide regulatory confidence for indoor installations and sustainability goals. The 4P configuration, with the fourth pole on the right side and a switched-simultaneous function, supports consistent operation in multi-pole circuits, while the absence of a handle and shaft allows flexible integration with customer-supplied or optional accessories. Durability is built in with 20,000 mechanical cycles and a compact footprint of 150 mm × 130 mm × 75 mm, enabling easier retrofits in existing panels and future upgrades without major enclosure modifications.
Get a Quick Quote for a ABB 1SCA138221R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA138221R1001?
Enquire Now
FAQs
The device uses a door mounting configuration with screw terminals suitable for Cu cables from 10 to 70 mm². It supports a 4P arrangement with the fourth pole on the right side, and the handle/shaft are not included, allowing integration with customer-supplied accessories and compact enclosure layouts.
The unit handles 160 A across 380–415 V, 500 V, and 690 V, with a rated impulse withstand of 12 kV and a conventional current rating of 160 A. It provides a short-circuit current capability of up to 12 kA and front IP20 protection, suitable for indoor industrial applications.
Yes. With 160 A ratings, 1000 V insulation, 12 kV impulse withstand, and 12 kA short-circuit capability, the device is compatible with 380–415 V systems typical in distribution panels and machine controls, offering reliable isolation and safe maintenance.
The product complies with IEC 60947-3 and UL 98, carries CE declarations, and is supported by DNV GL/CSA references in its documentation. It also aligns with RoHS requirements and provides IP20 protection for indoor installations.
With a mechanical durability rating of 20,000 cycles and straightforward front-access installation, maintenance intervals are shorter and downtime is reduced. The compact 150 x 130 x 75 mm footprint simplifies retrofits and reduces enclosure modification costs, delivering a favorable total cost of ownership in legacy panels.
