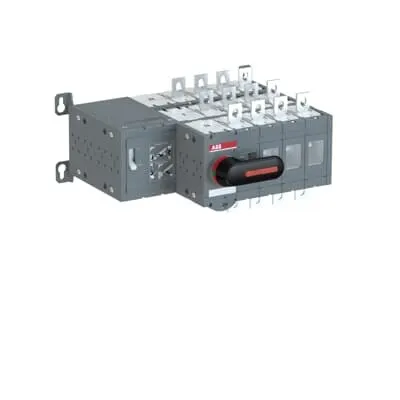

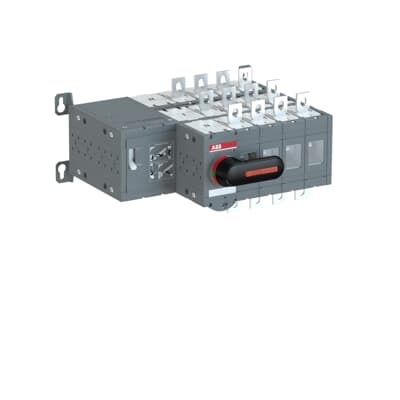

ABB 1SCA141436R1001 Motorized Bypass Switch - IEC 60947-3
Part Number: 1SCA141436R1001
Quick Summary
Motorized bypass switch enables reliable isolation in ABB motor circuits for high-power drive systems. Engineers often struggle with slow switchovers and unsafe open-transition behavior during motor start/stop sequences. The device complies with IEC 60947-3, RoHS, and Reach, delivering regulatory alignment and long-term reliability. Its base-mounted design with a directly mounted handle simplifies installation in standard panels and reduces maintenance overhead. With a 4P configuration supporting up to 160 A and a 1000 V main circuit rating, it fits compact, modular drive architectures. The combination of ease of sourcing and predictable lifecycle cost makes this switch a practical choice for panel builders and OEMs aiming for robust, compliant power control.
Product Information
Extended Description
1SCA141436R1001 ABB: OTM160E4YM230C MOTORIZED BYPASS SWITCH, Direct mounted handle, Open transition
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
By-pass and transfer switches OT_Y
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
331 mm | 13.03 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
285 mm | 11.22 in
Product Net Weight
8.1 kg | 17.86 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
328 mm
Package Level 1 Depth / Length
260 mm
Package Level 1 Height
365 mm
Package Level 1 Gross Weight
8.52 kg
Package Level 1 EAN
6417019690179
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Direct mounted handle
Motor Operational Voltage
220 ... 240 V AC
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 2.4 W
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 90 kW | (500 V) 110 kW | (690 V) 160 kW
Rated Operational Voltage
Main Circuit 1000 V
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Four-pole design with open transition and right-side fourth pole. Business Impact: Enables safe, simultaneous transfer and isolation across all poles, reducing downtime and maintenance risk. Application: Ideal for motor control centers and switchgear modules in high-power drives. Features: Direct mounted handle and front operation. Business Impact: Improves operator safety and speeds manual intervention without opening the enclosure. Application: Panel-mounted control stations and retrofit projects. Features: Base mounting with screw terminals. Business Impact: Simplified installation and secure terminations, lowering installation time and error rates. Application: New builds and upgrades in compact control panels. Features: Rated operational current up to 160 A and main circuit voltage of 1000 V. Business Impact: Supports demanding industrial loads with reliable performance and extended service life. Application: Industrial drives and DC link switching in manufacturing lines. Features: Compliance with CMRT, Reach, and RoHS. Business Impact: Reduces regulatory risk and vendor qualification time, easing procurement. Application: Global sourcing and supply chain management for automotive, packaging, and general plant automation. Features: Conformance to IEC 60947-3 with explicit 4P and 2- and 3-digit power capabilities. Business Impact: Streamlines specification, reduces integration risk, and ensures compatibility with standard low-voltage switchgear. Application: OEM and integrator projects demanding standardization and interoperability.
Get a Quick Quote for a ABB 1SCA141436R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA141436R1001?
Enquire Now
FAQs
Use the base mounting interface to secure the unit inside the enclosure and connect the four poles to the screw terminals. Ensure proper terminal torque (IEC 60947-1 standard specifies 15–22 N·m) and verify correct line/ load orientation before operation. The front-operated, directly mounted handle simplifies commissioning and testing after installation.
The switch provides 4P operation with a rated operational current of 160 A across 380–415 V, 500 V, and 690 V categories (I_e AC-21A/22A/23A). Main circuit voltage is rated to 1000 V, with a conventional free-air thermal current of 160 A. Motor operational voltage is 220–240 V AC, enabling integrated drive control in standard industrial layouts.
Yes. The device is designed to IEC 60947-3 compliant architecture and carries RoHS and Reach declarations. This ensures regulatory alignment for European and global markets, reducing compliance risk in procurement and installation across multinational facilities.
Best suited for motor control centers, switchgear assemblies, and retrofit projects requiring safe, automated transfer with open-transition capability. Its 4P configuration, 160 A rating, and 1000 V main circuit rating make it appropriate for high-power drives in manufacturing lines, packaging systems, and automotive component plants.
The direct-mount, front-operated design reduces service time and enhances operator safety, while the robust IEC 60947-3 construction minimizes downtime. Long-term regulatory compliance (CMRT/Reach/RoHS) lowers procurement risk, and predictable lifecycle costs improve total cost of ownership for panel builders and OEM system integrators.
