ABB 1SCA150028R1001 Switch-Disconnectors - CE UL IP20
Part Number: 1SCA150028R1001
Quick Summary
ABB 1SCA150028R1001 is a switch-disconnector designed for isolating 3P main circuits in industrial control panels. Engineers often struggle with ensuring safe, code-compliant isolation during maintenance without triggering downtime. The unit carries CE Declaration of Conformity, UL/cULus certification, and IP20 front protection to meet global safety and reliability standards. With base mounting, screw terminals, and robust environmental data, it enables quick installs, consistent performance, and straightforward audits. Leveraging ABB EcoSolutions data supports informed procurement and total cost of ownership optimization for industrial buyers.
Product Information
Extended Description

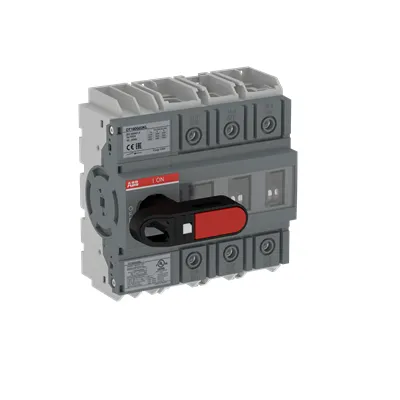

1SCA150028R1001 ABB: OT160G03KL SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
0489f327-b595-4df3-9792-66445bbd404f Finland (FI)
Simplified SCIP
c5295818-7f84-47a7-b591-d3b6f66bd225 Germany (DE) | 002c881a-c1c9-4143-909b-1dd47d379858 Sweden (SE) | 8e704c19-c27c-4757-a976-fc63a2614235 Germany (DE) | 9c05025b-2325-4718-a7be-af1560a6745a Germany (DE) | 649f8674-44dc-46eb-8709-cfa6635ee012 Poland (PL) | e3bff424-0d0e-4304-bece-d01bb1625b8c Czech Republic (CZ) | f61a555f-6651-4ef6-a601-eeb55fbbcf87 Greece (GR) | af4f9bd1-26cd-483f-a9b3-0bb165388e52 Croatia (HR) | 98bb2603-9e78-4745-b131-45d900da7ea2 Portugal (PT) | aa141de4-3c43-4289-a124-2a50fd68e7aa Bulgaria (BG) | 3a8c410a-c267-4943-8295-31642ea37e1e Sweden (SE) | a3092ddb-47b0-477a-9b50-48292af5677f Estonia (EE) | e58fcbdf-b974-4589-9fd3-c3253399f7e3 Hungary (HU) | e408d0a2-c02a-42dd-a8d2-701aa8ebd73c Poland (PL) | bfc64da6-2e00-4265-94a4-e20b06380960 Netherlands (NL) | ba16e612-9096-447e-9187-5c762318effc France (FR) | 5edd575f-b101-4d79-b1df-75a9b0005ee5 Poland (PL) | af966162-a175-4a36-89a3-2f5792347ceb Italy (IT) | 3f061bf3-5239-47bf-82c1-2b9c1d8948c6 Germany (DE) | e6bded08-eb9c-4cb8-93c0-11a27dc184c5 Belgium (BE) | fb52ba5d-5729-4399-a51a-ff7710168d04 Germany (DE) | a883acd5-4e2a-49ca-be60-469941f22356 Denmark (DK) | 8dabe47d-8cc5-47e4-9145-df6749913f44 Norway (NO) | bbedfa39-f412-4613-87a9-3761ef5c7a74 Belgium (BE) | 236dac73-d1f9-4b08-9f81-ad428eee57b4 Spain (ES) | 5d88d74c-37c9-4be1-9a7a-db09dcc38775 Hungary (HU) | 8092f0c3-40da-4614-9f0f-0238da6cdeed France (FR)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G03KL_igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
123 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
0.8 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
0.9 kg | 2 lb
Package Level 1 EAN
6417019801087
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Handle Color
Black
Handle Type
Handle and shaft not included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(690 V) 160 A | (690 V) 380415V;160 A | (690 V) 500V;160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5293 >> Switch disconnector
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Three-pole design supports safe isolation of main circuits in 3P systems → Business Impact: Reduces risk of accidental energization and simplifies maintenance procedures → Application: Machine control panels and cabinet installations. Feature: 160 A current rating and 1000 V insulation voltage → Business Impact: Handles demanding industrial loads with clear clearance margins, lowering overcurrent incidents → Application: High-power automation equipment and conveyors. Feature: Screw terminals with 6 N·m tightening torque → Business Impact: Ensures secure, vibration-resistant connections, reducing field failures → Application: Harsh manufacturing environments and dynamic machinery. Feature: Front IP20 protection and base mounting → Business Impact: Protects the internal circuitry while enabling fast, tool-assisted mounting → Application: Wall or panel-mounted switchgear in production lines. Feature: Mechanical durability of 20000 cycles and low power loss (6.5 W per pole) → Business Impact: Extends service life and lowers energy costs over the lifecycle → Application: Continuous operation environments with frequent switching. Feature: Comprehensive compliance data including RoHS, CMRT, TSCA, and EPD/EPD for OT160G family → Business Impact: Facilitates supplier qualification, regulatory reporting, and sustainable procurement → Application: Global deployments across industries needing traceable material declarations.
