ABB 1SCA150184R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA150184R1001
Quick Summary
Switch-Disconnectors like the ABB 1SCA150184R1001 provide safe, reliable isolation for high-power motor and distribution circuits. Operators often struggle with maintaining safe outages during maintenance while minimizing arc flash risk, especially in dense switchgear. This device aligns with key certifications such as IEC 60947-3, UL 98, and CE declarations, plus IP20 front protection for interior protection. By combining robust mechanical durability with 4P configuration and base mounting, it offers installation efficiency and long-term reliability. In practice, it helps electrical teams reduce downtime, simplify panel design, and meet stringent safety and regulatory requirements, translating into lower lifecycle costs and improved uptime for industrial automation systems.
Product Information
Extended Description

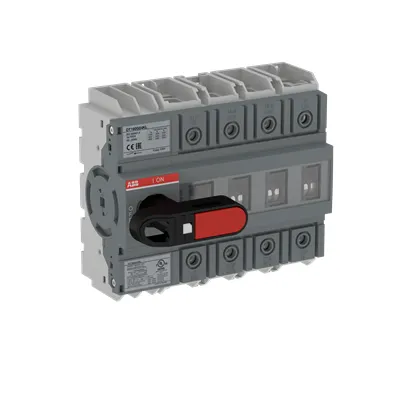

1SCA150184R1001 ABB: OT160G04KL SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
986ae6f7-c2e6-455f-b7ff-193e9152b881 Finland (FI)
Simplified SCIP
aa14d016-9d72-414a-a1b8-135eba0903b3 Germany (DE) | 3a299d4f-b134-4408-87b1-00b6df4f62be Sweden (SE) | cf8fbc90-a08d-4e92-98e2-fb1c2536f1d3 Hungary (HU) | 51f3ca0f-564d-4584-8ed0-7ce78793d39f Denmark (DK) | c0a69757-c9c2-446c-b26c-dda73f1079eb Estonia (EE) | 4bb92328-308e-40a3-9b23-561c077cf7fc Sweden (SE) | 1d947bc2-db18-42f7-835c-eb79dd37afee France (FR) | 8a3fa19d-604d-4b81-9771-a85a3decc337 Poland (PL) | e9fef002-2af0-4b4b-a83d-a6d8baf98981 Belgium (BE) | 9d03c3f1-0609-46d4-9396-d1fd259720e6 Germany (DE) | 367f66bb-1619-40e4-a6d8-bd4a42681c7b Italy (IT) | eb5aacf3-a3c3-43cf-9d84-f50fd6e6a1b2 Netherlands (NL) | ac490c21-620c-4144-a2e1-e325df8b969f Hungary (HU) | 36a7b1ea-9f12-4e65-bcae-fe45ae45d7c6 Poland (PL) | 2e024239-b765-4fd2-8516-a58b93b9a4c9 Spain (ES) | e58c07d9-a382-493b-a206-06dc7c2b9b21 Norway (NO) | 10135af8-8973-4514-a7fd-6c3c910b5d41 Belgium (BE) | fa856511-a340-415a-8468-a5843a0a5e29 Germany (DE) | d30dde92-272e-43cf-801f-556a67c44637 Croatia (HR) | f9174e47-c1cc-475f-a717-f00ac8831bdb Czech Republic (CZ) | a2131515-2e54-4358-9e00-49cb311b0cde Germany (DE) | a82f1855-9592-474f-8524-6203e4bd7fbe Poland (PL) | a4842fc7-afd8-47db-a168-d6bfa11710ce France (FR) | 099b11d2-794d-49a3-b88b-fa0dadd2c323 Germany (DE) | d97c340a-d5cc-489e-acc8-9c0b286a5e07 Portugal (PT) | 854cc63d-3a4d-4daf-8381-354d9fb988bb Greece (GR) | 1cf21147-6491-4752-b301-322e323dc777 Bulgaria (BG)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G04KL_igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
1.1 kg | 2.5 lb
Package Level 1 EAN
6417019801254
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Handle Color
Black
Handle Type
Handle and shaft not included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(690 V) 160 A | (690 V) 380415V;160 A | (690 V) 500V;160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Four-pole (4P) construction supports multi-pole disconnection in a single device, delivering synchronized isolation across the main circuit. Business Impact: Reduces switching risk and arc flash exposure while simplifying panel wiring. Application: Ideal for motor control centers and main switchgear where coordinated disconnection is required. Feature: 160 A current rating at up to 690 V with a 1000 V rated insulation voltage ensures robust performance under demanding load profiles. Business Impact: Enables high-load applications with dependable protection and fewer devices, lowering total cost of ownership. Application: Main distribution panels with heavy motor loads and elevated peak currents. Feature: Screw terminals for Cu 10–70 mm² conductors provide secure, maintenance-friendly connections. Business Impact: Improves reliability, reduces torque-related failures, and speeds up installation. Application: Retrofit and new-build panel projects where copper conductors are standard. Feature: Base mounting and a 6 N·m tightening torque streamline installation and serviceability. Business Impact: Faster commissioning, repeatable torque standards, and easier field maintenance. Application: Factory floor installations and cabinet assemblies that require quick access and firm clamping. Feature: Front IP20 protection, mechanical durability of 20,000 operating cycles, and compact dimensions (approx. 150 mm width, 130 mm height). Business Impact: Enhanced environmental resilience, longer service life, and predictable maintenance planning. Application: Enclosed switchgear where interior protection and durable operation are essential. Feature: Certifications and compliance including IEC 60947-3, UL 98, CSA C22.2 NO.4, and CE DoC. Business Impact: Streamlines regulatory approvals, simplifies spec-ing for compliance-heavy projects, and reduces proof-of-conformity overhead. Application: Global deployments in panels and distribution systems demanding recognized standards.
