ABB 1SCA150185R1001 Switch-Disconnectors - IEC 60947-3 UL 98 Certified
Part Number: 1SCA150185R1001
Quick Summary
ABB 1SCA150185R1001 switch-disconnector is a robust three-pole isolation device designed for industrial control panels and motor circuits. It helps prevent accidental energization during maintenance, reducing risk and downtime. Key certifications such as IEC 60947-3, UL 98/CSA, and CE declarations underpin its global deployability and safety assurance. With IP20 front protection and base mounting for straightforward installation, it integrates cleanly into compact switchgear. The device supports screw termination and a reliable 160 A rating, delivering predictable lifecycle costs for panel builders and end users alike.
Product Information
Extended Description

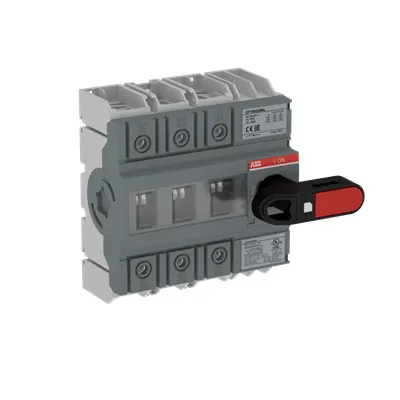

1SCA150185R1001 ABB: OT160G30KL SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G30KL_igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
123 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
0.8 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
0.9 kg | 2 lb
Package Level 1 EAN
6417019801261
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Handle Color
Black
Handle Type
Handle and shaft not included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(690 V) 160 A | (690 V) 380415V;160 A | (690 V) 500V;160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: 3P 160 A rating enables safe main-circuit isolation for demanding loads, reducing arc flash potential and enabling compliant maintenance in heavy-industry panels; ideal for machine builders and process automation where reliability matters. Feature → IP20 front protection minimizes dust ingress in indoor control cabinets, increasing service intervals and reducing unplanned downtime; beneficial for food processing lines and packaging equipment. Feature → Screw terminals and base mounting simplify field wiring and retrofit projects, shortening installation times and improving wiring quality in retrofit controls. Feature → Rated insulation voltage up to 1000 V and I cm of 12 kA provide a robust interruption capability for diversified DC/AC feeds; suitable for motor starters and power distribution in industrial plants. Feature → Mechanical durability of 20000 cycles ensures long service life under frequent operation, lowering maintenance costs and extending panel uptime. Feature → Compliance with IEC 60947-3, UL 98, CSA and RoHS/CMRT ensures regulatory alignment and sustainable sourcing, supporting global product rollouts and supplier audits.
