ABB 1SCA150186R1001 Switch-Disconnectors - IP20 CE/UL
Part Number: 1SCA150186R1001
Quick Summary
ABB 1SCA150186R1001 is a switch-disconnector for isolating main circuits in low-voltage power systems used in industrial automation and control panels. When space is tight and downtime is costly, engineers need reliable, easy-to-service hardware that delivers safe, lockable operation and straightforward wiring. This device carries CE conformity and UL/cULus certification, along with IEC 60947-3 compliance and IP20 protection, making it well-suited for indoor panel installations. Its 4-pole configuration, base mounting, and screw terminals simplify installation, while the 160 A rating and robust fault-current performance support durable control of motors, feeders, and machine sections in demanding environments.
Product Information
Extended Description

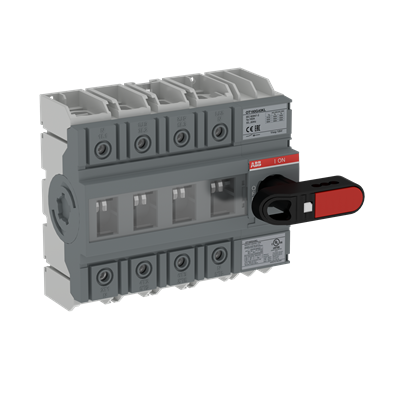

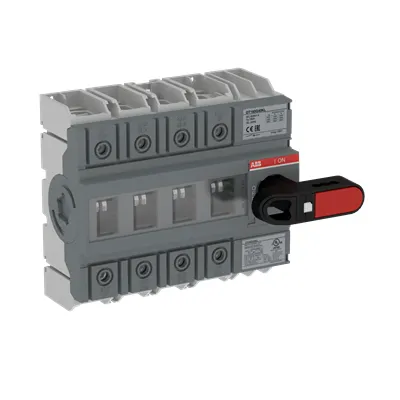

1SCA150186R1001 ABB: OT160G40KL SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160G Disassembling Instruction
Environmental Information
PEI OT160G
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT160G
Mechanical Drawings
OT160G40KL_igs
Environmental Product Declaration - EPD
PEP, EPD, OT160G_
Degree of Protection
Front IP20
Environmental Information
PEI OT160G
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
130 mm
Product Net Depth / Length
73 mm
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
244 mm | 9.6 in
Package Level 1 Height
96 mm | 3.8 in
Package Level 1 Gross Weight
1.1 kg | 2.5 lb
Package Level 1 EAN
6417019801278
Cable Cross-Section
Cu 10 ... 70 mm²
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Handle Color
Black
Handle Type
Handle and shaft not included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)
(200 A fuse, 500 V) 100 kA | (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(690 V) 160 A | (690 V) 380415V;160 A | (690 V) 500V;160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 45 kW | (400 ... 415 V) 75 kW | (500 V) 90 kW | (690 V) 132 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 4 kA
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
125 A
Horsepower Rating UL/CSA
(240 V AC) Single Phase 20 Hp | (440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT100-125_160G
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT100G_, OT125G_, OT160G_
UL Certificate
cULus certificate OT160G
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Four-pole design with base mounting delivers complete isolation for main circuits with a compact footprint. This configuration reduces panel depth and wiring complexity, accelerating assembly and service in control gear and machine enclosures. It is especially advantageous in motor control centers and distribution panels where space is at a premium and reliability cannot be compromised. Screw terminals with a tightening torque of 6 N·m ensure secure, maintenance-friendly connections for Cu conductors from 10 to 70 mm². The result is consistent terminations and minimized risk of loosening under vibration, which translates to fewer field faults and less rework during commissioning. Voltage and insulation ratings support diverse industrial wiring: Ui 1000 V, Uimp 12 kV, and Ith 160 A. This enables safe operation across common low-voltage distributions and motor circuits, with high resistance to temporary overvoltages and short-circuit events. Indoor panel suitability is reinforced by Front IP20 protection and a 3 pollution degree rating. Together with robust fault-current ratings (Icm up to 12 kA at 690 V) and a lifecycle-friendly design, this device reduces maintenance cycles and improves overall system uptime. Safety and lifecycle features include a lockable mechanism, 'Handle and shaft not included' specification to enable proper safety interlocks, and mechanical durability rated at 20,000 cycles. These attributes support lockout-tagout procedures, safer maintenance, and longer service life in demanding environments. Standards compliance and wiring compatibility are built in: IEC 60947-3 / UL 98 / CSA C22.2 NO.4, 4P configuration, and Cu cable range 10–70 mm². This ensures straightforward integration into existing control architectures and compliance reporting for regulated industries.
