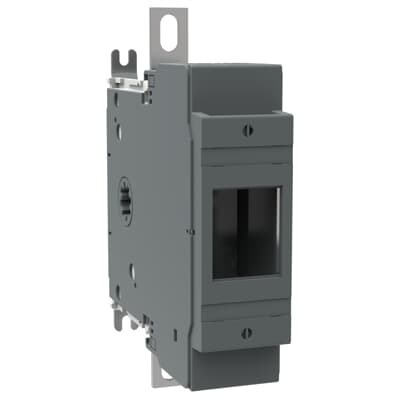

ABB 1SCA151737R1001 OSP400J Neutral Pole - RoHS/CMRT
Part Number: 1SCA151737R1001
Quick Summary
The 1SCA151737R1001 neutral pole completes ABB OS400J switchgear for four-pole protection. Engineers often struggle with maintaining safe busbar configurations and reliable performance in high-current panels. This part supports RoHS and CMRT declarations, plus Reach compliance, helping you meet global regulatory mandates. Finland-made, screw-mounted, and designed for OS400J compatibility, it delivers predictable lifecycle cost, inventory simplicity, and safer installations. Key specs include 600 V AC main circuit voltage, 30 W power loss, and lug terminals suited for high-current distribution. Its class-leading mounting and torque range (30–44 N·m) support reliable field assembly without over-tightening. The product is documented with CMRT, Reach, RoHS status, and ETIM/eClass classifications to simplify sourcing and compliance workflows.
Product Information
Extended Description
1SCA151737R1001 ABB: Fourth pole for OS400J
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS315…400
Mechanical Drawings
osp400_.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
64 mm
Product Net Height
176 mm
Product Net Depth / Length
230 mm
Product Net Weight
1.8 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
200 mm
Package Level 1 Depth / Length
235 mm
Package Level 1 Height
78 mm
Package Level 1 Gross Weight
1.92 kg
Package Level 1 EAN
6417019822549
Mounting Type
Screw mounting
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Current 30 W
Rated Operational Voltage
Main Circuit 600 V AC
Terminal Type
Lug terminals
Tightening Torque
30 … 44 N·m
Tightening Torque
30 … 44 N·m
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Feature: Screw mounting provides secure, vibration-resistant attachment. Business Impact: Reduces field rework and calibration drift, saving maintenance time and labor costs. Application: Easily integrates with ABB OS400J assemblies and other four-pole configurations in control panels. Feature: Main circuit voltage rated at 600 V AC. Impact: Enables safe operation in standard industrial power systems and compliance with safety standards. Application: Suitable for high-current distribution in manufacturing and process facilities. Feature: Power loss of 30 W at rated current. Impact: Minimizes heat buildup and reduces cooling requirements, lowering energy usage. Application: Ideal where equipment efficiency matters, such as packaging lines and material handling systems. Feature: Lug terminals and tightening torque 30–44 N·m. Impact: Provides secure conductor termination with consistent torque, limiting loosening risk. Application: Helps technicians meet torque specifications during installation in OS400J-based panels. Feature: Compliance and documentation (CMRT, Reach, RoHS). Impact: Simplifies supplier qualification and audit readiness, reduces compliance risk. Application: Used across regulated industries needing traceable supply chains and environmental declarations. Feature: Dimensions and weight (64 mm width, 176 mm height, 230 mm depth; 1.8 kg). Impact: Clear space planning and straightforward replacement in existing cabinets. Application: Fits OS400J chassis footprints with standard assemblies. Feature: Origin and classifications (Finland, ETIM 8 EC002498, eClass 27371392, WEEE scope). Impact: Improves procurement data hygiene and lifecycle cost analysis. Application: Supports global sourcing and compliant product data delivery.
Get a Quick Quote for a ABB 1SCA151737R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA151737R1001?
Enquire Now
FAQs
Verify the part is specified as the OS400J neutral pole for four-pole configurations. Confirm screw mounting, lug terminals, and the OS400J footprint. Check that the top In – bottom Out or bottom In – top Out terminal orientation matches your panel layout and that tightening torque falls within 30–44 N·m. Cross-check dimensions: 64 mm wide, 176 mm high, 230 mm deep.
Key electrical specs include a main circuit voltage of 600 V AC, power loss of 30 W at rated current, lug terminals for high-current conductors, and a weight of 1.8 kg. The mounting type is screw, supporting a secure installation, with a tightening torque range of 30–44 N·m to maintain electrical integrity.
Yes. With 600 V AC main circuit rating, lug terminals, and a 30–44 N·m tightening torque, it is designed for reliable multi-pole operation in OS400J-based power distribution. The four-pole configuration supports safe switching and isolation in demanding environments while maintaining installation efficiency and consistency across assemblies.
This neutral pole carries CMRT for conflict minerals, a RoHS declaration aligning with EU Directives 2011/65/EU and 2015/863, and Reach declarations. It is cataloged in ETIM 8 (EC002498) and eClass (V11.1 27371392), with a WEEE status indicating it is not in the WEEE scope. These data support compliance and audit readiness.
Plan for periodic torque verification within 30–44 N·m during inspections to prevent conductor loosening. Monitor for signs of wear or corrosion on lug terminals and ensure mounting remains secure after vibration or transit. The component’s documented specifications help streamline spare-part planning and reduce downtime during replacements.
