ABB 1SCA162527R1001 Switch Disconnector - IEC 60947-3 UL Listed
Part Number: 1SCA162527R1001
Quick Summary
The ABB 1SCA162527R1001 Switch Disconnector provides four-pole isolation for control panels in industrial automation. It addresses installation challenges like secure padlockable operation, front-access servicing, and reliable wiring in tight panel spaces. Key certifications underpin confidence here: IEC 60947-3, CE and UL declarations, and front IP20 protection, ensuring safety and regulatory alignment. Designed for 800 V main circuits and up to 160 A, this unit supports scalable automation while delivering predictable maintenance costs. Coupled with ABB EcoSolutions data and compatible with DIN-rail mounting, it helps OEMs and integrators meet project timelines and compliance requirements.
Product Information
Extended Description

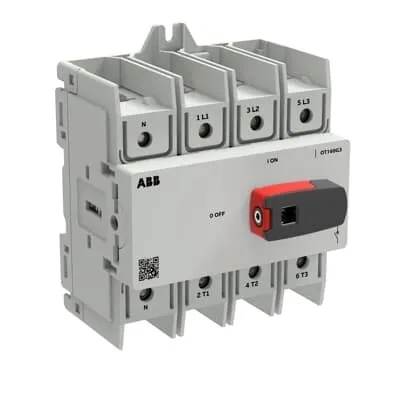

1SCA162527R1001 ABB: OT Plus Switch disconnector series. 4-pole front operated base mounted DIN-rail mountable switch disconnector suitable for panels with 45mm DIN cut-out. The switch disconnector has inbuilt screw terminals and comes with direct-mounted knob handle that can be padlocked and shaft can be mounted for external operation.
End Of Life Disassembling Instructions
OT Plus Switch Disconnectors OT(C)30...160G3- Disassembly Instructions
Environmental Information
PEP, EPD, OT30-160G3
Environmental Product Declaration - EPD
PEP, EPD, OT30-160G3
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
OT Plus switch-disconnectors catalogue | Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
OT Plus Switch Disconnectors OT30...160G3-
Mechanical Drawings
OT30_160G3_4BSN1.stp
Environmental Product Declaration - EPD
PEP, EPD, OT30-160G3
Degree of Protection
Front IP20
Environmental Information
PEP, EPD, OT30-160G3
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85363090
Country of Origin
Finland (FI)
Product Net Width
95.5 mm
Product Net Height
123 mm
Product Net Depth / Length
74.6 mm
Product Net Weight
0.521 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
102 mm
Package Level 1 Depth / Length
129 mm
Package Level 1 Height
79 mm
Package Level 1 Gross Weight
0.588 kg
Package Level 1 EAN
6417019925608
Package Level 2 Units
box 10 piece
Package Level 2 Width
526 mm
Package Level 2 Depth / Length
280 mm
Package Level 2 Height
93 mm
Package Level 2 Gross Weight
5.88 kg
Connecting Capacity Main Circuit
Flexible with Ferrule 1/2x Cu 2.5…4 mm² | Solid 1/2x Cu 2.5…6 mm² | Flexible 1x Cu 2.5…70 mm² | Flexible 2x Cu 2.5…25 mm² | Stranded 1x Cu 2.5…70 mm² | Stranded 2x Cu 2.5…25 mm²
Conventional Free-air Thermal Current (Ith)
160 A
Conventional Thermal Current (Ithe)
160 A
Degree of Protection
Front IP20
Fourth Pole Position
Left Side
Fourth Pole Type
Switched - Simultaneous Function | Switched - Late-break and Early-make
Handle Color
Black
Handle Length
37 mm
Handle Type
Knob Handle | External handle and shaft not included
Lock Type
Yes
Maximum Mounted Auxiliary Contacts
4 NO, 4 NC
Mechanical Durability
Nr. Operations 100000
Mounting Type
Base/DIN mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 7.3 W
Rated Conditional Short-Circuit Current (Inc)
(160 A fuse, 400 V) 5 kA | (125 A fuse, 415 V) 50 kA | (80 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
acc. to IEC 60947-1 800 V
Rated Operational Current AC-21A (Ie)
(415 V) 160 A | (690 V) 125 A | (800 V AC) 80 A
Rated Operational Current AC-22A (Ie)
(415 V) 160 A | (690 V) 125 A | (800 V) 63 A
Rated Operational Current AC-23A (Ie)
(415 V) 125 A | (690 V) 63 A
Rated Operational Power AC-23A (Pe)
(415 V) 55 kW | (690 V) 55 kW
Rated Operational Voltage
Main Circuit 800 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 4.8 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 2.5 kA | for 0.2 s 3.3 kA
Recommended Screw Driver
Main Circuit Hexagon 4
Special Functions
No
Standards
IEC60947-3
Switches Operating Mechanism
Mechanism on Top of the Switch
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Wire Stripping Length
Main Circuit 16-18 mm | Main Circuit 0.63-0.71 in
Wire Stripping Length
Main Circuit 16-18 mm | Main Circuit 0.63-0.71 in
Recommended Screw Driver
Main Circuit Hexagon 4
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
UL 53 lbf·in
CCC Certificate
CCC declaration / Switch-disconnectors OT30-160G3
Declaration of Conformity - CE
Declaration of Conformity / OT30-160G3
UL Certificate
cULus certificate OT_OTC30-100G3
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden)
3172161
