ABB 1SCA163847R1001 Switch Disconnectors - IEC60947-3
Part Number: 1SCA163847R1001
Quick Summary
ABB 1SCA163847R1001 Switch Disconnectors provide reliable isolation in panel installations for industrial machinery. These 3-pole, front-operated devices are designed for base mounting on 45 mm DIN rails, offering secure padlockable operation and straightforward external actuation. Many engineers face challenges with safe access, compliance documentation, and space limitations in control panels; OT Plus disconnectors address these by integrating screw terminals and a robust knob handle. Certified to CE conformity and UL/cULus listings with IP20 front protection, they support safe, traceable maintenance and worldwide sourcing. In addition to robust electrical protection, they deliver quick installation and compatibility with a wide range of auxiliary contacts, improving uptime and enabling scalable automation for your protection needs.
Product Information
Extended Description

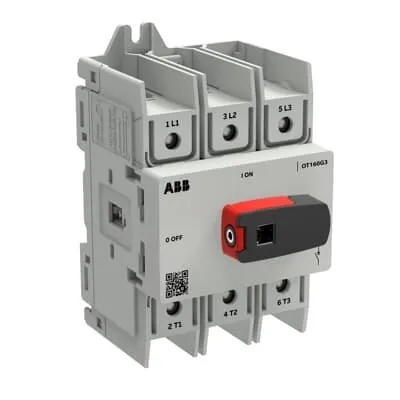

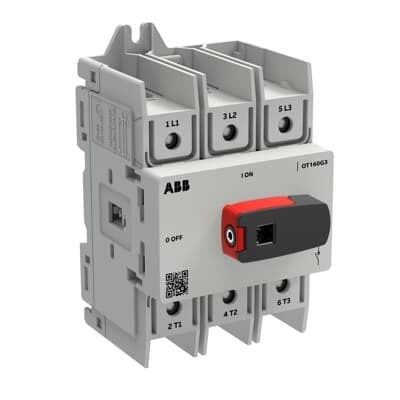

1SCA163847R1001 ABB: OT Plus Switch disconnector series. 3-pole front operated base mounted DIN-rail mountable switch disconnector suitable for panels with 45mm DIN cut-out. The switch disconnector has inbuilt screw terminals and comes with direct-mounted knob handle that can be padlocked and shaft can be mounted for external operation.
End Of Life Disassembling Instructions
OT Plus Switch Disconnectors OT(C)30...160G3- Disassembly Instructions
Environmental Information
PEP, EPD, OT30-160G3
Environmental Product Declaration - EPD
PEP, EPD, OT30-160G3
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
OT Plus switch-disconnectors catalogue | Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
OT Plus Switch Disconnectors OT30...160G3-
Mechanical Drawings
OT30_160G3_3BS.stp
Environmental Product Declaration - EPD
PEP, EPD, OT30-160G3
Degree of Protection
Front IP20
Environmental Information
PEP, EPD, OT30-160G3
Pollution Degree
3
Minimum Order Quantity
32 piece
Customs Tariff Number
85363090
Country of Origin
Finland (FI)
Product Net Width
70 mm
Product Net Height
123 mm
Product Net Depth / Length
74.6 mm
Product Net Weight
0.399 kg
Package Level 1 Units
box 32 piece
Package Level 1 Width
570 mm
Package Level 1 Depth / Length
380 mm
Package Level 1 Height
167 mm
Package Level 1 Gross Weight
12.77 kg
Package Level 1 EAN
6417019932323
Connecting Capacity Main Circuit
Flexible with Ferrule 1/2x Cu 2.5…4 mm² | Solid 1/2x Cu 2.5…6 mm² | Flexible 1x Cu 2.5…70 mm² | Flexible 2x Cu 2.5…25 mm² | Stranded 1x Cu 2.5…70 mm² | Stranded 2x Cu 2.5…25 mm²
Conventional Free-air Thermal Current (Ith)
160 A
Conventional Thermal Current (Ithe)
160 A
Degree of Protection
Front IP20
Handle Color
Black
Handle Length
37 mm
Handle Type
Knob Handle | External handle and shaft not included
Lock Type
Yes
Maximum Mounted Auxiliary Contacts
4 NO, 4 NC
Mechanical Durability
Nr. Operations 100000
Mounting Type
Base/DIN mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 7.3 W
Rated Conditional Short-Circuit Current (Inc)
(160 A fuse, 400 V) 5 kA | (125 A fuse, 415 V) 50 kA | (80 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
acc. to IEC 60947-1 800 V
Rated Operational Current AC-21A (Ie)
(415 V) 160 A | (690 V) 125 A | (800 V AC) 80 A
Rated Operational Current AC-22A (Ie)
(415 V) 160 A | (690 V) 125 A | (800 V) 63 A
Rated Operational Current AC-23A (Ie)
(415 V) 125 A | (690 V) 63 A
Rated Operational Power AC-23A (Pe)
(415 V) 55 kW | (690 V) 55 kW
Rated Short-Circuit Making Capacity (Icm)
(690 V) 4.8 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 2.5 kA | for 0.2 s 3.3 kA
Recommended Screw Driver
Main Circuit Hexagon 4
Special Functions
No
Standards
IEC60947-3
Switches Operating Mechanism
Mechanism on Top of the Switch
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Wire Stripping Length
Main Circuit 16-18 mm | Main Circuit 0.63-0.71 in
Wire Stripping Length
Main Circuit 16-18 mm | Main Circuit 0.63-0.71 in
Recommended Screw Driver
Main Circuit Hexagon 4
Tightening Torque
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA
UL 53 lbf·in
CCC Certificate
CCC declaration / Switch-disconnectors OT30-160G3
Declaration of Conformity - CE
Declaration of Conformity / OT30-160G3
UL Certificate
cULus certificate OT_OTC30-100G3
Object Classification Code
Q
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3642541
3-pole OT Plus switch disconnectors provide solid isolation with a compact base/DIN mounting footprint, enabling quicker panel assembly and easier retrofits; this reduces installation time and post-installation adjustments in high-density control panels. The business impact is tangible: safer lockout/tagout procedures, fewer field-rework cycles, and consistent performance across multiple machines; typical applications include packaging lines, processing equipment, and automation cabinets where space remains at a premium. The screw-terminal design simplifies wiring, improves reliability, and supports both solid and stranded conductors within recommended ranges, minimizing wiring errors during maintenance. By offering a padlockable knob handle, these devices enhance operator safety and regulatory compliance during servicing, while external operation supports fast manual control in commissioning and troubleshooting. This combination delivers measurable efficiency gains, reduced downtime, and scalable integration with 3P protections in industrial environments. Compatibility with up to 4 NO and 4 NC auxiliary contacts broadens interlocking and signaling capabilities, enabling more sophisticated control logic without requiring additional modules. These attributes are particularly valuable in motor control centers and machine safety circuits where uptime matters and traceable maintenance records are essential.
