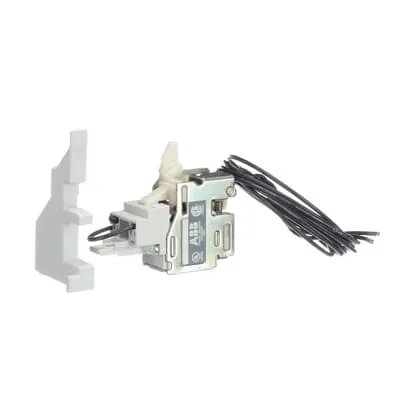

ABB 1SDA053682R1 Shunt Opening Release - UL/CSA
Part Number: 1SDA053682R1
Quick Summary
ABB 1SDA053682R1 Shunt Opening Release is a wired accessory for Tmax T breakers that enables safe remote tripping. Engineers often face wiring errors and maintenance delays when remote tripping components lack clear, compatible options. This part carries UL and CSA recognitions with IEC standard compliance and a CE Declaration of Conformity, ensuring global interoperability across panels and service regions. As a Tmax T accessory, it simplifies installation, reduces downtime, and supports modular, compliant switchgear configurations for healthier project timelines.
Product Information
Extended Description
1SDA053682R1 ABB: SHUNT OPENING RELEASE WIRED 220...240V AC-220...250V DC T1-T2-T3 UL/CSA
EAN
8015644546939
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1 kg
Product Main Type
Accessories for Tmax T
Product Name
Accessory
Product Type
ACC
Suitable For
T1, T2, T3
Suitable for Product Class
SACE Tmax T
Configuration Type
Loose or configurable
Current Type
AC/DC
Rated Voltage (Ur)
220 ... 240 V AC | 220 ... 250 V DC
Standards
IEC
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
ETIM 8
EC002483 - Switch spool for power circuit breaker
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Loose or configurable configuration enables flexible mounting in both retrofit and new-install scenarios. Business Impact: Faster commissioning and fewer chassis changes; Application: Suitable for Tmax T control schemes, reducing field wiring complexity and enabling scalable system expansion. Feature: AC/DC current type compatibility with rated voltage 220-240 VAC and 220-250 VDC. Business Impact: Consistent operation across both AC and DC fault conditions; Application: Reliable remote tripping in mixed-power installations, improving safety margins and regulatory alignment. Feature: Certifications and standards, including IEC, UL/CSA, and CE DoC. Business Impact: Simplified procurement and compliant documentation across regions; Application: Global projects with strict conformity requirements, ensuring seamless panel approvals. Feature: Product main type and suitability for Tmax T, with 1 kg net weight and loose mounting. Business Impact: Easy handling during installation and retrofit; Application: Space-constrained switchgear where weight and ease of installation matter. Feature: Minimum order quantity of 1 piece and compatibility with Tmax T accessories. Business Impact: Flexible stocking and reduced inventory risk; Application: Procurement workflows for spare parts and service kits, enabling faster turnaround times.
Get a Quick Quote for a ABB 1SDA053682R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA053682R1?
Enquire Now
FAQs
The 1SDA053682R1 Shunt Opening Release is designed as a loose or configurable accessory for Tmax T breaker families. It supports T1, T2, and T3 applications, enabling easy retrofits and new installations without extensive panel redesign. The part is compatible with AC/DC current types and uses standard Tmax T mounting interfaces to minimize wiring effort.
This release is rated for 220-240 V AC and 220-250 V DC, supporting AC/DC current types. It is intended for use with Tmax T control circuits (T1-T3) and complies with IEC standards. Its dual-voltage capability simplifies integration in mixed-power environments while ensuring safe, reliable tripping behavior.
Yes. The accessory is designed for Tmax T switchgear and control panels, offering loose or configurable mounting to fit both new builds and upgrades. Its UL/CSA certifications and CE DoC support regulatory compliance, while its 1 kg weight and compact form factor aid in installation in space-constrained environments.
The part carries IEC standards relevance, UL/CSA recognitions, and a CE Declaration of Conformity. Conformity documents are referenced through the EU DoC for the relative circuit breaker and associated product certifications. For procurement and audit trails, request the DoC and standard compliance sheets from ABB or the authorized distributor.
Using this shunt opening release reduces wiring errors and accelerates commissioning, cutting install time and maintenance overhead in Tmax T environments. The USB-friendly documentation and alignment with IEC/UL/CSA standards improve first-pass approvals, boosting uptime and ROI. Its modular nature supports future expandability without major panel rework or part substitutions.
