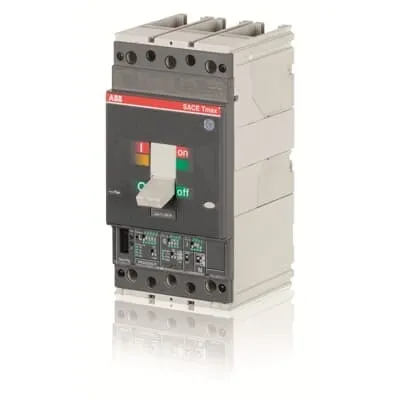

ABB 1SDA054099R1 Moulded Case MCCB - PR222DS/P-LSI
Part Number: 1SDA054099R1
Quick Summary
ABB 1SDA054099R1 Moulded Case MCCB is a three-pole protection device for LV switchgear and control panels. Engineers often struggle with long installation times, uncertain trip reliability, and the burden of maintaining up-to-date compliance documentation. This model carries CE conformity, RoHS and REACH declarations, plus SCIP and TSCA information, supporting global regulatory alignment and reduced procurement risk. By combining Tmax T4 technology with front-terminal accessibility and a 100 A rating, it streamlines panel upgrades, simplifies installation, and delivers measurable uptime and long-term cost savings for industrial plants.
Product Information
Extended Description
1SDA054099R1 ABB: C.BREAKER TMAX T4V 250 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSI R 100
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Document availability on demand
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
SCIP
e770f146-a7c9-4c4a-aab5-7001277a8825 China (CN)
Simplified SCIP
f06a2585-b6cd-444e-96c7-18597efca1f1 Norway (NO) | e4d4e7c3-ecab-47b4-abf1-2425ce994d2d Spain (ES) | 83246ab8-463d-463a-b522-cdbe74295f5f Greece (GR) | 714bd000-367f-4511-ae50-91b1139d448f Estonia (EE) | b407355d-9666-4e26-b4ca-8da8785b9eac Poland (PL) | eb11f582-0cc4-4e04-a749-9200483088f7 Hungary (HU) | bdcdf213-f7e6-46d6-af22-0164ebd4d338 Netherlands (NL) | 630284eb-b691-4910-99f5-98f3ab9a6873 Croatia (HR) | 13235df0-129a-4033-9aca-1cc66facd683 Denmark (DK) | 4e699d6b-47b6-4b13-bcf2-b0337822c393 Germany (DE) | 9c253eb9-59b8-499d-848f-ad9ce4c9e496 Germany (DE) | 2ff4c0ba-2748-4100-b5fb-7125eea5ce2c Germany (DE) | 8bca802a-f1f7-446f-8f3d-d5f3ae847aa9 Bulgaria (BG) | de2f0f5f-e643-4865-bb42-ab36ac3ecb95 Portugal (PT) | 8b5833df-58d2-476d-9677-9bc6a525e924 Sweden (SE) | 11f7ebf7-cd05-4209-9db3-ffb5ed160bc8 France (FR) | 91702784-593b-42ff-b44f-56d32356ab3e Poland (PL) | 202c5f20-4974-408b-9e48-646f228dafd1 Hungary (HU) | 5c056c6b-a4e2-4a42-bcc8-97e8c806811a Belgium (BE) | 10b5f65c-df8e-4096-98d2-4463ccdfc580 Sweden (SE) | 779b03bc-95b1-454d-a289-583225a43997 France (FR) | 50a8c4eb-8a8c-4bbb-aefb-8d6feef396b6 Germany (DE) | 78c98069-e07a-4b1c-a1b3-3ceb5285d895 Finland (FI) | 901aed11-5194-4471-bc4f-fcd73e07a8f6 Belgium (BE) | fdb6f13a-c34a-4406-aa4c-b92332a7c005 Poland (PL) | 6e745334-c285-4933-ad3a-95387324a0c5 Czech Republic (CZ) | 5972c408-78f3-4b9b-90a0-ca3ac87623c8 Germany (DE)
Environmental Information
Product Environmental Information Tmax T4
E-Number (Finland)
3655227
EAN
8015644551919
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
105 mm
Product Net Height
205 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
3.5 kg
Package Level 1 Units
1 piece
Package Level 1 Width
248 mm
Package Level 1 Height
240 mm
Package Level 1 Depth / Length
285 mm
Package Level 1 Gross Weight
3.5 kg
Package Level 1 EAN
8015644551919
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T4
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
8000 cycle | 120 cycles per hour
Mechanical Durability
20000 cycle | 240 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 1.7 W
Rated Current (In)
100 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 200 kA | (400 V AC) 200 kA | (415 V AC) 200 kA | (440 V AC) 180 kA | (500 V AC) 150 kA | (690 V) 150 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 200 kA | (400 V AC) 200 kA | (415 V AC) 200 kA | (440 V AC) 180 kA | (500 V AC) 150 kA | (690 V AC) 80 kA
Rated Uninterrupted Current (Iu)
250 A
Release
PR222DS/P-LSI
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T4
Terminal Connection Type
Fixed Circuit-Breakers | Front
Test Voltage Max (Utest)
3500 V
Test Voltage at Industrial Frequency for 1 Minute
3500 V
Data Sheet, Technical Information
1SDC210004D0203
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T4
GL Certificate
1SDL000163R0061
Instructions and Manuals
Installation instructions Tmax T4
Instructions and Manuals (Part 2)
ITSCE-RH0100001
Instructions and Manuals (Part 3)
Release PR222DS/P and PR222DS/PD T4-T5-T6
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39121100
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: Three-pole fixed-front-terminal design enables straightforward wiring and rapid panel installation. Business Impact: Reduces wiring errors and minimizes field rework, lowering labor costs and accelerating commissioning. Application: Suited for new builds or upgrades in low-voltage switchgear and control panels across manufacturing plants and process lines. Feature: PR222DS/P-LSI release provides reliable protection release with clear trip coordination. Business Impact: Improves selectivity and fault clearances, reducing downtime during faults. Application: Optimized for Tmax T4 family installations in distribution boards and transformer feeders where predictable tripping is essential. Feature: 100 A rated current with 690 V AC operating voltage supports compact, cost-efficient protection modules. Business Impact: Enables smaller panel footprints while preserving safety margins for critical loads. Application: Ideal for motor starters, lighting, and general distribution in industrial facilities. Feature: High short-circuit performance with Ics up to 200 kA at lower voltages and Icu up to 80 kA at 690 V. Business Impact: Delivers robust fault handling, protecting transformers, feeders, and motors from damaging faults. Application: Suitable for demanding environments across manufacturing and infrastructure projects. Feature: Compliance and declarations RoHS, REACH, SCIP, CE, and TSCA support. Business Impact: Simplifies regulatory approvals, reduces audit work, and strengthens ESG reporting. Application: Helps procurement teams meet global supplier requirements and maintain traceability in multinational supply chains. Feature: Durable construction with 8000 electrical cycles and 20000 mechanical cycles, plus 3500 V test voltage. Business Impact: Extends service life, lowers maintenance costs, and improves uptime in high-demand applications. Application: Fits continuous-operation plants, data centers, and process lines where frequent switching occurs.
Get a Quick Quote for a ABB 1SDA054099R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA054099R1?
Enquire Now
FAQs
Plan for a fixed-front-terminal arrangement and verify the device footprint, which is 105 mm wide, 205 mm high, and 103.5 mm deep, with a weight of 3.5 kg. Use the front-terminal connection as specified and connect L1-L3 per the panel wiring diagram. Ensure the unit is mounted in a suitable three-pole chassis and that enclosure clearances meet standard practice for MCCBs in low-voltage distribution.
The unit is rated for 100 A, with a rated operational voltage of 690 V AC and rated insulation voltage of 1000 V. It offers Ics up to 200 kA across most lower voltages and Icu up to 80 kA at 690 V. It also withstands 3500 V test voltage and consumes about 1.7 W per pole under rated conditions, with electrical and mechanical durability of 8000 and 20000 cycles respectively.
Yes. It is designed for Tmax T4, featuring a fixed-front-terminal design and a three-pole configuration suitable for distribution boards and transformer feeders. The product aligns with IEC standards and CE RoHS REACH declarations, helping ensure compatibility with common low-voltage panels and simplifying integration with existing Tmax T4-based protection schemes.
This MCCB carries CE conformity and RoHS/REACH declarations, plus SCIP documentation and TSCA reporting. A GL certificate is available, and detailed certification data is provided in the product declarations for Tmax T4. For procurement and audits, you’ll find Installation Instructions and Data Sheets that support traceability and regulatory readiness.
With electrical durability rated at 8000 cycles and mechanical durability at 20000 cycles, the device supports frequent switching without early wear. The 3500 V test voltage indicates robust insulation, while the compact 100 A/690 V design reduces maintenance complexity and component count, contributing to lower downtime and a favorable total cost of ownership in high-demand industrial environments.
