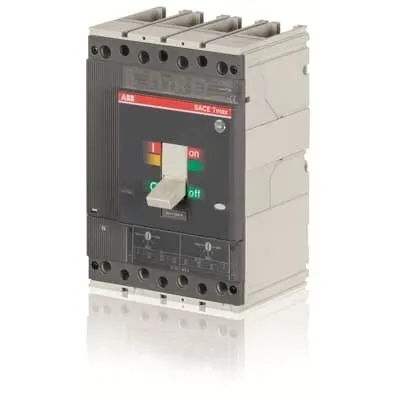

ABB 1SDA054253R1 Moulded Case Circuit Breaker - IEC
Part Number: 1SDA054253R1
Quick Summary
ABB 1SDA054253R1 Moulded Case Circuit Breaker provides reliable protection for industrial power distribution in panels. Engineers often wrestle with nuisance trips and undersized protections that disrupt uptime; this Tmax T4V four-pole device uses a thermomagnetic release (TMD) to deliver selective, fast fault interruption. It carries IEC standards with a CE declaration and RoHS/REACH compliance, supporting global sourcing and regulatory alignment. With a 32 A rated current and 690 V AC (750 V DC) operation, it combines protection and efficiency, making it a solid fit for motor feeders, transformers, and MCCs in demanding environments.
Product Information
Extended Description
1SDA054253R1 ABB: C.BREAKER TMAX T4V 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 32-320 A
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Document availability on demand
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T4
EAN
8015644553500
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
140 mm
Product Net Height
205 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
3.05 kg
Package Level 1 Units
1 piece
Package Level 1 Width
248 mm
Package Level 1 Height
240 mm
Package Level 1 Depth / Length
285 mm
Package Level 1 Gross Weight
3.5 kg
Package Level 1 EAN
8015644553500
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T4
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
8000 cycle | 120 cycles per hour
Mechanical Durability
20000 cycle | 240 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 3.7 W
Rated Current (In)
32 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC | 750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 200 kA | (400 V AC) 200 kA | (415 V AC) 200 kA | (440 V AC) 180 kA | (500 V AC) 150 kA | (690 V) 150 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 200 kA | (400 V AC) 200 kA | (415 V AC) 200 kA | (440 V AC) 180 kA | (500 V AC) 150 kA | (690 V AC) 150 kA | (250 V DC) 2 Poles in Series 100 kA | (500 V DC) 2 Poles in Series 70 kA
Rated Uninterrupted Current (Iu)
250 A
Release
TMD
Release Type
TM
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T4
Terminal Connection Type
Fixed Circuit-Breakers | Front
Test Voltage Max (Utest)
3500 V
Test Voltage at Industrial Frequency for 1 Minute
3500 V
Data Sheet, Technical Information
1SDC210004D0203
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T4
GL Certificate
1SDL000163R0061
Instructions and Manuals
Installation instructions Tmax T4
Instructions and Manuals (Part 2)
ITSCE-RH0100001
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39121100
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Four-pole fixed front-terminal design simplifies wiring and reduces assembly errors, delivering clean panel density and reliable mechanical alignment. This configuration minimizes field wiring mistakes, speeds panel assembly, and enhances serviceability during maintenance. It is well suited for main distribution boards, motor control centers, and transformer feeders where space is tight and reliability matters. Thermomagnetic release (TMD) provides fast, selective tripping for overloads and short circuits, limiting fault energy and protecting downstream equipment. In practice, users see reduced nuisance trips and improved uptime in demanding production environments. This feature supports motor starters, conveyors, and processing lines where precise protection is essential. Rated at 32 A with 690 V AC and 750 V DC capabilities, the device balances protection with efficiency for mixed-load panels. The robust ratings reduce stocking variety and simplify design decisions for engineers. It pairs with MCCs, switchgear, and distribution boards in modern plant layouts. Ics up to 200 kA and Icu up to 200 kA under IEC conditions provide a wide fault-current margin. This ensures fast interruption without compromising system reliability, even in sites with high short-circuit potential. It supports transformer-fed feeders and large motor circuits common in heavy manufacturing. RoHS and REACH declarations, together with CE conformity and GL certification, streamline regulatory compliance and supplier auditing. Documentation supports environmental responsibility and data traceability across multinational projects. Front-terminal wiring and compatibility with the SACE Tmax T4 family simplify installation, retrofits, and future expansion. The fixed-front design minimizes rework and offers predictable mounting, while standard packaging and EAN support efficient logistics. This makes it a practical choice for panel builders and systems integrators. Physical footprint and weight provide predictable space planning for compact switching gear with 140 mm width, 205 mm height, 103.5 mm depth, and 3.05 kg weight.
Get a Quick Quote for a ABB 1SDA054253R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA054253R1?
Enquire Now
FAQs
The 1SDA054253R1 uses fixed front terminals designed for straightforward wiring. Begin by identifying the correct mounting location in a compatible enclosure, ensure vertical clearance and conductor sizing meet 690 V AC ratings, then connect conductors to the front terminals using the recommended torque. After seating, secure the device and perform a polarity check and insulation test per installation instructions.
This 4P Tmax T4 device provides high fault current protection with Ics up to 200 kA and Icu up to 200 kA under IEC conditions. These ratings enable rapid interruption during a fault while maintaining system integrity, making it suitable for transformer feeders and medium-scale motor circuits in demanding industrial environments.
Yes. The 1SDA054253R1 is designed for motor feeders and MCC applications, featuring a four-pole configuration, robust 32 A rating, and a TMD release for fast protection. Its front-terminal design and Tmax T4 family compatibility support modular protection schemes in motor control centers and distribution panels.
The unit carries CE Declaration of Conformity and RoHS/REACH declarations, along with a GL certificate. These certifications support regulatory compliance, environmental responsibility, and audit readiness, helping streamline procurement and cross-border deployment in global projects.
The thermomagnetic TMD release provides reliable protection with low nuisance trips, reducing downtime. With 8000 electrical durability cycles and 20000 mechanical cycles, the device supports long service life in continuous operation environments, while front-terminal wiring simplifies maintenance tasks and future retrofits inside MCCs and panels.
