ABB 1SDA054386R1 Moulded Case Circuit Breaker - IEC
Part Number: 1SDA054386R1
Quick Summary
ABB 1SDA054386R1 Moulded Case Circuit Breaker protects industrial power distribution by interrupting fault currents. Engineers face wiring complexity and the pressure to deliver fast, reliable protection in demanding control panels. It meets IEC standards, CE conformity, and RoHS/REACH declarations, with SCIP registrations for transparent supply chains. In practice, Tmax T5 performance and front-terminal installation streamline maintenance and bolster panel safety, while delivering cost-efficient protection for automation projects.
Product Information
Extended Description

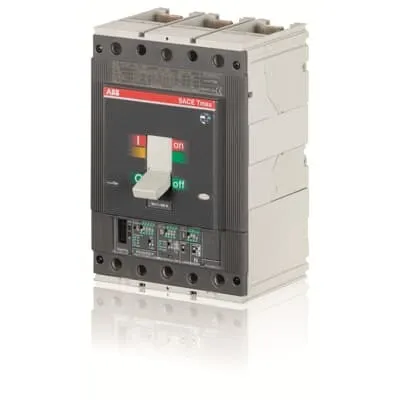

1SDA054386R1 ABB: C.BREAKER TMAX T5V 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSIG R 320
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
SCIP
9a07dede-2d25-4b7c-886d-dd3908a78269 China (CN)
Simplified SCIP
070c1919-a041-4884-bbec-86648f75e415 Sweden (SE) | c2a6e615-bd4a-482b-aef7-910efc386297 Poland (PL) | 1d1b4f81-feca-4286-a6c6-fae61e8fc655 Bulgaria (BG) | ae1326f3-4fc5-4db8-8211-0d34d4c66c45 Portugal (PT) | bf6aaa9e-7a4c-46d2-a7f8-ac10f4ec2d99 Greece (GR) | e0c28782-c394-432c-8892-46287026c50b France (FR) | 9e3905c4-2637-4c52-864c-13b23b67bec8 Germany (DE) | 3a4c80f8-d6a4-4ac2-9b75-22ec87f1a9eb France (FR) | 943bc84f-152c-47ad-9993-23988de88c45 Spain (ES) | 94fcfced-534d-4b2e-8536-ce3fcf15c245 Sweden (SE) | 4826e389-77ca-4cf5-b40c-ab8d497c182b Germany (DE) | 0618ab30-0335-4140-aae3-51ebbe6dcedc Belgium (BE) | 8f3de65d-4e11-4c33-ba19-5bc24be52ab4 Netherlands (NL) | 425ab4ea-0f21-4300-a980-3f5748fc7230 Hungary (HU) | ecc07c27-9e2c-4c6f-9738-764f2dd4aa40 Poland (PL) | 3b7361d1-f8b5-4974-a8b3-65789af30243 Estonia (EE) | 323c5ac4-c7ae-47ff-81e7-1f21d5fcb29d Czech Republic (CZ) | 8208914f-47a1-4735-9d24-7a2db7d8182e Norway (NO) | 627b201f-fff8-4849-8c60-32dcc1ccc3d8 Germany (DE) | 9ff14a78-7d2d-41ca-a19f-c3fdda0b0e12 Croatia (HR) | db9611db-f445-4969-81de-3e88a010fffc Poland (PL) | fd156512-75e1-430b-95bb-c62870540d24 Hungary (HU) | 14926ba2-d45e-4ee6-9342-db4378407827 Belgium (BE) | acb32f93-708e-4530-8410-51b72ef3fa29 Finland (FI) | f4ad91c8-6630-4d81-b5e0-9b8370083480 Germany (DE) | 4b0ce220-32b7-446e-8845-1dca7ea6096b Germany (DE) | 8f4be92e-3bfd-4ce7-b26f-02f26690f745 Denmark (DK)
Environmental Information
Product Environmental Information Tmax T5 | Breakers - Packaging disposal information
E-Number (Finland)
3655393
EAN
8015644554842
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
140 mm
Product Net Height
205 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
5.1 kg
Package Level 1 Units
1 piece
Package Level 1 Width
248 mm
Package Level 1 Height
240 mm
Package Level 1 Depth / Length
285 mm
Package Level 1 Gross Weight
5.1 kg
Package Level 1 EAN
8015644554842
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T5
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
7000 cycle | 60 cycles per hour
Mechanical Durability
20000 cycle | 120 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 10.6 W
Rated Current (In)
320 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 200 kA | (400 V AC) 200 kA | (415 V AC) 200 kA | (440 V AC) 180 kA | (500 V AC) 150 kA | (690 V AC) 80 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 200 kA | (400 V AC) 200 kA | (415 V AC) 200 kA | (440 V AC) 180 kA | (500 V AC) 150 kA | (690 V AC) 80 kA
Rated Uninterrupted Current (Iu)
400 A
Release
PR222DS/P-LSIG
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T5
Terminal Connection Type
Fixed Circuit-Breakers | Front
Test Voltage Max (Utest)
3500 V
Test Voltage at Industrial Frequency for 1 Minute
3500 V
Data Sheet, Technical Information
1SDC210004D0203
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T5
Instructions and Manuals
Installation instructions Tmax T5
Instructions and Manuals (Part 2)
ITSCE-RH0100001
Instructions and Manuals (Part 3)
Release PR222DS/P and PR222DS/PD T4-T5-T6
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39121100
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Front-terminal, fixed configuration reduces wiring time and improves accessibility, enabling faster panel assembly and safer testing. Release PR222DS/P-LSIG delivers reliable tripping under overload and short-circuit conditions, minimizing downtime and protecting expensive downstream equipment. With a rated current of 320 A and a rated short-time withstand current Icw of 5 kA for 1 s, it provides robust protection for medium-to-high load scenarios while keeping heat and wear within acceptable limits. Rated operational voltage is 690 V AC and insulation voltage 1000 V, with a high impulse withstand voltage of 8 kV, ensuring resilience in demanding industrial environments and reducing insulation failures. Compliance and environmental data—RoHS and REACH declarations, CE conformity, and SCIP registrations—support easier regulatory approval and sustainable sourcing. Front-terminal connections and compact dimensions (3P configuration, 140 mm width, front mounting) simplify installation in space-constrained panels while maintaining serviceability and safe maintenance access.
