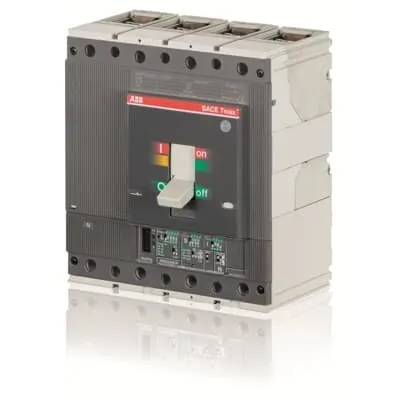

ABB 1SDA054392R1 Moulded Case Circuit Breaker-PR222DS/P-LSI
Part Number: 1SDA054392R1
Quick Summary
ABB 1SDA054392R1 Moulded Case Circuit Breaker protects medium‑voltage switchgear and transformer protection. Engineers often struggle with crowded panels, front-terminal access, and lengthy maintenance cycles that slow project timelines. This unit carries CE conformity and IEC standards, reinforced by RoHS and REACH compliance, ensuring regulatory peace of mind. As a member of the SACE Tmax T family, it offers dependable protection with front-terminal installation and a robust PR222DS/P-LSI release for fast trips. Designed for T5 applications, it helps reduce downtime, optimize space, and lower total cost of ownership, while delivering reliable short-circuit protection across 690 V systems and windings up to 320 A.
Product Information
Extended Description
1SDA054392R1 ABB: C.BREAKER TMAX T5V 400 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSI R 320
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T5 | Breakers - Packaging disposal information
E-Number (Finland)
3655378
EAN
8015644554903
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
186 mm
Product Net Height
205 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
6.2 kg
Package Level 1 Units
1 piece
Package Level 1 Width
248 mm
Package Level 1 Height
240 mm
Package Level 1 Depth / Length
285 mm
Package Level 1 Gross Weight
6.2 kg
Package Level 1 EAN
8015644554903
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T5
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
7000 cycle | 60 cycles per hour
Mechanical Durability
20000 cycle | 120 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 10.6 W
Rated Current (In)
320 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 200 kA | (400 V AC) 200 kA | (415 V AC) 200 kA | (440 V AC) 180 kA | (500 V AC) 150 kA | (690 V AC) 80 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 200 kA | (400 V AC) 200 kA | (415 V AC) 200 kA | (440 V AC) 180 kA | (500 V AC) 150 kA | (690 V AC) 80 kA
Rated Uninterrupted Current (Iu)
400 A
Release
PR222DS/P-LSI
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T5
Terminal Connection Type
Fixed Circuit-Breakers | Front
Test Voltage Max (Utest)
3500 V
Test Voltage at Industrial Frequency for 1 Minute
3500 V
Data Sheet, Technical Information
1SDC210004D0203
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T5
Instructions and Manuals
Installation instructions Tmax T5
Instructions and Manuals (Part 2)
ITSCE-RH0100001
Instructions and Manuals (Part 3)
Release PR222DS/P and PR222DS/PD T4-T5-T6
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39121100
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature → Business Impact → Application: The front-terminal fixed four‑pole design enables straightforward installation and fast servicing, reducing panel downtime and enabling safer, cleaner wiring in tight switchgear spaces for modern industrial plants. This translates to lower commissioning costs and quicker upgrades in transformer protection schemes. Feature → Business Impact → Application: PR222DS/P-LSI solid‑state release provides precise tripping performance and fast response, improving system reliability in critical distribution networks and enabling safer coordination with upstream protection. Apply this in high‑availability OEM panels and retrofit projects to minimize unplanned outages. Feature → Business Impact → Application: 320 A rated current with 690 V AC operation and a high rated short‑circuit capacity (Ics and Icu values up to 200 kA) supports robust protection for feeders and transformers, reducing fault propagation and equipment damage in demanding sites. Feature → Business Impact → Application: Low per‑pole power loss (10.6 W) and durable mechanical/electrical lifetimes (7000/20000 cycles) lower energy use and maintenance costs over the life of the installation, delivering measurable operating cost savings. Feature → Business Impact → Application: Comprehensive environmental and compliance data (RoHS, REACH, CMRT, CE) minimizes regulatory risk and simplifies procurement, especially for multi‑site projects and regulated industries. Feature → Business Impact → Application: Front‑terminal, fixed‑breaker design enhances compatibility with modular switchgear layouts and simplifies commissioning in existing T5 applications, supporting scalable expansions and easier field wiring.
Get a Quick Quote for a ABB 1SDA054392R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA054392R1?
Enquire Now
FAQs
The 1SDA054392R1 is specifically designed as a fixed four-pole MCCB with front terminals, simplifying wiring, access, and service in Tmax T switchgear. It reduces panel depth requirements and speeds up initial installation while keeping wiring tidy and accessible for maintenance.
Rated current is 320 A, rated operational voltage is 690 V AC, rated impulse withstand voltage is 8 kV, and it offers high fault‑current handling with Ics and Icu values up to 200 kA. It is suitable for 220–690 V distribution networks and provides robust transformer protection.
Yes. The product carries CE conformity and IEC standards, along with RoHS and REACH compliance declarations. These certifications help ensure regulatory alignment across European and global supply chains, simplifying procurement for regulated industries.
The PR222DS/P-LSI release is optimized for fast, accurate tripping in transformer protection and medium‑voltage distribution panels. It is well suited for T5 class applications in switchgear and motor or generator protection schemes, enabling reliable system security and fast fault isolation.
With electrical durability around 7000 cycles and mechanical durability near 20000 cycles, the unit supports long service life under 60 Hz operation. Regular inspections, front-terminal wiring checks, and adherence to installation instructions help preserve performance, while low per‑pole power loss (about 10.6 W) contributes to lower energy costs over the product life.
