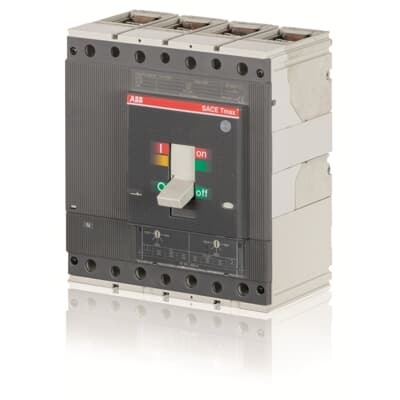

ABB 1SDA054455R1 Moulded Case Circuit Breaker - 8 kV Uimp
Part Number: 1SDA054455R1
Quick Summary
ABB 1SDA054455R1 Moulded Case Circuit Breaker protects power systems in industrial installations. Designed for front-terminal wiring in compact switchgear, it simplifies installation and maintenance in busy control panels. This Tmax T5 device carries CE conformity, RoHS and REACH declarations, plus CMRT and TSCA documentation to support global compliance. With a 4P fixed configuration and front-mount terminals, it enables safe wiring, fast testing, and reliable fault interruption. Its rated voltage of 690 V AC / 750 V DC and 400 A rating translate into predictable protection for transformers, MCCs, and other heavy-duty loads, delivering tangible reductions in downtime and lifecycle costs.
Product Information
Extended Description
1SDA054455R1 ABB: C.BREAKER TMAX T5V 400 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 400 I3=2000...4000 A
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T5 | Breakers - Packaging disposal information
E-Number (Finland)
3655319
EAN
8015644555597
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
186 mm
Product Net Height
205 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
5.8 kg
Package Level 1 Units
1 piece
Package Level 1 Width
248 mm
Package Level 1 Height
240 mm
Package Level 1 Depth / Length
285 mm
Package Level 1 Gross Weight
5.8 kg
Package Level 1 EAN
8015644555597
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T5
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
7000 cycle | 60 cycles per hour
Mechanical Durability
20000 cycle | 120 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 19.5 W
Rated Current (In)
400 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC | 750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 200 kA | (400 V AC) 200 kA | (415 V AC) 200 kA | (440 V AC) 180 kA | (500 V AC) 150 kA | (690 V AC) 80 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 200 kA | (400 V AC) 200 kA | (415 V AC) 200 kA | (440 V AC) 180 kA | (500 V AC) 150 kA | (690 V AC) 80 kA | (250 V DC) 2 Poles in Series 150 kA | (500 V DC) 2 Poles in Series 100 kA | (750 V DC) 3 Poles in Series 70 kA
Rated Uninterrupted Current (Iu)
400 A
Release
TMA
Release Type
TM
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T5
Terminal Connection Type
Fixed Circuit-Breakers | Front
Test Voltage Max (Utest)
3500 V
Test Voltage at Industrial Frequency for 1 Minute
3500 V
Data Sheet, Technical Information
1SDC210004D0203
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T5
GL Certificate
1SDL000163R0062
Instructions and Manuals
Installation instructions Tmax T5
Instructions and Manuals (Part 2)
ITSCE-RH0100001
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39121100
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Front-terminal, four-pole design simplifies wiring and reduces installation time, lowering field labor costs while improving fault clearance speed in switchgear assemblies. In practice, Tmax T5 devices mount in compact panels without additional adapters, enhancing serviceability in multi-bay racks. High current and voltage ratings—IN 400 A, Ui 1000 V, Uimp 8 kV, Ue 690 V AC / 750 V DC—enable protection for transformers, MCCs, and distribution networks with wide operating ranges, reducing the risk of miscoordination during faults. The unit delivers a rated short-circuit capacity up to 200 kA and a 5 kA short-time withstand, translating to robust protection for critical loads and greater system availability. Durability is built in with 20000 mechanical cycles and 7000 electrical cycles, supporting longer service life and lower maintenance costs. The device meets CE, RoHS, REACH, CMRT and TSCA declarations, supporting global compliance and streamlined procurement. Front-terminal mounting also improves wiring clarity and reduces commissioning time in field installations, while compatibility with Tmax T5 applications ensures predictable performance in new builds and retrofit projects.
Get a Quick Quote for a ABB 1SDA054455R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA054455R1?
Enquire Now
FAQs
The 4P fixed breaker uses front terminals for straightforward wiring in compact switchgear. Plan for clear access in the enclosure and ensure mounting supports Tmax T5 form factor and the 5.8 kg weight. Use appropriate torque on terminals and route cables to minimize thermal buildup while preserving fault clearance speed and diagnostic visibility.
Key specs include a rated current of 400 A, rated operational voltage of 690 V AC / 750 V DC, insulation voltage of 1000 V, and a rated impulse withstand of 8 kV. It supports up to 200 kA short-circuit current (Icu) at multiple voltages and offers 5 kA for 1 s short-time withstand, with 19.5 W power loss per pole.
Yes. The product is a four-pole, front-terminal moulded case breaker designed for Tmax T5 applications and suitable for transformer protection within switchgear and MCC environments. Its high Icu rating, solid front-access wiring, and robust short-circuit performance make it a dependable choice for transformer protection schemes.
The device carries CE conformity and RoHS/REACH declarations, plus CMRT and TSCA documentation. It aligns with international standards for electrical protection equipment, supporting global procurement and compliance programs for multinational facilities.
Minimum order quantity is 1 piece, with product net weight 5.8 kg. Packaging Level 1 dimensions are 248 mm wide by 240 mm high by 285 mm deep, and the Package Level 1 gross weight matches the net weight. These details support accurate logistics planning and framing of stocking strategies in procurement.
