ABB 1SDA057791R1 Air Circuit Breaker - UL 1066
Part Number: 1SDA057791R1
Quick Summary
ABB 1SDA057791R1 Air Circuit Breaker protects high‑current circuits in plant power distribution. Engineers often struggle with delivering reliable protection without nuisance trips in 2500 A systems. This unit is CE compliant, UL listed, and RoHS compliant, supporting global regulatory requirements and safe installation. In practice, operators benefit from predictable protection, easier commissioning, and reduced maintenance costs. The SACE Emax family alignment helps engineers consolidate spare parts and procurement across global sites, simplifying service and stocking while maintaining performance margins.
Product Information
Extended Description

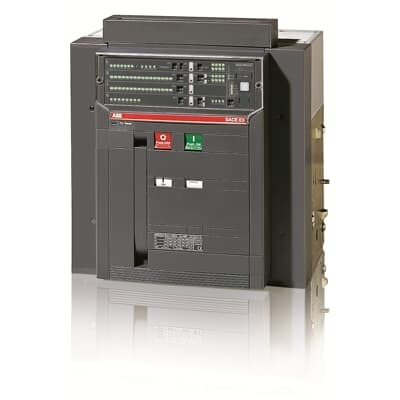

1SDA057791R1 ABB: SACE EMAX CIRCUIT-BREAKER E3V-A 2500A UL THREE-POLE FIXED WITH TERMINALS REAR HORIZONTAL OVERCURRENT RELEASE PR121/P-LSIG R2500 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Document availability on demand
Environmental Information
Product Environmental Information Emax
EAN
8015644600549
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
404 mm
Product Net Height
418 mm
Product Net Depth / Length
302 mm
Product Net Weight
60 kg
Package Level 1 EAN
8015644600549
Product Main Type
SACE Emax
Product Name
Air Circuit Breaker
Product Type
CB
Version
F
Current Type
AC
Electrical Durability
Ue =< 508 V 8000 cycle | Ue = 508 ... 635 V 8000 cycle | 30 cycles per hour
Mechanical Durability
15000 cycle | 30 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 205 W
Rated Current (In)
2500 A
Rated Operational Current (Ie)
2500 A
Rated Service Short-Circuit Breaking Capacity (Ics)
(240 V AC) 125 kA | (480 V AC) 125 kA | (600 V AC) 100 kA
Rated Uninterrupted Current (Iu)
2500 A
Rated Voltage (Ur)
600 V
Release
PR121/P-LSIG
Release Type
EL
Short-Circuit Performance Level
V
Standards
UL 1066
Sub-type
E3
Terminal Connection Type
Fixed Circuit-Breakers | Rear flat Horizontal
Interrupting Rating acc. to UL1066
(240 V AC) 125 kA | (480 V AC) 125 kA | (600 V AC) 100 kA
Data Sheet, Technical Information
New Emax - Low voltage power circuit breakers (UL version)
Declaration of Conformity - CE
1SDL000165R0015
Instructions and Manuals
UL Listed - Installation, service and maintenance instructions for low voltage air circuit-breakers
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
High current rating and a three‑pole fixed configuration with rear terminals deliver robust protection for heavy loads, reducing oversizing and enabling selective coordination in the right panel environments. This improves system availability for critical processes and motor drives in manufacturing and process industries. PR121/P-LSIG release provides precise tripping characteristics, lowering nuisance trips and enabling tailored protection curves for feeders and motors. The device’s electrical durability of up to 8000 cycles and mechanical durability of 15000 cycles translate into longer service life and lower preventive maintenance costs in harsh industrial settings. With a 125 kA short‑circuit rating at typical distribution voltages, upstream equipment is protected from damaging fault energies, supporting safe downtime recovery. RoHS and REACH compliance, CE conformity, and UL 1066 certification simplify procurement and cross‑border installations while the rear‑horizontal terminal arrangement speeds installation and wiring literacy for technicians.
Get a Quick Quote for a ABB 1SDA057791R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA057791R1?
Enquire Now
FAQs
This model uses fixed circuit-breaker terminals with rear horizontal entry, which streamlines wiring in panel boards. Ensure appropriate torque on terminal lugs, verify conductor cross‑section, and maintain clearances per UL 1066 guidance to prevent overheating and ensure service access.
Rated at 2500 A with a 600 V nominal voltage, it offers a 125 kA short‑circuit rating at 240/480/600 V and uses the PR121/P‑LSIG release. It is a 3P device designed for AC circuits with fixed terminals, delivering reliable protection for large feeders and motors.
Yes. The 3P fixed configuration, high current rating, and PR121/P‑LSIG release support heavy loads common in MCCs and data centers. The compatibility with SACE Emax components simplifies integration, maintenance planning, and spare parts availability.
The device is CE compliant, UL 1066 listed, and RoHS compliant, with documentation available for reach and environmental declarations. WEEE category classification applies for end‑of‑life handling, easing international procurement and compliance workflows.
Long mechanical and electrical durability (up to 15000 and 8000 cycles respectively) reduces maintenance frequency and replacement risk. Higher reliability translates to lower downtime, improved uptime for critical lines, and favorable total cost of ownership when integrated into a robust SACE Emax ecosystem.
