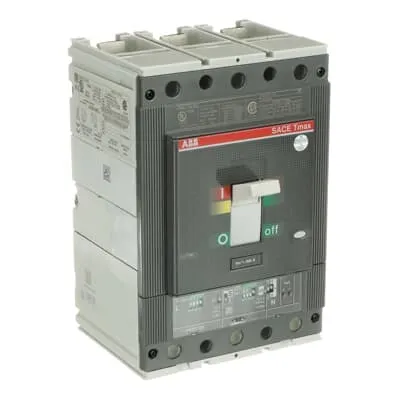

ABB 1SDA058157R1 Moulded Case Circuit Breaker - UL/CSA
Part Number: 1SDA058157R1
Quick Summary
ABB 1SDA058157R1 Moulded Case Circuit Breaker is a 3‑pole protection device for reliable power distribution in industrial plants. Suppliers and maintenance teams often struggle with front-terminal wiring access and ensuring a reliable trip mechanism under peak loads. This ABB unit is UL and CSA listed with CE conformity, plus RoHS and REACH compliance to streamline global procurement. Its robust front-terminal design speeds wiring and service, reducing installation time and panel downtime. With a 400 A rating and 600 V AC capability, it protects MCCs, switchboards, and machine feeders while simplifying spares management. The combination of safety certifications and a solid-state release delivers predictable protection, supporting uptime and total cost of ownership improvements.
Product Information
Extended Description
1SDA058157R1 ABB: C.BREAKER TMAX T5S 400 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 400
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
SCIP
cf78c2a7-8aec-469b-ab44-bfdcb1c11dc1 Italy (IT)
Simplified SCIP
bdd8d5ce-b445-4aa7-9edc-027df75293c4 Hungary (HU) | fa60abbc-ea45-4848-a6a0-c0174adc99f6 Bulgaria (BG) | a1d6885f-a2a4-4ef3-b755-4d6a36dcdcda Germany (DE) | ee05cc46-75e6-42b6-92d9-53576a1d93fe Poland (PL) | 765b276a-4fff-468e-9054-93120a5f0024 Netherlands (NL) | 1d3f5caf-d1f2-4bb5-9754-4d763714fc60 Belgium (BE) | 0ed9c437-811a-417b-b8a2-182f00db22f8 Germany (DE) | 31dc504a-493e-4dc7-9195-94005b2130ab Czech Republic (CZ) | 1b9047d7-4fc1-404c-9d67-c9aa883f3132 Germany (DE) | 686396fb-e04d-4143-be1d-4a7564a0b113 Denmark (DK) | e97bb4aa-9142-456c-9731-1d32acdff96d Norway (NO) | 8effe6c2-ea52-4170-9671-b03d9dee5e1f Finland (FI) | 4dd3cbdb-6086-4e50-9e35-103d3e15fa9c Poland (PL) | ec4c5b72-a8fd-47d1-a889-c3482a18843b Croatia (HR) | 2e5a7159-6805-4c5a-af9c-6333e0945e1f Sweden (SE) | 8c902234-59d6-4fce-b00a-c1496ea4c96e France (FR) | 5a8a9274-831e-4f95-89b4-9c552e2ce4c7 Hungary (HU) | 67749b41-976c-409a-99c7-50b088006abe Belgium (BE) | 99d56714-558a-4484-b24f-d71633e911ab Germany (DE) | dae7d4a3-4e45-40bb-b47e-879917c1ff45 Germany (DE) | 1685a0aa-7a1e-40de-bce4-70f5e50d84f9 Estonia (EE) | d8a711ae-94b0-4af1-894a-4c0193375aa8 Greece (GR) | 35543427-ccec-449c-9907-521273edf8bc Sweden (SE) | b8dcb7e9-55f8-4b6f-93a0-571ad192e353 Portugal (PT) | 651f6c56-1447-44d2-be85-7fbb28ec498e Spain (ES) | e4c562a2-6679-4a55-b1b6-9feaa8cd6c6b Poland (PL) | f868adb9-3315-43bd-9894-117ab1898e1c France (FR)
Environmental Information
Product Environmental Information Tmax T5 | Breakers - Packaging disposal information
Order Code US and Canada
T5S400BW
EAN
8015644604226
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
140 mm
Product Net Height
205 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
5.1 kg
Package Level 1 EAN
8015644604226
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T5
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Mechanical Durability
20000 cycle | 120 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 16.5 W
Rated Current (In)
400 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
600 V AC
Rated Uninterrupted Current (Iu)
400 A
Release
PR221DS-LS/I
Release Type
EL
Short-Circuit Performance Level
S
Standards
UL
Sub-type
T5
Terminal Connection Type
Fixed Circuit-Breakers | Front
Test Voltage Max (Utest)
3500 V
Interrupting Rating acc. to UL489
(240 V AC) 100 kA | (480 V AC) 35 kA | (600 V AC) 25 kA
Data Sheet, Technical Information
9AKK105713A5947
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T5
GL Certificate
1SDL000163R0062
Instructions and Manuals
Tmax. T Generation - Low voltage molded case circuit breakers up to 1200 A - UL 489 and CSA C22.2 Standard
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Three-pole fixed construction provides consistent electrical protection across feeders, reducing nuisance trips and improving panel reliability in demanding environments such as manufacturing and process industries. This translates to shorter commissioning times and lower downtime costs during maintenance windows. The front-terminal design enables faster wiring, easier field servicing, and safer access for technicians, resulting in measurable savings in installation labor and downtime. The electronic release PR221DS-LS/I offers precise tripping and improved selective coordination with downstream protection devices, enhancing system safety and reducing the risk of unnecessary outages. With a rated current of 400 A and a rated operational voltage of 600 V AC, this device supports robust power distribution for large machines, MCCs, and transformer feeders while maintaining compact panel footprints. RoHS and REACH compliance, together with CMRT and SCIP data, streamline global sourcing and facilitate regulatory reporting. Built for durability, the MCCB delivers up to 20000 mechanical cycles, ensuring long service life in high-demand installations and minimizing replacement intervals. Compatibility with the Tmax T family of molded case breakers provides a scalable path for future upgrades and spare-part commonality across facilities.
Get a Quick Quote for a ABB 1SDA058157R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA058157R1?
Enquire Now
FAQs
Install as a fixed 3P MCCB with front-terminal connections, ensuring proper alignment and secure terminal tightening per panel guidelines. The PR221DS-LS/I release should be engaged to verify correct trip settings and coordination with downstream protective devices.
Rated current is 400 A, rated operational voltage is 600 V AC, rated insulation voltage is 1000 V, and the device withstands up to 8 kV. It supports 3P operation with front-terminal connections and 20000 mechanical cycles.
Yes. Interrupting ratings per UL489 are 100 kA at 240 V, 35 kA at 480 V, and 25 kA at 600 V, making it suitable for high-energy fault protection in industrial panels.
The device is UL listed, CSA listed, and CE compliant, with RoHS and REACH declarations, CMRT data, and SCIP registrations supporting global sourcing and sustainability reporting.
Typical applications include MCC panels, transformer protection, and machine feeders in manufacturing, process, and utility environments where reliable protection, quick installation, and easy maintenance are priorities.
