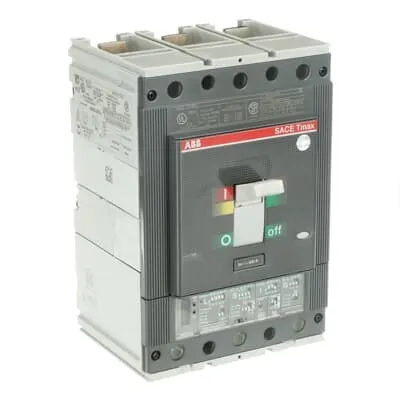

ABB 1SDA061838R1 Moulded Case Circuit Breaker - PR222DS/P-LSIG
Part Number: 1SDA061838R1
Quick Summary
Moulded Case Circuit Breaker protects power distribution in control panels from overloads and short circuits. This model aims to reduce nuisance trips and downtime in challenging industrial environments. UL/CSA certification, CE conformity, and RoHS/REACH declarations ensure global compliance and market access. The 3-pole design, 600 A rating, and front-terminal wiring support dense panel layouts and straightforward installation. Coupled with a PR222DS/P-LSIG release and clear technical documentation, it delivers reliable protection with predictable lifecycle costs for mission-critical automation projects. This device is designed for safe front-terminal installations and supports high-energy applications in distributed control systems. Engineers benefit from standardized packaging and a documented Uimp, Ui, and UL489 performance for faster approvals.
Product Information
Extended Description
1SDA061838R1 ABB: C.BREAKER TMAX T5N 600 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSIG R 600
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T5 | Breakers - Packaging disposal information
Order Code US and Canada
T5N600EW
EAN
8015644643638
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
140 mm
Product Net Height
205 mm
Product Net Depth / Length
103.5 mm
Product Net Weight
5.1 kg
Package Level 1 EAN
8015644643638
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T5
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Mechanical Durability
20000 cycle | 120 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 37.1 W
Rated Current (In)
600 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
600 V AC
Rated Uninterrupted Current (Iu)
600 A
Release
PR222DS/P-LSIG
Release Type
EL
Short-Circuit Performance Level
N
Standards
UL
Sub-type
T5
Terminal Connection Type
Fixed Circuit-Breakers | Front
Test Voltage Max (Utest)
3500 V
Interrupting Rating acc. to UL489
(240 V AC) 65 kA | (480 V AC) 25 kA | (600 V AC) 18 kA
Data Sheet, Technical Information
9AKK105713A5947
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T5
Instructions and Manuals
Tmax. T Generation - Low voltage molded case circuit breakers up to 1200 A - UL 489 and CSA C22.2 Standard
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)
4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
UNSPSC
39121616
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature 1: 3-pole design with 600 A rated current and front-terminal wiring. Business Impact: Simplifies wiring, reduces field installation time, and enables compact panel layouts while maintaining robust protection. Application: Dense control cabinets and distribution panels in automated manufacturing lines. This configuration supports reliable protection across multiple feeders and minimizes panel footprint. Feature 2: Release PR222DS/P-LSIG with fixed circuit-breaker architecture. Business Impact: Delivers precise tripping characteristics and predictable response under fault conditions, lowering risk of undetected faults. Application: SACE Tmax T protection schemes in industrial plants requiring fast, repeatable protection. Feature 3: Mechanical durability rated at 20000 cycles. Business Impact: Extends service life and reduces maintenance windows, lowering total cost of ownership. Application: High-cycling automation lines and critical process control loops where uptime matters. Feature 4: High insulation and withstand capabilities (Ui 1000 V, Uimp 8 kV, 3500 V test voltage). Business Impact: Enhances safety margins and enables commissioning across diverse supply networks. Application: Protective devices near transformers and high-energy loads in switchgear. Feature 5: Compliance and environmental information (RoHS, REACH, CMRT, TSCA). Business Impact: Supports global supply chain compliance and easy regulatory approvals. Application: Global deployments and multi-region projects requiring documented material compliance. Feature 6: Front-terminal fixed connection and UL/CSA standards. Business Impact: Facilitates maintenance, simplifies replacement, and ensures compatibility with standard industrial enclosures. Application: Panel builders seeking reliable plug-and-play protection with recognized certifications.
