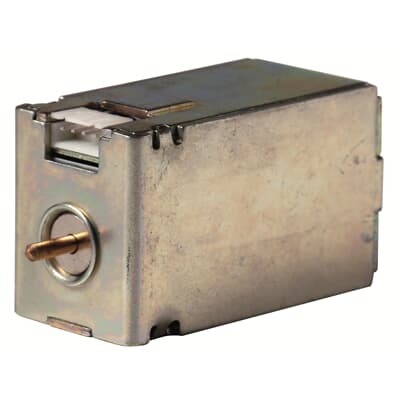

ABB 1SDA062093R1 Accessory - UVR 380-400V AC
Part Number: 1SDA062093R1
Quick Summary
ABB 1SDA062093R1 is an under-voltage release accessory for SACE Tmax T switchgear, delivering precise UVR control to prevent nuisance trips and ensure coordinated protection in motor and drive circuits. In practice, engineers struggle with voltage dips during peak load or startup, which can cause unnecessary outages and costly downtime. This solution carries CE declarations, RoHS compliance, and TSCA/CMRT reporting, reinforcing regulatory alignment and supplier transparency. By aligning with T7-T7M-X1 configurations and SACE Tmax T product class, it supports streamlined procurement, simpler stocking, and reduced lifecycle costs for panel builders and maintenance teams alike.
Product Information
Extended Description
1SDA062093R1 ABB: UVR T7-T7M-X1 380...400Va.c.
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Breakers - Packaging disposal information
Order Code US and Canada
KT7XU2
EAN
8015644646332
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Product Net Weight
1 kg
Package Level 1 Units
1 piece
Package Level 1 Width
105 mm
Package Level 1 Height
55 mm
Package Level 1 Depth / Length
135 mm
Package Level 1 Gross Weight
0.15 kg
Package Level 1 EAN
8015644646332
Product Main Type
Accessories for Tmax T
Product Name
Accessory
Product Type
Accessory
Suitable For
T7, X1
Suitable for Product Class
SACE Emax | SACE Tmax T
Configuration Type
Loose or configurable
Current Type
AC
Rated Voltage (Ur)
380 ... 400 V AC
Standards
IEC
Data Sheet, Technical Information
SACE Tmax. T Generation. Low voltage moulded-case circuit-breakers from 250 A up to 1600 A | U.S. Catalog - SACE Tmax for special applications. Adaptability, versatility and complete freedom
Declaration of Conformity - CE
Refer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals
UVR - Undervoltage release T7-T7M-X1
ETIM 8
EC001022 - Under voltage coil
ETIM 9
EC001022 - Under voltage coil
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370417
Feature → Business Impact → Application: The UVR function minimizes nuisance trips by maintaining stable undervoltage protection, reducing unplanned downtime across critical drives and motors in industrial facilities. This translates to improved line uptime, lower maintenance costs, and predictable production schedules. Application: Best used in SACE Tmax T panels where dependable undervoltage protection is essential for high-availability manufacturing lines. Feature → Business Impact → Application: Rated for 380-400 V AC with AC current type, it integrates seamlessly with existing Tmax T ecosystems, delivering compatible timing and release characteristics that protect downstream equipment. Application: Suitable for T7 and X1 module configurations in heavy industries, including packaging, metals, and chemical processing, where protection coordination matters.
