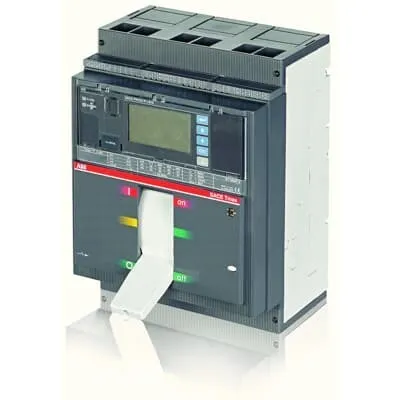

ABB 1SDA062707R1 Moulded Case Circuit Breaker - 690V
Part Number: 1SDA062707R1
Quick Summary
ABB 1SDA062707R1 Moulded Case Circuit Breaker is a high-capacity protective device for industrial switchgear and power distribution. In fast-moving plants, unexpected faults and nuisance trips can drive unplanned downtime and heavy maintenance costs. These units carry CE conformity, RoHS and REACH declarations, and IEC-based standards, reinforced by the SACE Tmax T lineage, for reliable performance. With a front-terminal design, solid-state release option PR232/P-LSI, and low per-pole power loss, the MCCB supports compact panels and longer service life. For procurement teams, the 800 A rating, 3P configuration, and 690 V AC capability map directly to common industrial feeders and transformer protection strategies.
Product Information
Extended Description
1SDA062707R1 ABB: C.BREAKER TMAX T7V 800 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR232/P-LSI R 800
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T7 | Breakers - Packaging disposal information
EAN
8015644652562
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
210 mm
Product Net Height
268 mm
Product Net Depth / Length
154 mm
Product Net Weight
9.7 kg
Package Level 1 Units
1 piece
Package Level 1 Width
280 mm
Package Level 1 Height
350 mm
Package Level 1 Depth / Length
360 mm
Package Level 1 Gross Weight
11.2 kg
Package Level 1 EAN
8015644652562
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T7
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
3000 cycle | 60 cycles per hour
Mechanical Durability
10000 cycle | 60 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 32 W
Rated Current (In)
800 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 45 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 60 kA
Rated Uninterrupted Current (Iu)
800 A
Release
PR232/P-LSI
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T7
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
1SDC210015D0201
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T7
GL Certificate
1SDL000163R0056
Wiring Diagram
Wiring diagram T7-T7M
Instructions and Manuals
1SDC210015D0201
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39121100
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature → Business Impact → Application: The 3P 800 A Moulded Case Circuit Breaker provides robust overload protection with a compact footprint, simplifying panel wiring and reducing assembly time in harsh plant environments; this translates to lower installation costs and faster commissioning in electrical cabinets. The PR232/P-LSI solid-state release enhances trip accuracy and fault discrimination, improving safety and uptime for critical feeders such as motors and transformers. With front-terminal access, wiring becomes easier in tight panels, supporting easier upgrades and maintenance during PM windows. Electrical durability of 3000 cycles and mechanical durability of 10000 cycles deliver longer service life in demanding factories, reducing replacement intervals and total cost of ownership. The device’s 8 kV impulse rating, 690 V operating voltage, and 45 kA Ics (at 690 V) plus 60 kA Icu enable reliable coordination in medium- and high-power distribution networks. RoHS, REACH, and CMRT declarations provide regulatory confidence for global deployments, while a 32 W per pole power loss helps minimize standby energy waste. Compatibility with Tmax T family and front-face wiring diagrams further streamline installation and lifecycle support, supported by standard access to datasheet 1SDC210015D0201.
Get a Quick Quote for a ABB 1SDA062707R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA062707R1?
Enquire Now
FAQs
This is a fixed, three-pole MCCB with front-terminal connections. It is designed for 690 V AC systems and 800 A continuous operation, suitable for panel installations that require straightforward wiring, easy access to terminals, and compatibility with Tmax T family configurations.
Key specs include rated current 800 A, rated operational voltage 690 V AC, rated insulation voltage 1000 V, eight-kilovolt impulse withstand (Uimp) and 32 W per pole power loss. Short-circuit performance includes Ics up to 45 kA at 690 V and Icu up to 60 kA at 690 V, with Icw 15 kA for 1 s.
Yes. The product carries CE conformity and REACH/RoHS declarations, along with CMRT and TSCA disclosures where applicable, aligning with EU directives and global environmental compliance expectations.
Its 3P design, 800 A rating, 690 V capability, front-terminal wiring, and PR232/P-LSI release deliver reliable fault interruption with fast coordination. The device supports common industrial feeder configurations and transformer protections, backed by documented electrical durability and mechanical endurance.
Electrical durability is rated at 3000 cycles and mechanical durability at 10000 cycles under standard operating conditions, with 32 W per pole loss. These metrics translate to longer service intervals and lower total cost of ownership in demanding settings.
