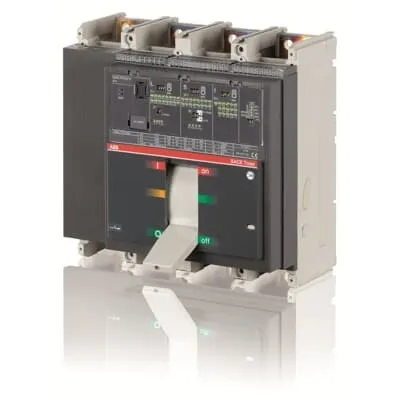

ABB 1SDA062715R1 Moulded Case Circuit Breaker - PR232/P-LSI
Part Number: 1SDA062715R1
Quick Summary
ABB 1SDA062715R1 Moulded Case Circuit Breaker provides reliable overcurrent protection for industrial power distribution. Engineers often struggle with complex panel wiring, lengthy commissioning, and front-terminal accessibility during maintenance. This device carries CE certification, RoHS compliance, and REACH declarations, with IEC standards guiding its performance, offering peace of mind in regulated environments. By delivering a high 800 A rating, a 690 V AC operating voltage, and a robust 200 kA short-circuit capacity, it minimizes downtime and supports safe operation. The design also aligns with Tmax T7 protection families, enabling straightforward integration into existing switchgear and transformer feeders, while simplifying procurement and service workflows through standardized interfaces and front-terminal installation.
Product Information
Extended Description
1SDA062715R1 ABB: C.BREAKER TMAX T7V 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR232/P-LSI R 800
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T7 | Breakers - Packaging disposal information
EAN
8015644652647
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
280 mm
Product Net Height
268 mm
Product Net Depth / Length
154 mm
Product Net Weight
12.5 kg
Package Level 1 Units
1 piece
Package Level 1 Width
360 mm
Package Level 1 Height
350 mm
Package Level 1 Depth / Length
360 mm
Package Level 1 Gross Weight
14 kg
Package Level 1 EAN
8015644652647
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T7
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
3000 cycle | 60 cycles per hour
Mechanical Durability
10000 cycle | 60 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 32 W
Rated Current (In)
800 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 45 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 60 kA
Rated Uninterrupted Current (Iu)
800 A
Release
PR232/P-LSI
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T7
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
1SDC210015D0201
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T7
GL Certificate
1SDL000163R0056
Wiring Diagram
Wiring diagram T7-T7M
Instructions and Manuals
1SDC210015D0201
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39121100
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: Four-pole fixed front-terminal design enables safe, straightforward wiring. Business Impact: Reduces field wiring errors and speeds panel assembly, cutting commissioning time by measurable amounts. Application: Suited for main feeders, motor starters, and transformer protection within 690 V systems. Feature: High fault-current ratings including Ics up to 200 kA and Icu up to 60-200 kA depending on voltage. Business Impact: Improves fault clearance reliability and system resilience under peak fault conditions. Application: Protects feeders and transformers in heavy industrial layouts with tight coordination requirements. Feature: PR232/P-LSI release provides precise, dependable tripping with LSI logic. Business Impact: Enhances selectivity, minimizes unnecessary outages, and simplifies relay coordination. Application: Fits Tmax T7 installations in complex distribution networks. Feature: Front-terminal fixed connections and robust mechanical design. Business Impact: Eases wiring, reduces installation risk, and supports long-term accessibility for maintenance. Application: Ideal for new builds and retrofits in switchgear, machine rooms, and utility feeders. Feature: Regulatory and environmental compliance integration. Business Impact: Ensures RoHS, REACH, CMRT, and TSCA readiness across global supply chains. Application: Facilitates international procurement and sustainable manufacturing programs.
Get a Quick Quote for a ABB 1SDA062715R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA062715R1?
Enquire Now
FAQs
The unit uses fixed front-terminal connections for four-pole MCCB installations, enabling safe wiring, minimal field adapters, and easier panel integration. Its design supports standard mounting in switchgear encloses and motor control centers, simplifying wiring harness routing and reducing commissioning time.
Rated current is 800 A with 690 V AC operating voltage, Ui of 1000 V, and Uimp up to 8 kV. It delivers Ics up to 200 kA and Icu up to 60–200 kA depending on voltage, plus 3000 electrical and 10000 mechanical durability cycles for long-life protection.
Yes. The 1SDA062715R1 is designed for transformer feeders within Tmax T7 families, offering high Ics/Icu ratings and front-terminal accessibility, which supports reliable transformer protection and straightforward coordination with upstream relays and circuit-breakers.
It carries IEC standards with CE declaration, RoHS and REACH declarations, CMRT for conflict minerals, and TSCA compliance, along with WEEE classification. These certifications support global deployment and regulatory compliance across manufacturing, data centers, and utilities.
With 10000 mechanical cycles and 3000 electrical cycles, the MCCB offers a long service life, reduced maintenance downtime, and predictable performance. Front-terminal design also simplifies replacement and wiring checks, delivering better total cost of ownership in industrial environments.
