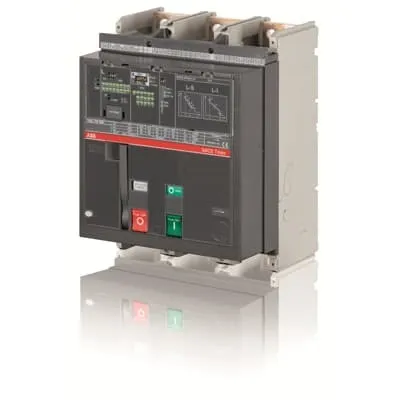

ABB 1SDA062722R1 Moulded Case Circuit Breaker - 800 A, 3P, PR231/P-LS/I, IEC
Part Number: 1SDA062722R1
Quick Summary
ABB 1SDA062722R1 Moulded Case Circuit Breaker protects electrical circuits in industrial power distribution systems. Maintenance teams often struggle with complex releases and hard-to-access front terminals, leading to longer downtime. The device complies with IEC standards and carries CE, RoHS, and REACH declarations, while the PR231/P-LS/I stored-energy release enhances safety. Its 800 A rating, 690 V AC operation, and front-terminal fixed configuration deliver dependable protection with straightforward panel integration. Designed for Tmax T-series installations, it reduces lifecycle costs and supports scalable protection across industrial facilities, delivering measurable reliability gains for critical processes.
Product Information
Extended Description
1SDA062722R1 ABB: C.BREAKER TMAX T7V 800 FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 800
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T7 | Breakers - Packaging disposal information
EAN
8015644652715
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
210 mm
Product Net Height
268 mm
Product Net Depth / Length
178 mm
Product Net Weight
11 kg
Package Level 1 Units
1 piece
Package Level 1 Width
280 mm
Package Level 1 Height
350 mm
Package Level 1 Depth / Length
360 mm
Package Level 1 Gross Weight
12.5 kg
Package Level 1 EAN
8015644652715
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T7M
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
3000 cycle | 60 cycles per hour
Mechanical Durability
10000 cycle | 60 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 32 W
Rated Current (In)
800 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 45 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 60 kA
Rated Uninterrupted Current (Iu)
800 A
Release
PR231/P-LS/I
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T7
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
1SDC210015D0201
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T7
GL Certificate
1SDL000163R0056
Wiring Diagram
Wiring diagram T7-T7M
Instructions and Manuals
1SDC210015D0201
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature → Business Impact → Application: The 3-pole MCCB architecture with a stored-energy PR231/P-LS/I release enables fast, reliable tripping and safer maintenance, reducing unplanned downtime in critical power feeds and switchgear. Application: suitable for 3-phase distribution boards that require quick isolation under fault conditions, improving overall plant uptime. Feature → Business Impact → Application: 800 A rated current paired with high short-circuit withstand capacities (Ics up to 200 kA at applicable voltages) reduces gear-level fault propagation and protects transformers and feeders in heavy-load environments. Application: ideal for industrial power distribution panels and motor control centers demanding robust fault protection. Feature → Business Impact → Application: 690 V AC operating voltage with 1000 V insulation voltage broadens compatibility across medium-voltage installations, minimizing engineering changes and enabling plug-in upgrades. Application: supports retrofit projects and new builds in process industries. Feature → Business Impact → Application: front-terminal fixed connection simplifies wiring and panel mounting, accelerating installation and reducing assembly errors. Application: advantageous in tight control panels and retrofit applications where space and accessibility are at a premium. Feature → Business Impact → Application: RoHS and REACH declarations, along with IEC standards compliance, ensure regulatory alignment and sustainability in manufacturing. Application: supports supplier compliance programs and customer audits in automotive, chemical, and energy sectors. Feature → Business Impact → Application: mechanical durability (up to 10000 cycles) and electrical durability (up to 3000 cycles @ 60 cycles/hour) extend service intervals and lower maintenance costs. Application: beneficial for high-cycle protection scenarios in continuous operation environments.
Get a Quick Quote for a ABB 1SDA062722R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA062722R1?
Enquire Now
FAQs
Yes. The unit is designed as a fixed circuit-breaker with front terminals, enabling straightforward wiring and mounting in standard switchgear and control panels. This compatibility supports quick retrofits and clean, accessible terminations, reducing installation time and wiring errors.
The breaker is rated for 800 A, operates at 690 V AC, and offers 1000 V rated insulation. It provides up to 8 kV of impulse withstand voltage and a service short-circuit capacity up to 200 kA (dependent on voltage), with 3 poles and a PR231/P-LS/I release for stored-energy operation.
Yes. The ABB Tmax T7 family including 1SDA062722R1 carries a CE Declaration of Conformity and RoHS/REACH declarations, aligning with European regulatory requirements and sustainability targets for electrical protection devices.
Front-terminal design simplifies wiring access, reduces panel fill difficulty, and speeds up installation in new builds or retrofits. It also supports safer maintenance by keeping wiring operations visible and reachable without disassembling the enclosure.
PR231/P-LS/I is a stored-energy release that enables rapid, reliable tripping. The device offers high mechanical (10,000 cycles) and electrical durability (3,000 cycles), supporting longer service intervals and predictable maintenance planning in demanding industrial environments.
