ABB 1SDA062723R1 Moulded Case Circuit Breaker - IEC
Part Number: 1SDA062723R1
Quick Summary
ABB 1SDA062723R1 Moulded Case Circuit Breaker provides reliable overcurrent protection for industrial switchgear and power distribution panels. This three-pole, fixed breaker with front terminals and a stored-energy release is designed for fast, safe installation and straightforward maintenance. A common challenge is wiring efficiency and safe operation during fault events; the front-access terminals and PR232/P-LSI release help reduce commissioning time and risk. The product carries IEC standards compliance with CE declarations, RoHS and REACH declarations, and a GL certificate, supporting regulatory alignment across sites. By combining rugged construction with clear labeling and compact packaging, it delivers low total cost of ownership while maintaining high protection levels in demanding environments. Ideal for Tmax T7 applications in manufacturing and utilities.
Product Information
Extended Description

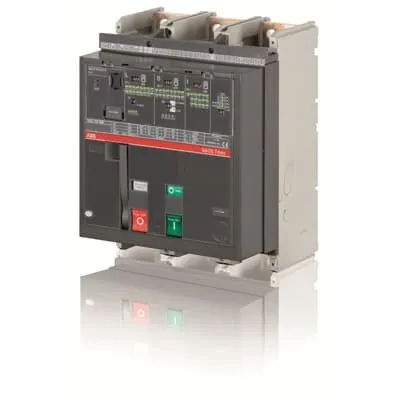

1SDA062723R1 ABB: C.BREAKER TMAX T7V 800 FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR232/P-LSI R 800
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T7 | Breakers - Packaging disposal information
Order Code US and Canada
T7MVFA3AC000000XX
EAN
8015644652722
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
210 mm
Product Net Height
268 mm
Product Net Depth / Length
178 mm
Product Net Weight
11 kg
Package Level 1 Units
1 piece
Package Level 1 Width
280 mm
Package Level 1 Height
350 mm
Package Level 1 Depth / Length
360 mm
Package Level 1 Gross Weight
12.5 kg
Package Level 1 EAN
8015644652722
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T7M
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
3000 cycle | 60 cycles per hour
Mechanical Durability
10000 cycle | 60 cycles per hour
Number of Poles
3P
Power Loss
at Rated Operating Conditions per Pole 32 W
Rated Current (In)
800 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 45 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 60 kA
Rated Uninterrupted Current (Iu)
800 A
Release
PR232/P-LSI
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T7
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
1SDC210015D0201
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T7
GL Certificate
1SDL000163R0056
Wiring Diagram
Wiring diagram T7-T7M
Instructions and Manuals
1SDC210015D0201
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Feature: High current rating and 3P construction. Business Impact: Enables protection of large motors, transformers and feeders with minimal nuisance tripping, reducing downtime. Application: Heavy industry switchgear and distribution panels. Feature: Front terminals and fixed circuit-breaker design. Business Impact: Simplifies wiring and commissioning, improves accessibility for servicing and maintenance, and reduces installation time. Application: New installations and retrofit projects in control cabinets. Feature: PR232/P-LSI stored-energy release. Business Impact: Delivers precise, reliable tripping with safe manual handling during maintenance. Application: Critical protection schemes in MCCs and transformer yards. Feature: High short-circuit and withstand ratings. Business Impact: Maintains system integrity in fault events across a range of voltages; supports high fault-current environments without cascading failures. Application: Industrial facilities with substantial fault-current potential. Feature: Compliance and environmental declarations (IEC, CE, RoHS, REACH, GL). Business Impact: Eases regulatory audits and supplier qualification, enabling global procurement with confidence. Application: Global manufacturing operations and multi-site projects. Feature: Power loss and efficiency metrics (32 W per pole). Business Impact: Better energy accounting and reduced running costs over the lifecycle. Application: Continuous operation in power-hungry installations.
