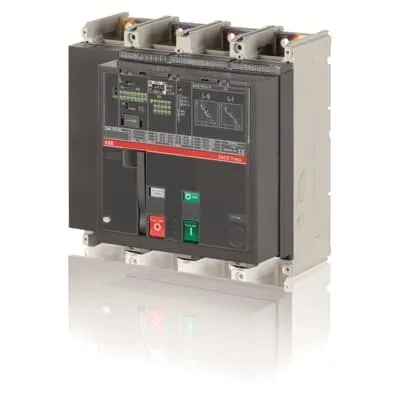

ABB 1SDA062729R1 Moulded Case Circuit Breaker - 60 kA @690V
Part Number: 1SDA062729R1
Quick Summary
Moulded Case Circuit Breaker ABB 1SDA062729R1 provides reliable protection for industrial power distribution and motor circuits. Many engineers struggle with short‑circuit events and unplanned downtime during high‑load starts, especially in retrofit projects. It adheres to IEC standards, carries a CE declaration of conformity, and meets RoHS and CMRT requirements, supporting global sourcing and compliance reporting. Designed for seamless integration with the SACE Tmax T family, this device offers front‑terminal wiring, a fixed front connection, and a robust 4P configuration with a PR231/P‑I release for fast, safe operation. The solution delivers scalable protection, reduced maintenance costs, and improved system uptime in harsh industrial environments.
Product Information
Extended Description
1SDA062729R1 ABB: C.BREAKER TMAX T7V 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-I R 800
Environmental Product Declaration - EPD
NoDecNee
REACH Declaration
REACh Declaration ABB Sace circuit breakers
RoHS Information
RoHS Declaration ABB Sace circuit breakers
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration
Environmental Information
Product Environmental Information Tmax T7 | Breakers - Packaging disposal information
EAN
8015644652784
Minimum Order Quantity
1 piece
Customs Tariff Number
85362090
Product Net Width
280 mm
Product Net Height
268 mm
Product Net Depth / Length
178 mm
Product Net Weight
14 kg
Package Level 1 Units
1 piece
Package Level 1 Width
360 mm
Package Level 1 Height
350 mm
Package Level 1 Depth / Length
360 mm
Package Level 1 Gross Weight
15.5 kg
Package Level 1 EAN
8015644652784
Product Main Type
SACE Tmax T
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Suitable For
T7M
Suitable for Product Class
Moulded Case Circuit Breakers
Version
F
Electrical Durability
3000 cycle | 60 cycles per hour
Mechanical Durability
10000 cycle | 60 cycles per hour
Number of Poles
4P
Power Loss
at Rated Operating Conditions per Pole 32 W
Rated Current (In)
800 A
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 45 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(220 V AC) 200 kA | (230 V AC) 200 kA | (380 V AC) 150 kA | (400 V AC) 150 kA | (415 V AC) 150 kA | (440 V AC) 130 kA | (500 V AC) 100 kA | (690 V AC) 60 kA
Rated Uninterrupted Current (Iu)
800 A
Release
PR231/P-I
Release Type
EL
Short-Circuit Performance Level
V
Standards
IEC
Sub-type
T7
Terminal Connection Type
Fixed Circuit-Breakers | Front
Data Sheet, Technical Information
1SDC210015D0201
Declaration of Conformity - CE
EC Declaration of Conformity Tmax T7
GL Certificate
1SDL000163R0056
Wiring Diagram
Wiring diagram T7-T7M
Instructions and Manuals
1SDC210015D0201
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Four-pole fixed-front design with 800 A rated current enables compact switchgear integration, reduces wiring complexity, and improves heat management for reliable operation. This translates to faster installation, easier panel planning, and lower total cost of ownership in motor control centers and distribution boards. The PR231/P‑I release with a stored-energy mechanism enhances trip accuracy and reliability, minimizing nuisance trips in critical power circuits and improving plant safety. With Ics up to 200 kA at 220–230 V and up to 60 kA at 690 V, it delivers robust fault tolerance across voltage classes, safeguarding transformers and feeders from severe faults. Rated operational voltage of 690 V AC and Ui of 1000 V ensure safe switching and adequate insulation in medium-voltage environments. Power loss of 32 W per pole supports energy efficiency in continuous operation, while mechanical and electrical durability (10,000 and 3,000 cycles respectively) reduce maintenance and lifecycle costs in harsh environments. Front terminal connections simplify wiring, expedite commissioning, and improve reliability in tight panel spaces, while RoHS, CMRT, and WEEE compliance streamline global procurement and sustainability reporting. This MCCB fits seamlessly within ABB’s SACE Tmax T ecosystem, enabling scalable protection upgrades and consistent performance across older and new installations.
Get a Quick Quote for a ABB 1SDA062729R1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SDA062729R1?
Enquire Now
FAQs
The 1SDA062729R1 uses fixed front-terminal connections in a 4P configuration. This arrangement simplifies wiring in compact switchgear and MCCs, reduces wiring errors during installation, and provides a robust mechanical interface suitable for front-entry wiring in current-rich industrial panels.
At 690 V, the device provides a rated ultimate short‑circuit breaking capacity (Icu) of 60 kA and a rated service short‑circuit breaking capacity (Ics) of up to 60 kA for higher voltage classes, with higher Ics values available at lower voltages (up to 200 kA at 220–230 V). This makes it suitable for demanding fault conditions in industrial feeders.
Yes. With 4P configuration, 800 A rated current, front-terminal wiring, and PR231/P‑I release, this MCCB is designed for motor protection and feeders in switchgear and MCCs. Its compatibility with the SACE Tmax T family supports scalable protection strategies and consistent performance across new and retrofit motor control installations.
The device complies with IEC standards, carries a CE declaration of conformity, and supports RoHS compliance plus CMRT reporting. Additional declarations include TSCA where applicable and WEEE packaging information, aiding global procurement, sustainability reporting, and regulatory conformity.
Durability specs show mechanical 10,000 cycles and electrical 3,000 cycles at 60 cycles/hour, with 32 W per pole power loss. This combination reduces maintenance frequency and replacement costs while improving uptime, yielding a favorable return on investment in continuous‑operation facilities and high‑demand production lines.
